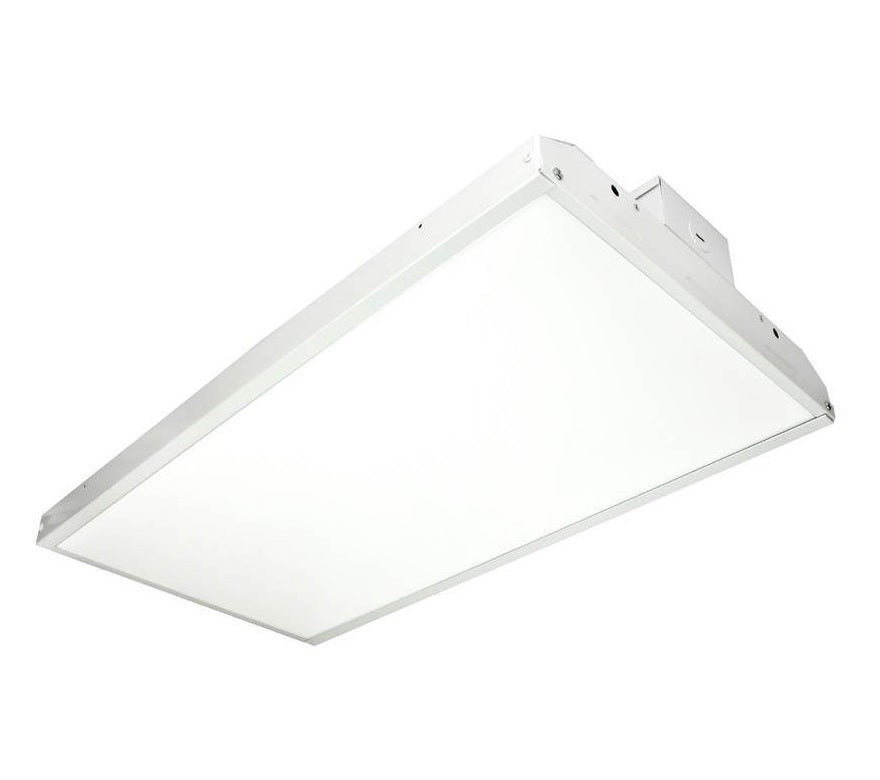

Maxlite BLHE3 DLC Premium Baymax ECO Series LED Linear High Bay Fixture Gen 3 Dimmable - While Supplies Last
Maxlite BLHE3 DLC Premium Baymax ECO Series LED Linear High Bay Fixture Gen 3 Dimmable - While Supplies Last
-
Specsheet:
Specifications
Specifications
| Part Number# | BLHE3 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Large Retail & Open Areas, Commercial Offices, Factory / Industrial, Retail |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 8,450 - 40,800 |
| Wattage: | 300 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, DLC Premium, FCC Compliant, ROHS |
| CRI: | ≥ 80 |
| Dimensions: | See Product Options |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 9.81 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Maxlite's Eco High Bay Series stands out as an economical and high-quality lighting solution tailored for diverse commercial and industrial settings. This dimmable and compact product offers a robust lumen output, serving as an efficient replacement for traditional fluorescent and HID high bay fixtures. With features such as suitability for damp locations, an operating temperature range from -20°C to 50°C (-4°F to 122°F), L70 lumen maintenance of 100,000 hours, a translucent lens to minimize glare, and standard chain mounting, alongside additional mounting options, including 0-10V dimming, it provides a versatile and reliable solution for diverse lighting requirements.
Features:
• 120-277V standard, 347-480V available
• Dimmable down to 10% (0-10V dimming)
• Frosted lens standard
• Surface or suspension mounted
• V-hook and 40” knotted chain included in the standard model
• Suitable for damp locations
• Operating humidity 10% to 80% RH non-condensing
• Cord and Plug options available for standard models
• Lens material is PMMA (Polymethylmethacrylate)
• L70 lumen maintenance of 100,000 hours, L90 to meet DLC Premium
• On EM mode, the fixture output a minimum of 1200 lumens for 90 minutes, when fully charged
• MS models with PIR motion sensor available (must purchase remote separately for commissioning)
