Maxlite AE100 Wattage and Color Selectable AE Switch LED Area Light 250W Equivalent
Maxlite AE100 Wattage and Color Selectable AE Switch LED Area Light 250W Equivalent
-
Specsheet:
Specifications
Specifications
| Part Number# | AE100 |
|---|---|
| Type of Area: | Pole / Street / Parking Lot |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 10,950 - 16,550 |
| Wattage: | 100 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 250W HID Equivalent, CUL Listed, Dimmable, DLC Premium, FCC Compliant, IP65 / IP66 / IP67, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 25.20" x 10.60" x 3.20" |
| Width: | 10.60" |
| Length: | 25.20" |
| Height: | 3.20" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Weight Each: | 10.09 - 12.86 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

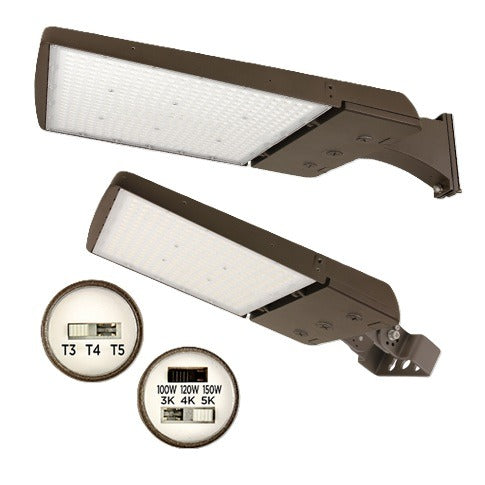

Maxlite's AE100 AE Switch LED Area Light is a highly versatile and efficient solution designed to replace 250W HID fixtures. With selectable wattage, CCT (3000K/4000K/5000K), and optics (Type III, IV, and V), it adapts easily to a wide range of outdoor lighting applications. It supports both 120-277V and high-voltage 277-480V inputs, offers robust 6kV/10kA surge protection (upgradeable to 20kA), and integrates with c-Max or twist-lock controls for advanced functionality. Featuring toolless housing access, multiple mounting options, and ANSI 3G vibration resistance, the AE100 combines performance, durability, and flexibility in one cost-effective package.
Features:
• Changeable Optics: Type 3, 4 and 5
• CCT selectable between 3000/4000/5000K
• Wattage selectable
• c-Max and/or twist lock receptacle control options
• Universal 120-277V standard, High Voltage 277-480V option
• Robust surge protection - 6kV + 10kA standard with 20kA option
• Toolless housing access for easier maintenance
• Variety of mountings - Arm, Slipfitter and Trunnion
• ANSI 3G vibration rated
• TAA compliance available
