LSI Industries TRK FS1 Series Field Selectable LED Troffer Retrofit Kit Gen 2 Dimmable
LSI Industries TRK FS1 Series Field Selectable LED Troffer Retrofit Kit Gen 2 Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | TRK |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Commercial Offices, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,400 - 4,200 |
| Wattage: | 31 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, UL Listed, Title 24 Compliant |
| CRI: | 80 |
| Width: | 11.87" - 23.75" |
| Length: | 23.75" - 47.75" |
| Height: | 3" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 7.2 - 7.8 lbs |
| Manufacturer: | LSI Lighting |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits Input:
LSI Industries' TRK FS1 Series features a durable 22-gauge cold-rolled sheet metal construction with a post-painted finish for a high-quality appearance. It is designed for easy installation with a hinge mechanism that requires minimal assembly. The acrylic lens ensures optimal color stability, and the fixture operates within a temperature range of 0ºC to 40ºC (40ºF to 104ºF). Available in 1’x4’ and 2’x2’ sizes, it offers versatility for various applications.
Features:
Construction
• Cold-rolled sheet metal 22 gauge.
• Post-painted for high-quality finish.
• Hinge mechanism for quick installation with minimal assembly.
• Acrylic lens material for optimal color stability.
• Operating temperature: 0ºC - 40ºC (40ºF - 104ºF).

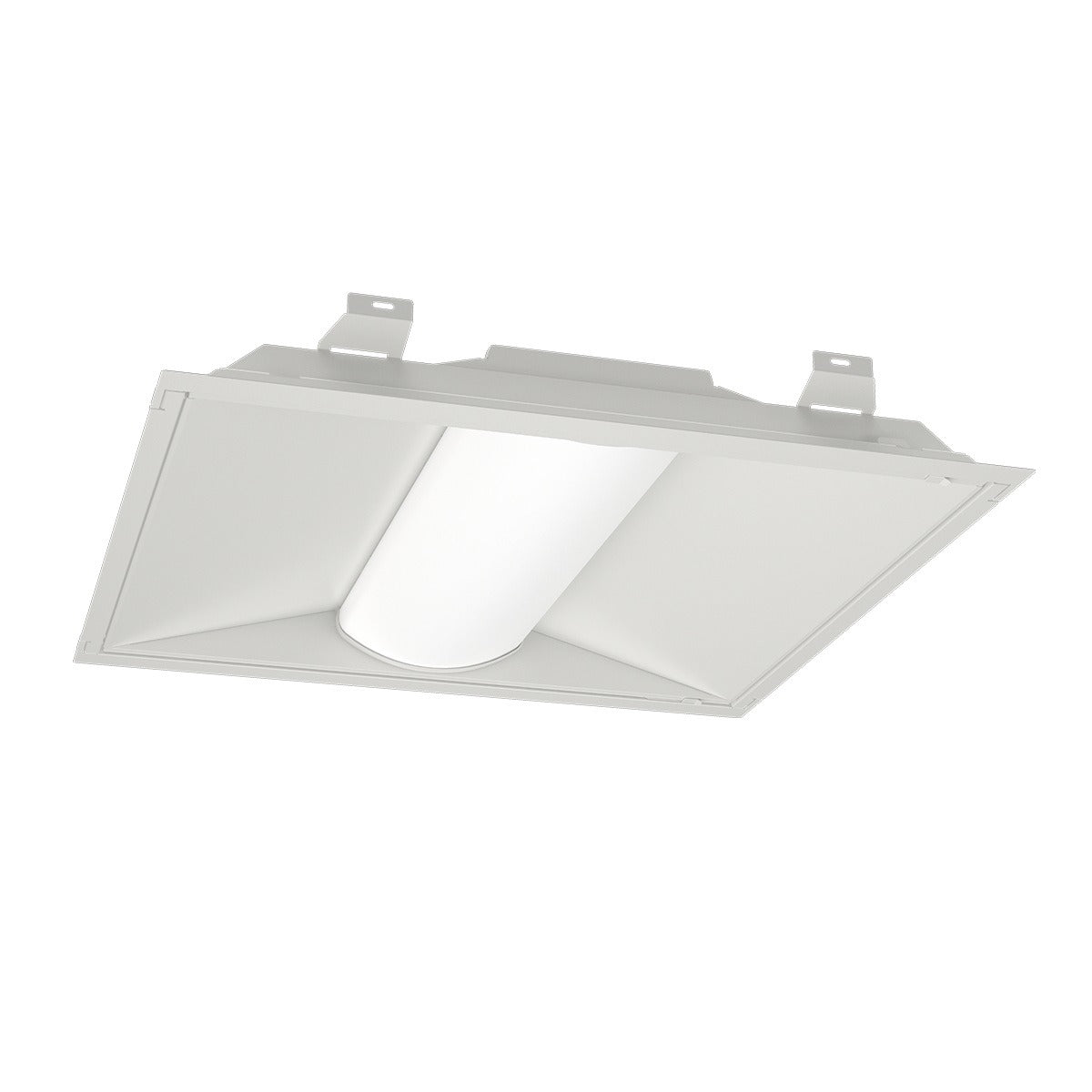

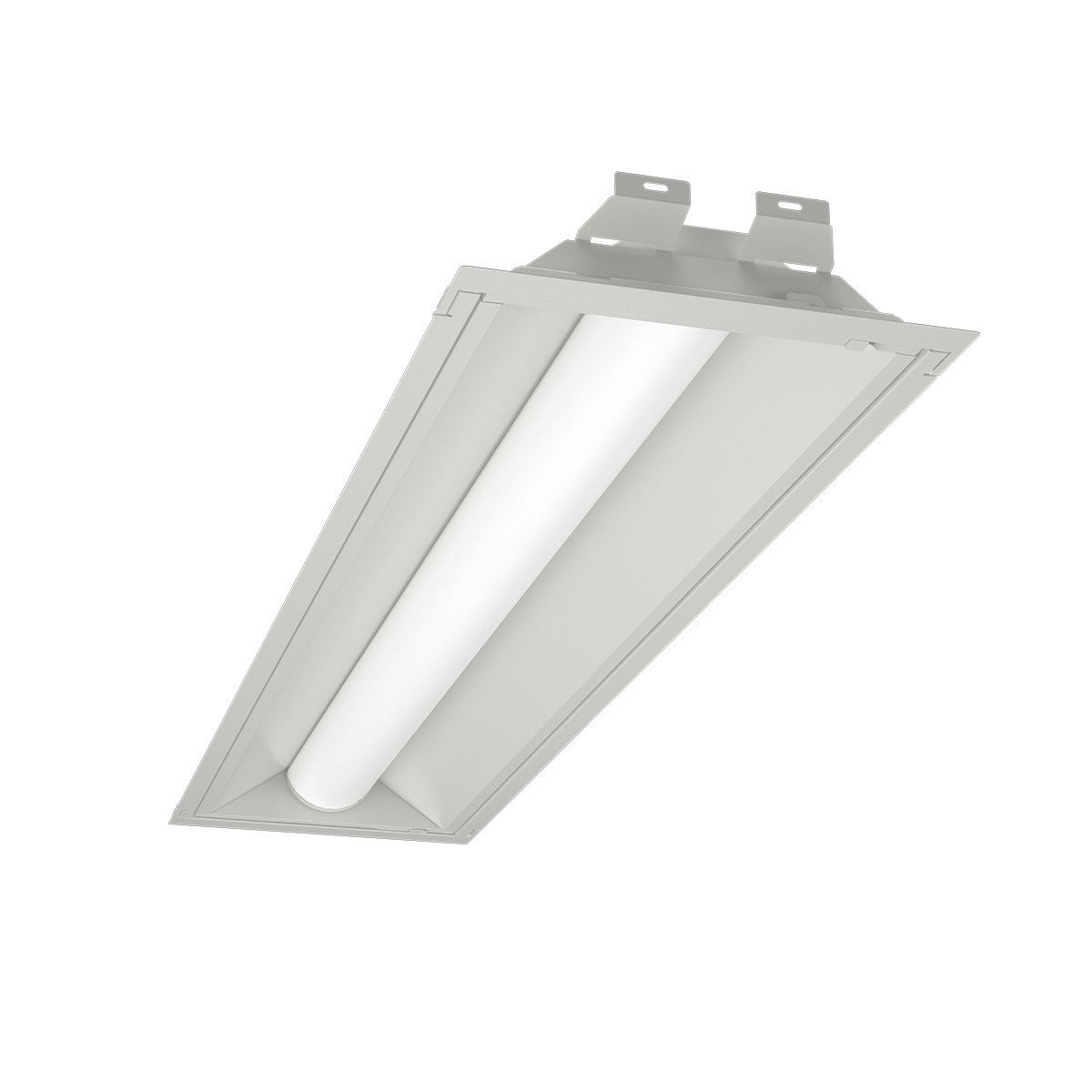

• 1’x4’ or 2’x2’ form factors.
Optical System
• LEDs tightly spaced to avoid pixelation.
• Selectable or fixed CCT configurations per ANSI C78.377.
• Diffuse Acrylic cover lens for glarefree, uniform luminance, and high visual comfort.
• L70 Calculated Life: >60k hours (See Lumen Maintenance table).
Electrical
• Class 2 driver features over-voltage, under-voltage, short-circuit and overtemperature protection.
• 0-10V dimming standard.
• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz.
• Selectable or fixed power configurations.
• Power factor (PF): > 0.90.
• Total harmonic distortion (THD): <20%.
• Optional factory integrated or remote battery backup for standby lighting (90min.).
Controls
• 0-10V dimming standard.
• Compatible with most 0-10V dimmers.
• Available with LSI AirLink® Blue for networked controls.
• See controls table for more information.
Installation
• Suitable for retrofitting fluorescent troffers.
• Tether cables for secondary retention.
Warranty
• LSI luminaires carry a 5-year limited warranty. Refer to https://www.lsicorp. com/resources/terms-conditionswarranty/ for more information.
Listings
• Listed to UL 1598 and UL 8750.
• DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
• Title 24 Compliant; see local ordinance for qualification information.
• Suitable for damp locations.
• TAA Compliant. (Consult factory. Not all TRK meet this requirement)
