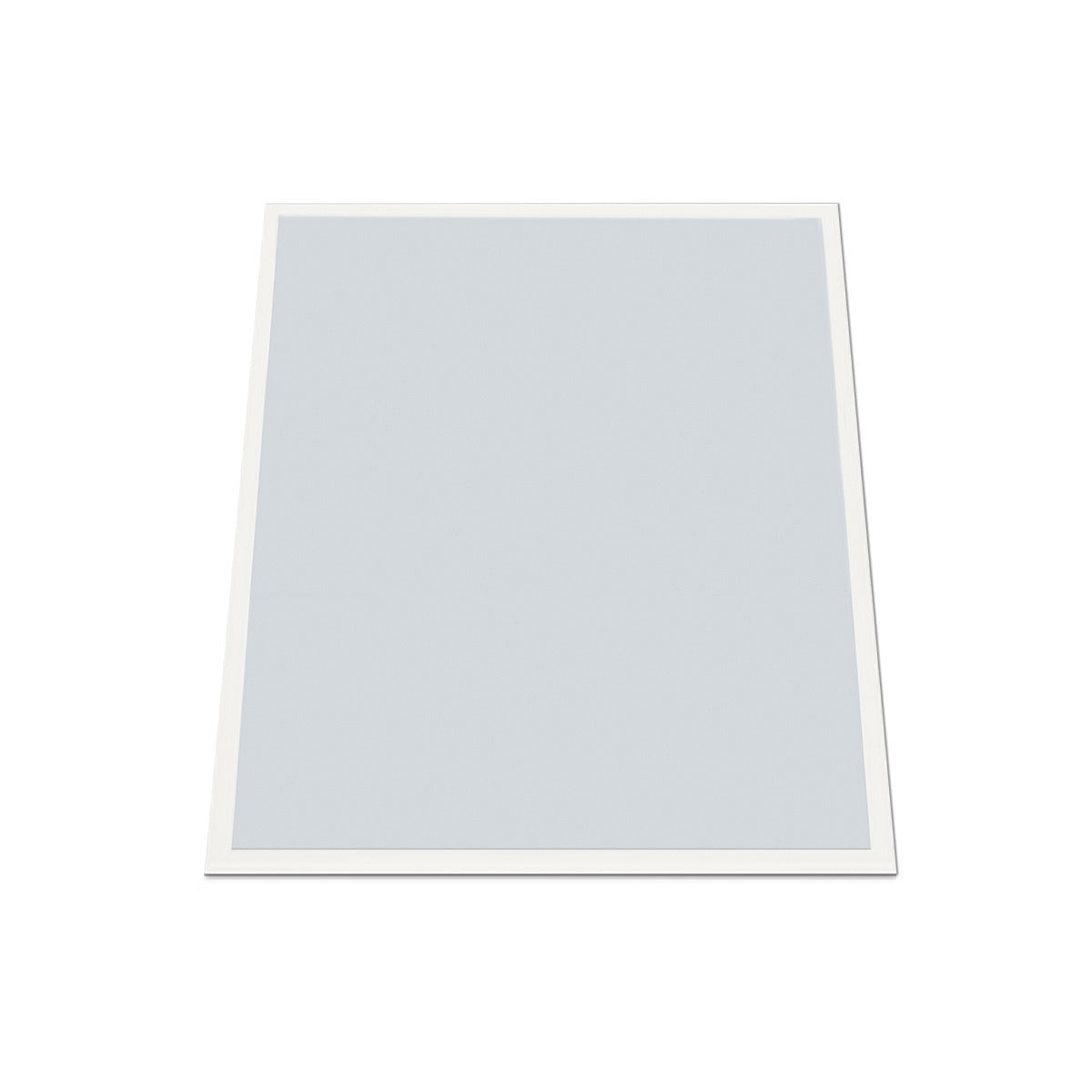

LSI Industries SFP FS Series Field Selectable LED Edge-Lit Troffer Retrofit Kit Gen 2 Dimmable
LSI Industries SFP FS Series Field Selectable LED Edge-Lit Troffer Retrofit Kit Gen 2 Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | SFP |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Commercial Offices, Education, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 3,033 - 5,601 |
| Wattage: | 45 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, FCC Compliant, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | See Product Options |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -13 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 9.2 - 16.53 lbs |
| Manufacturer: | LSI Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
LSI ultra-thin, edge-lit LED panel series offers customizable lumen output and color temperature (CCT), making it ideal for indoor spaces like schools, offices, and retail stores. Its field-selectable features allow for easy adjustments before, during, or after installation, providing flexibility for various lighting needs. With compatibility for both grid ceilings and drywall, long-life illumination, and energy-saving 0-10V dimming, it’s a versatile choice for new constructions or retrofits. The optional AirLink Blue controller further enhances energy savings and code compliance through grouping and sensor pairing.
Features:
Construction
• Fixture backplate includes integral T-bar clips for installation onto standard 15/16” T-grid ceiling or 9/16” narrow T-grid with optional kit.
• Optional surface mount, flange, and suspended kits available.
Optical System
• Laser-etched PMMA Light Guide Plate for uniform lighting
• 120° beam angle provides high vertical illumination.
• Available in 5000K, 4000K, and 3500K available in the same unit with selectable switch.
• Minimum CRI of 80.
Electrical
• Preset at 3500K and highest wattage. Selections can be changed in the field.
• 0-10 volt dimming (10% - 100%) standard.
• Standard Universal Voltage (120-277 Vac) Input 50/60 Hz.
• L70 Calculated Life: >50k Hours
• Total harmonic distortion: <20%
• Operating temperature: -25°C to +45°C (-13°F to +113°F)
• Power factor: >.90
• Optional 120v-277v integral battery pack is available. The 90-minute batteries provide constant power to the LED system. A remote test switch/indicator button is installed in the housing for ease of maintenance.
Controls
• Available with AirLink™ Blue. AirLink Blue (ALB) is a low-power wireless Bluetooth mesh control system. ALB provides significant energy savings while ensuring code compliance and security.
• The optional integrated AirLink Blue fixture controller (ALBC) is used to dim the fixture based on motion or daylight levels continually monitored by external ALB sensors
• Available with 3rd party controls. Check out the ordering guide for compatibility.
Warranty
• Complete warranty terms located at: https://www.lsi-industries.com/resources/ terms-and-warranty.aspx.
• 1-Year warranty on optional Battery Backup. Test regularly in accordance with local codes. Listings
• Listed to UL 1598 and UL 8750.
• RoHS Compliant.
• DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC-qualified. Please check the DLC Qualified Products List at www.designlights. org/QPL to confirm which versions are qualified.
• Suitable For Damp Locations.
