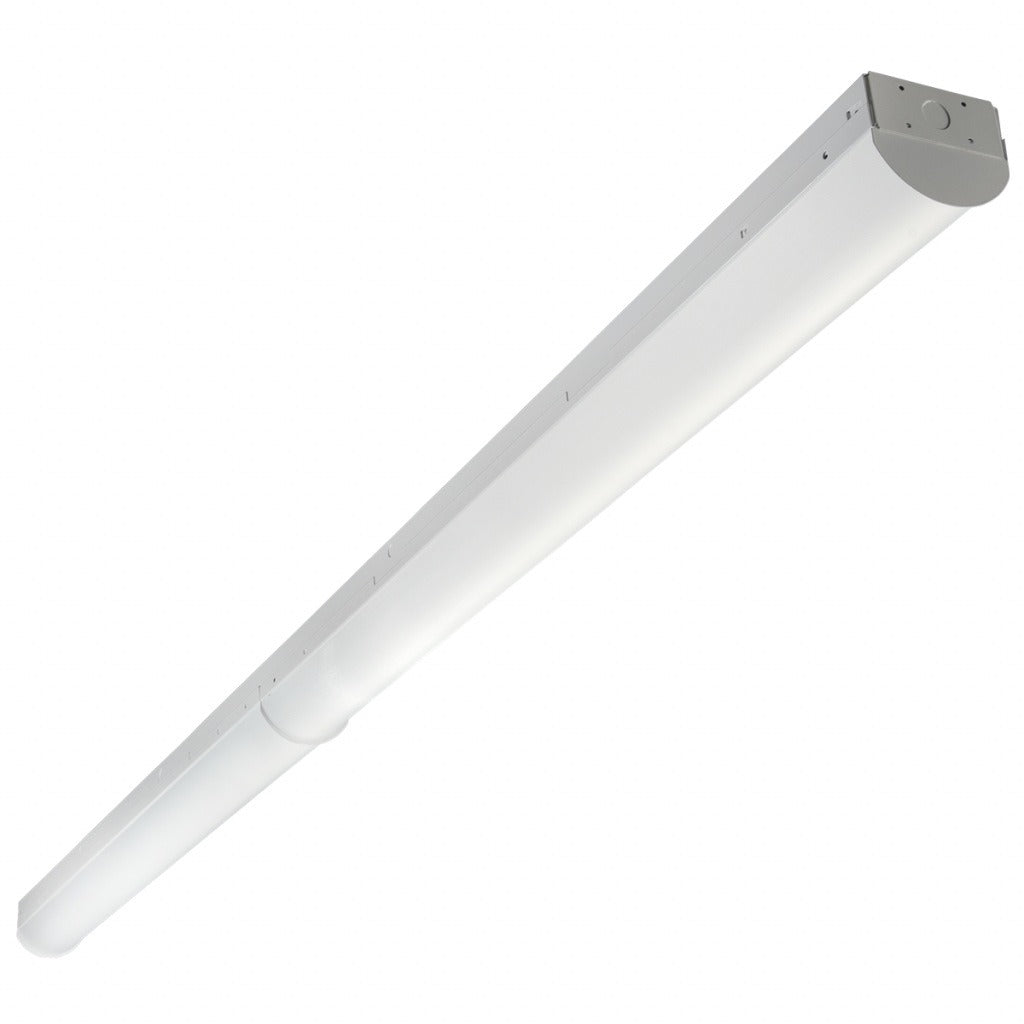

LSI Industries SDL8 8-Foot LED Diffused Lens Strip Light Fixture Dimmable
LSI Industries SDL8 8-Foot LED Diffused Lens Strip Light Fixture Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | SDL8-LED |
|---|---|
| Type of Area: | Commercial Offices, Retail |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 6,885 - 19,334 |
| Wattage: | 140 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, Made In America Compliant, UL Listed, Title 24 Compliant |
| CRI: | >80 |
| Dimensions: | 95.947" x 4.379" x 1.897" |
| Width: | 4.379" |
| Length: | 95.947" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 18 lbs |
| Manufacturer: | LSI Lighting |
| Technology: | LED - New Fixture |
| Fixture Length: | 8 Feet / 96 Inches |
Details
Details
ShineRetrofits Input:
LSI SDL8 8-Foot LED Diffused Lens Strip Light is designed with toolless entry features, making installation quick and cost-effective. It utilizes Industry LED technology for high performance and efficiency and offers a frosted lens for optimal vertical illumination with various color temperatures. The fixture includes programmable drivers with expansive lumen packages and standard 0-10V dimming. It is suitable for various applications and features flexible mounting options and an optional pre-wired plug-in assembly for continuous row installation.
Construction
• Rigid housing is die-formed 22-gauge cold rolled steel
• Mount individually or in continuous rows with optional plug assembly kits
• Tool-less wireway access with removable lens and light engine
• Luminaire is painted after fabrication following treatment with phosphate rust inhibitor. Finish coat of housing is high reflectance white (minimum 92%) polyester powder.
Optical System
• High transmission custom extruded frosted acrylic radius lens eliminates bright spots from individual LED’s and provides high vertical illumination and visual comfort.
• Minimum CRI of 80.
Electrical
• High-performance driver features overvoltage, under-voltage, short-circuit and over-temperature protection.
• 0-10V dimming (10% - 100%) standard.
• Standard Universal Voltage (120-277 VAC) Input 50/60 Hz or optional 347.
• L70 Calculated Life: >60K hours.
• Total harmonic distortion: <20%.
• Operating temperature: -30°C to +50°C (-22°F to +122°F).
• Power factor: >.90.
• Optional 120-277V 10W integral emergency battery backup is available to meet critical life-safety lighting requirements. A test switch/indicator button will be installed on the housing.
Controls
• Optional external passive infrared motion and photocell sensor.
• Optional step-level dimming driver allows system to be switched to 50% power.
Installation
• Surface mounting is standard. Chain, pendant, and grid mounting options available with accessories.
• Accepts optional plug-in wiring feature for continuous row installation.
Warranty
• LSI luminaires carry a 5-year limited warranty
Listings
• Listed to UL 1598 and UL 8750.
• Suitable for damp locations
• Meets Buy American Act requirements.
• Title 24 Compliant; see local ordinance for qualification information.
• DesignLights Consortium® (DLC) Premium qualified product.
