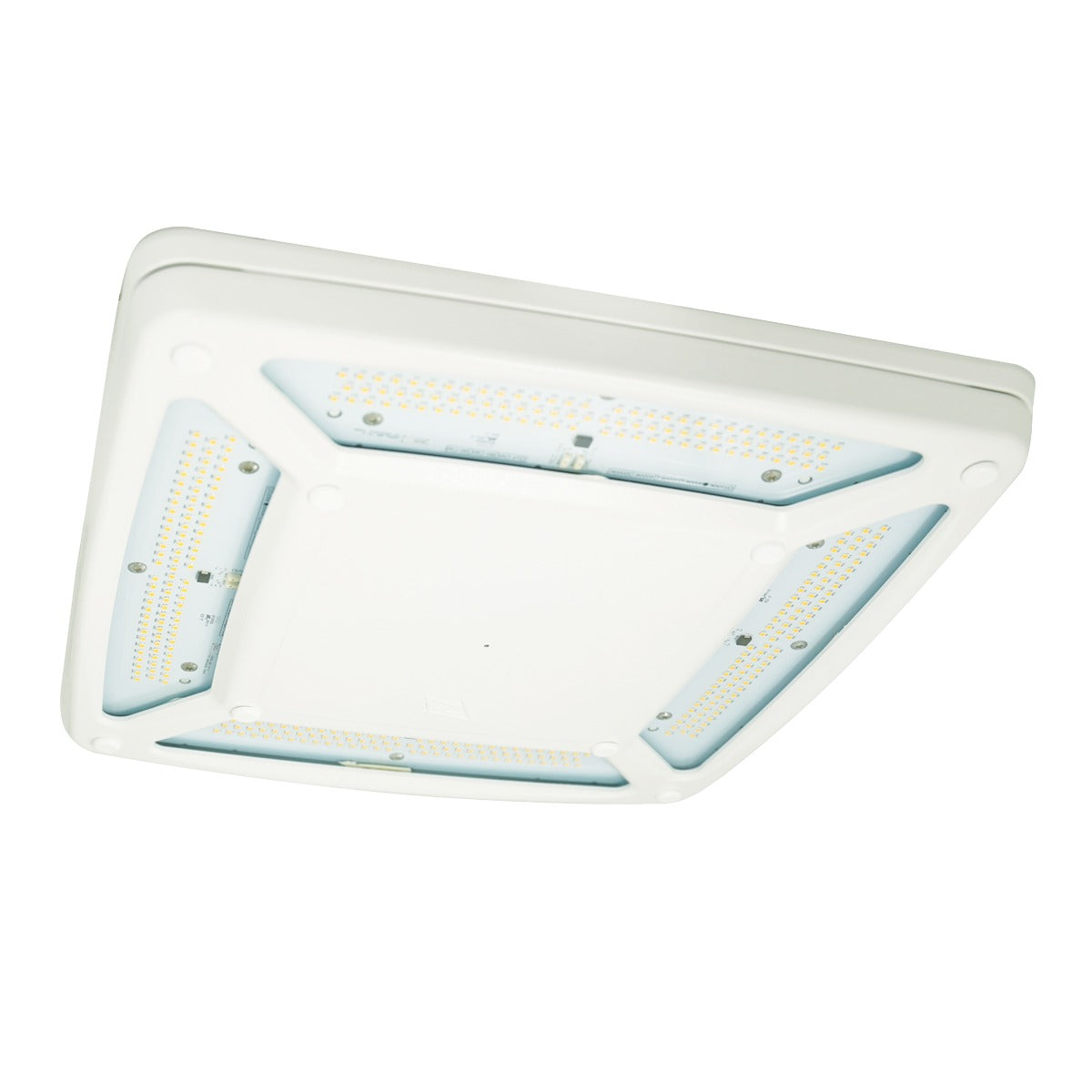

LSI Industries SCV Scottsdale Vertex Petroleum Canopy LED Light Fixture Dimmable
LSI Industries SCV Scottsdale Vertex Petroleum Canopy LED Light Fixture Dimmable
Specifications
Specifications
| Part Number# | SCV-LED |
|---|---|
| Type of Area: | Gas Station & Convenience Store |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 13,000 - 20,000 |
| Wattage: | 130 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium, IP65 / IP66 / IP67, Made In America Compliant, UL Listed, Title 24 Compliant |
| CRI: | >80 |
| Dimensions: | 13.5" x 13.5" x 2" |
| Width: | 13.5" |
| Length: | 13.5" |
| Height: | 2" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 14 lbs |
| Manufacturer: | LSI Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
LSI Industries SCV Scottsdale Vertex is an advanced LED canopy light fixture, perfect for petroleum stations and convenience stores. It features a rugged low-profile die-cast aluminum housing with IP66 rating for dust and water protection. The symmetric combination forward throw optic eliminates the need for extra flood lights, providing efficient and cost-effective lighting. With 0-10V dimming, Bluetooth™ motion and photocell sensor options, and a 5-year limited warranty, this fixture ensures excellent performance and durability.
Features:
• Rugged low-profile die-cast aluminum housing, optical unit, and driver cover
• IP66-rated luminaire protects integral components from dust and water.
• Symmetrical distribution utilizes a clear tempered flat glass lens to uniformly illuminate the area under the gas canopy
• Combination Forward Throw distribution uses clear tempered flat glass and optical grade PMMA acrylic lens to create an industry-leading unique distribution pattern
• High-performance factory programmable driver; features include over-voltage, undervoltage, short circuit and over-temperature protection.
• Custom lumen and wattage packages available.
• 0-10V dimming (10% - 100%) standard.
• Designed for lighter than air fuel applications. Product is suitable for Class 1 Division 2 with all lumen packages and distributions only when properly installed per LSI installation instructions.
• 5-year limited warranty
• Meets Buy American Act requirements.
