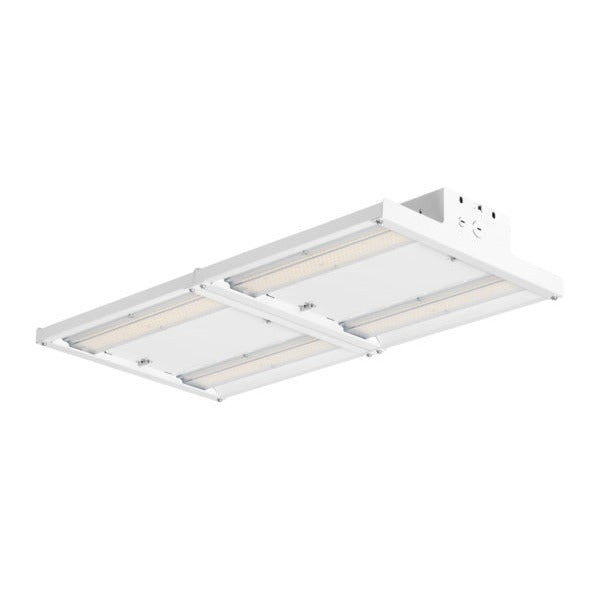

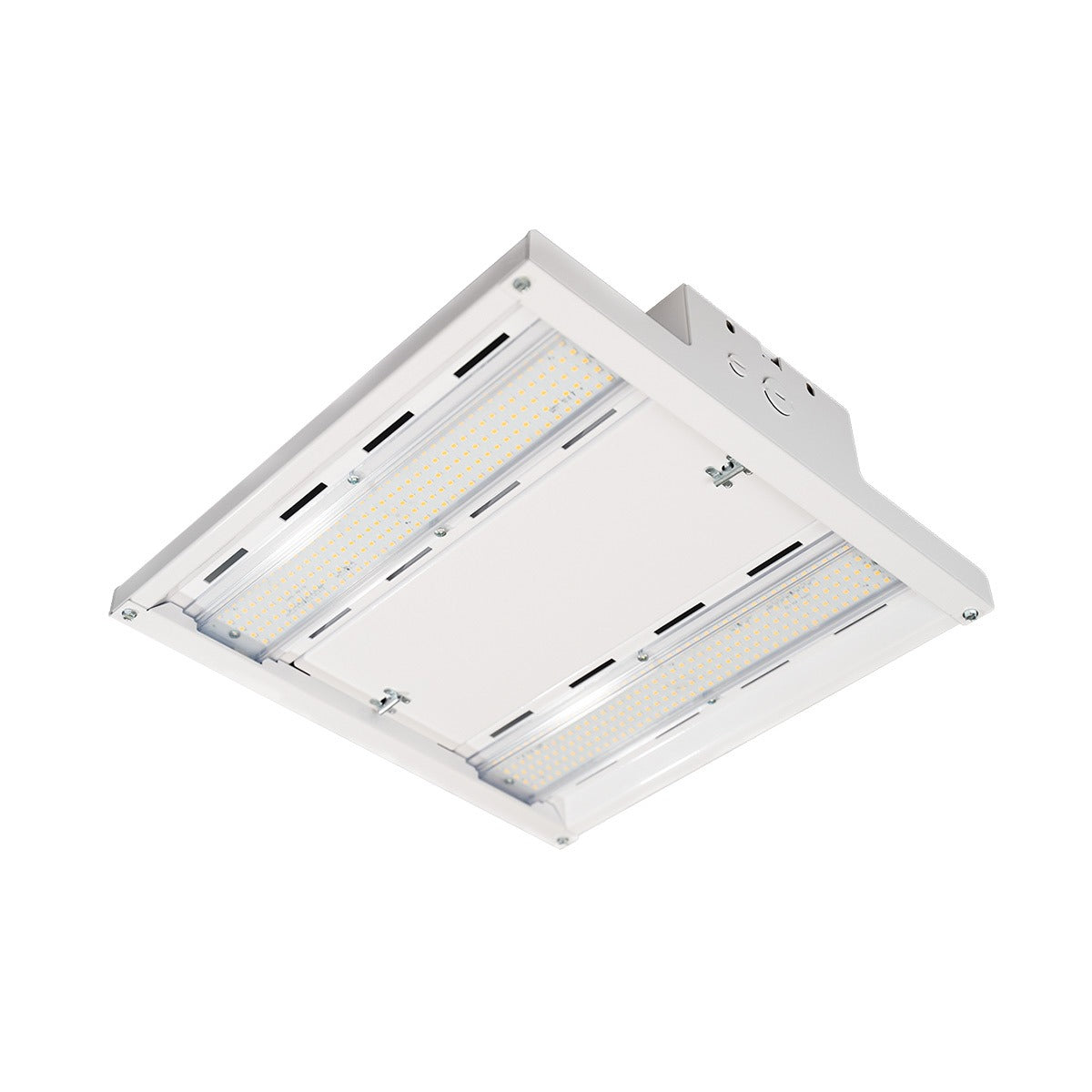

LSI Industries MHB Series LED Industrial and Warehouse Modular High Bay Light Fixture Dimmable
LSI Industries MHB Series LED Industrial and Warehouse Modular High Bay Light Fixture Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | MHB |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Factory / Industrial |
| Lamp Life: | 200,000 Hours |
| Lumen Output: | 12,000 - 60,000 |
| Wattage: | 360 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, ROHS, UL Listed, Title 24 Compliant |
| CRI: | >80 |
| Width: | 14" |
| Length: | 13.66" - 27.32" |
| Height: | 3.22" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -30 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 7.5 - 22.5 lbs |
| Manufacturer: | LSI Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
LSI MHB Series Modular LED Industrial and Warehouse High Bay Light Fixture is a versatile and high-performing lighting solution. Available in both 4000K and 5000K, it comes in single and double modules with various lumen packages. It offers field installed mounting option and occupancy sensors. Constructed from 14 gauge die-formed aluminum with a post-paint polyester coat finish. It also comes with an optional optic lens, it is UL listed, damp location suitable, and California Title 24 compliant.
Features & Specifications:
• Available in 4000K or 5000K
• Available in Single (12L, 15L, 18L, 24L and 30L) and Double Module (30L, 36L, 48L and 60L) Lumen Package
• Field Installed Mounting Option
• Optional controls and sensors available
• Optional integral Bluetooth PIR motion and photo sensor up to 40ft
• Constructed from 14 gauge die formed aluminum with a post-paint polyester coat finish
• Available in Clear Polycarbonate Wide, Diffuse Polycarbonate Wide and Clear Polycarbonate Narrow Optic Lens
• List for UL 1598 and UL 8750
• Suitable for damp locations
• State of California Title 24 compliant
• DLC qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
