ShineRetrofits Input:

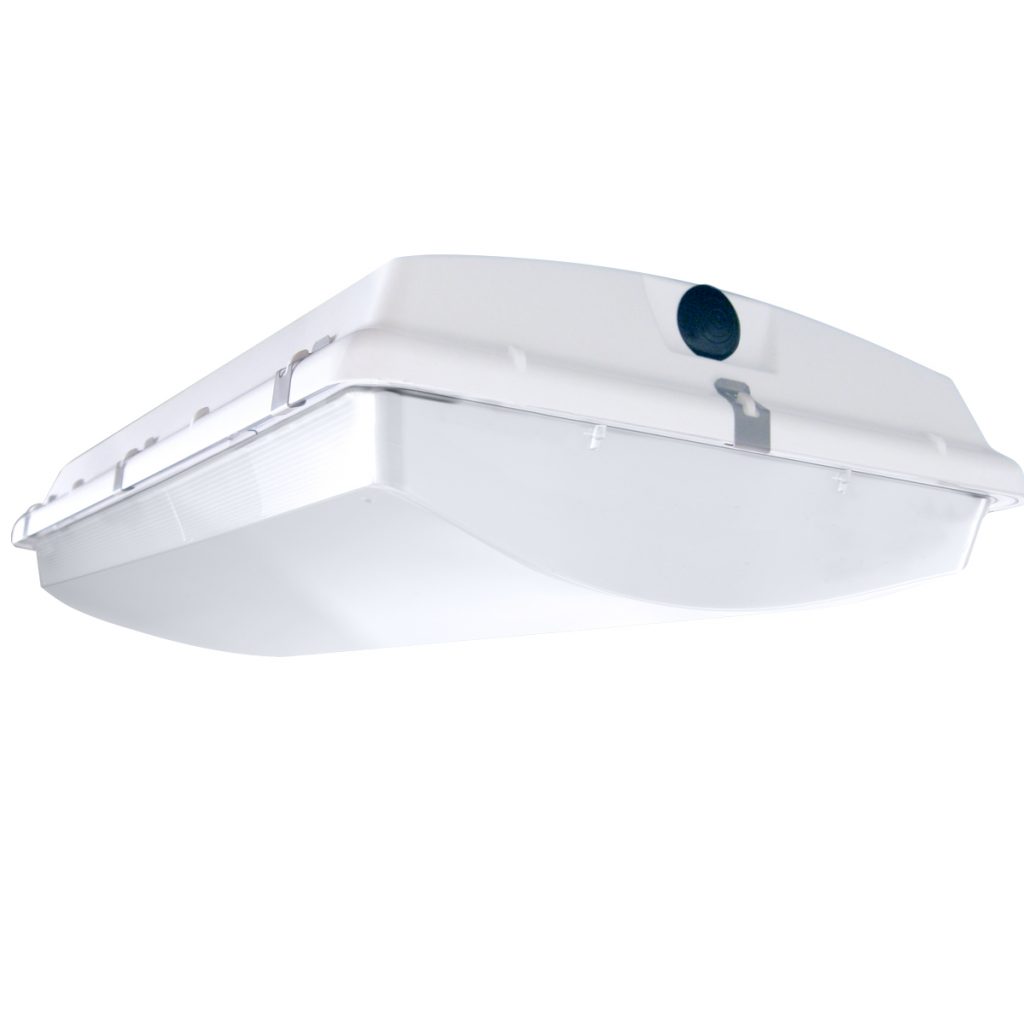

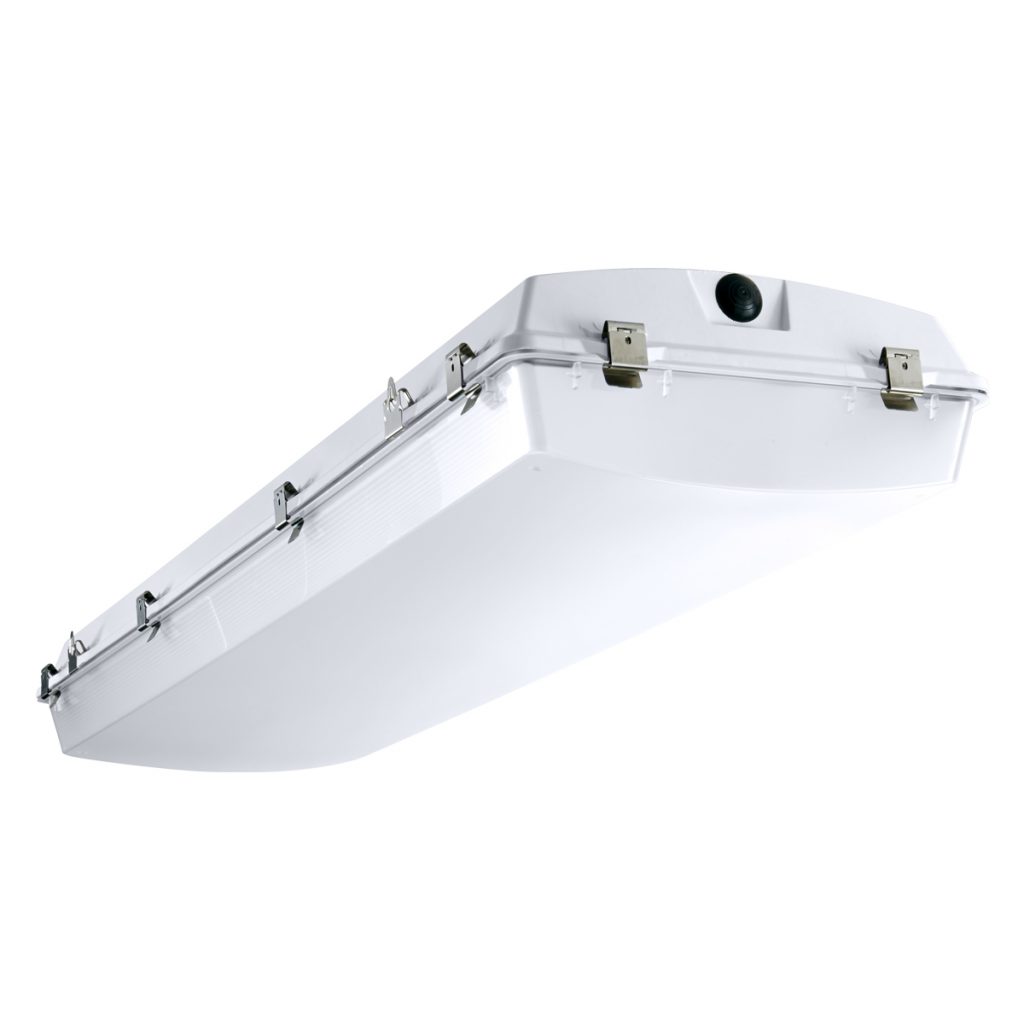

LSI EGW Series Wide Enclosed and Gasketed LED Linear Light Fixture with Diffuse Acrylic Lens offers excellent lighting in heavy-duty, high-impact reinforced fiberglass housing. With 2’ and 4’ gasketed designs, it's ideal for utility, backroom, and cooler applications. The sloped housing design promotes water displacement, and the fixture features a snap-out gear tray for easy driver access. Certified to IP65, IP66, and IP67 standards, the EGW Series comes with a 5-year limited warranty, ensuring durability and reliability.

Construction:
• Fiberglass reinforced plastic housing with internal closed-cell polyurethane structure gasketing
• Polymeric housing provides IP65/IP66/IP67 ingress protection and superior
chemical resistance
• Inner gear tray constructed of code gauge steel with a finish coating of high reflectance polyester powder (min. 92%)
• High-pressure hose down (1500 PSI)
• NEMA 4x rated
• Hinged gear tray for easy driver access
• Optical System
• Injection molded acrylic lens with high impact additive
• Smooth lens is available in diffuse and clear
• Minimum CRI of 80

Electrical:
• High-performance driver features overvoltage, under-voltage, short-circuit and over temperature protection. Custom lumen and wattage packages available. Standard Universal Voltage (120-277 VAC) Input 50/60 Hz or optional 347V.
• Total harmonic distortion (THD): <20%
• Operating temperature: -35°C to +45°C (-31°F to +113°F)
• Power factor (PF): >.95
• Driver module is sealed to IP65, IP66, and IP67 standards with a Class A sound rating and 0-10V dimming (10%-100%) standard
• 0-10V dimming (10%-100%) standard
• Standard Universal Voltage (120-277 Vac) Input 50/60 or optional High Voltage (347- 480V)
• L70 Calculated Life: >200K hours

Controls:
• Controls Options include:
- Simple Sensor PIR end mount motion sensor available (OMSWL)
- Airlink Blue integral controller (ALBC) or integral controller with microwave sensor (ALBCMWS).

Installation:
• 2 standard stainless steel mounting brackets are furnished with each fixture
• Optional stainless steel V bracket or surface bracket accessory available

Warranty:
• LSI luminaires carry a 5-year limited warranty

Listings:
• Suitable for wet locations
- Unit is IP65, IP66, and IP67 rated
• NEMA 4x rated enclosure
• NSF rated (Splash Zone 2)
• Listed to UL 1598 and UL 8750.
• Meets Buy American Act requirements.
• Title 24 Compliant; see local ordinance for qualification information.
• DesignLights Consortium® (DLC) Premium qualified product. Not all versions of this product may be DLC Premium qualified.
