Louvers International LAL08 Series Raptor LED Area Light – Dimmable, Adjustable Color Temp
Louvers International LAL08 Series Raptor LED Area Light – Dimmable, Adjustable Color Temp
Specifications
Specifications
| Part Number# | LAL08 |
|---|---|
| Type of Area: | Pole / Street / Parking Lot, Schools, Road & Street |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 9,400 - 46,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 1000W HID Equivalent, CUL Listed, Dimmable, DLC Premium, LM79 / LM80, UL Listed |
| CRI: | 70 |
| Dimensions: | See Spec Sheet |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 9.10 - 17.65 lbs |
| Manufacturer: | Louvers International |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

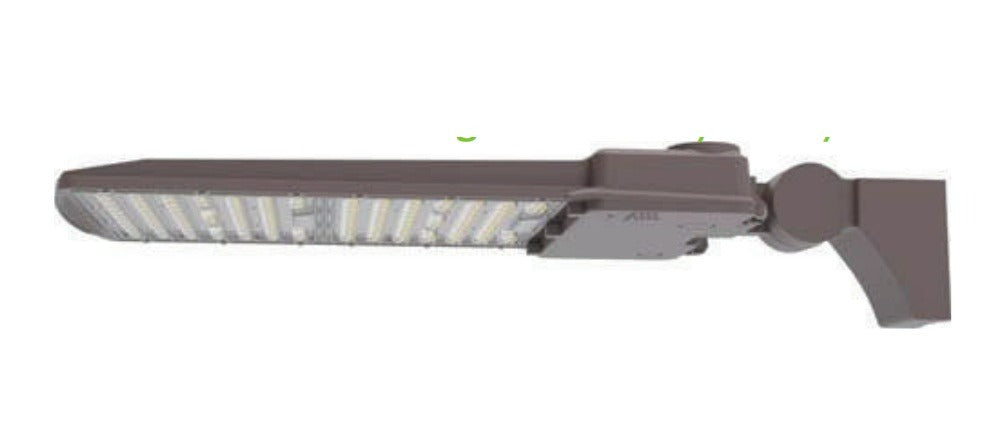

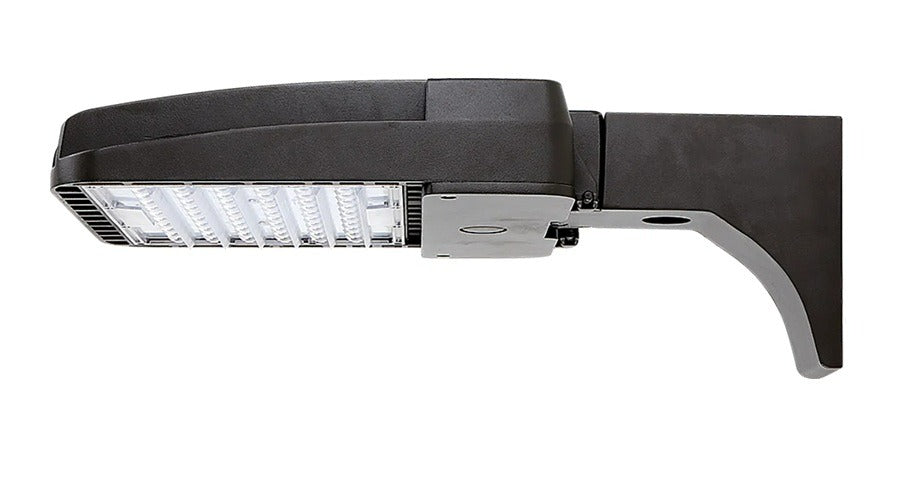

The Louvers International LAL08 Series LED Raptor Area Lighting Fixture delivers powerful, energy-efficient illumination with adjustable color temperature options. Built with a rugged, die-cast aluminum housing and advanced convection cooling, it ensures long-lasting durability and performance. Designed for mounting heights from 26 to 50 feet, it replaces up to 1000W metal halide fixtures with lumen packages from 6,600 to 61,000 lumens. This DLC Premium and UL Wet Location listed fixture offers multiple distribution patterns (Type II, III, IV, V) and versatile mounting options, making it ideal for parking lots, streets, and outdoor area lighting.
Features:
• The rugged, one-piece die-cast aluminum housing features a complete heat sink that optimizes heat dissipation through convection cooling management
• Low profile, 3G vibration-rated compact design minimizes wind load requirements
• Housing is completely sealed against moisture and environmental contaminants
• Universal 120-277 VAC or 347-480 VAC input voltage
• Suitable for mounting heights ranging from 26-50ft in area lighting applications
• Scalable Lumen Packages from 6,600 to 61,000 Lumens replace up to 1000W Metal Halide
• Round pole, square pole, slip fitter, wall mount, and yoke are available
• Ambient operating temperature -40°C to 40°C (-40°F to 104°F)
• Various distribution patterns: Type II, Type III, Type IV, and Type V
• The optics can conform to the Dark Sky requirement
• UL Wet location listed
• DLC Premium Qualified
