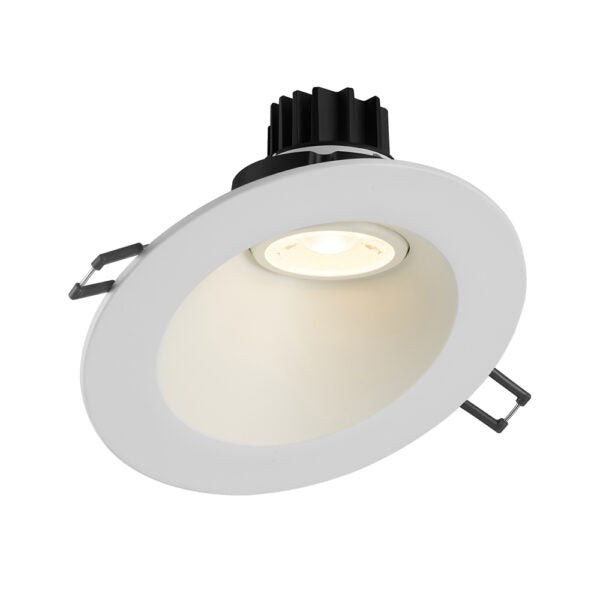

Lotus LRG3-4RSL 7.5 Watt 4-Inch LED Sloped Round Regressed Gimbal Fixture Dimmable Replaces 50W Halogen
Lotus LRG3-4RSL 7.5 Watt 4-Inch LED Sloped Round Regressed Gimbal Fixture Dimmable Replaces 50W Halogen
Specifications
Specifications
| Part Number# | LLL-LRG3 |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Office & Small Retail, Schools, Hotels, Hospitals, Service Counters, Commercial Offices, Education, Hospitality, Retail |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 500 - 650 |
| Wattage: | 7.5 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 10 Year Warranty, CUL Listed, Energy Star, UL Listed, Title 24 Compliant |
| CRI: | 90+ |
| Dimensions: | ID 4.5" OD 5.75" x 3" |
| Length: | ID 4.5" OD 5.75" |
| Height: | 3" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120V |
| Manufacturer: | Lotus LED Lights |
| Technology: | LED |
Details
Details
ShineRetrofits Input:

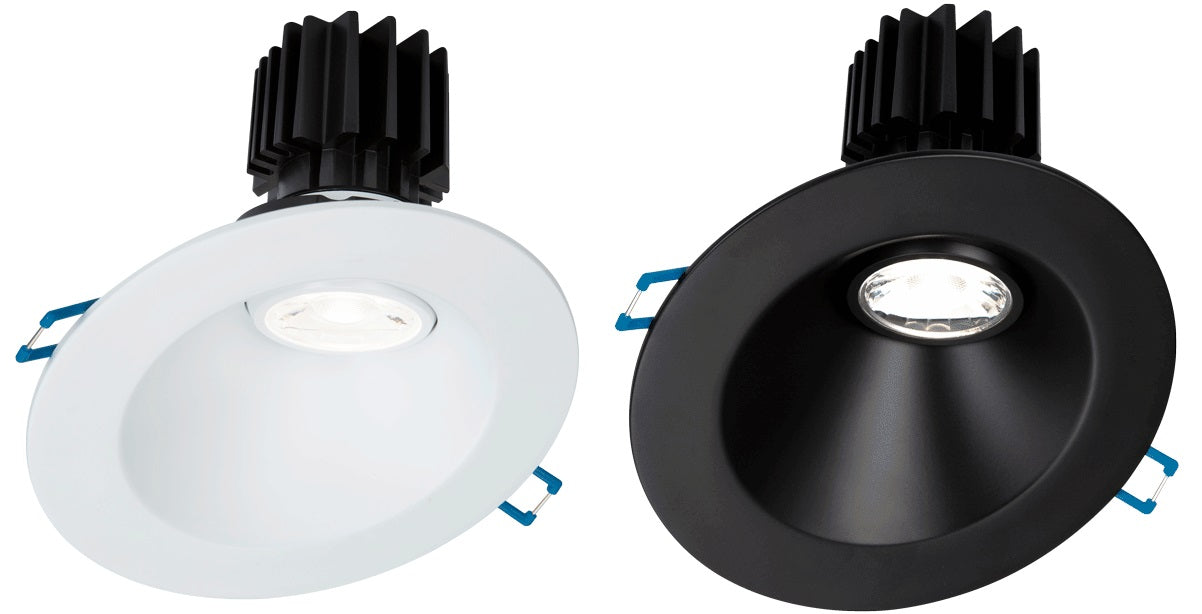

Lotus 4-inch 7.5W LED Sloped Round Regressed Gimbal Fixture is an efficient replacement for 50W halogen lights, designed specifically for sloped ceilings and wall washing applications. It features a 30° sloped trim and 20° tilt, making it suitable for ceilings with a pitch between 5° and 55°. The fixture is Type IC rated, allowing for direct contact with insulation, and is approved for air-tight, wet location, insulated, and non-insulated ceilings. With a high CRI of 90+ for true color rendering, this dimmable fixture offers various light options, including 2700K to 5000K, Dim To Warm, and 5CCT, and comes with a 10-year warranty for residential installations and a 5-year warranty for commercial use.
Features:

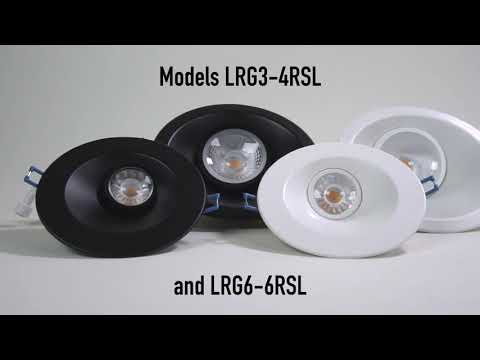

• Models: 7.5W LRG3-4RSL, 11W- LRG3-HO-4RSL
• 30° Sloped Trim & 20° Tilt – Ideal for Wall Washing & Sloped Ceilings with 5° to 55° Pitch
• Type IC Rated – Approved for Direct Contact with Insulation
• Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
• CRI 90+ for True Colour Rendering
• 7.5W model light options: 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K to 2000K, and 5CCT
• 11W model light options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
• Triac Dimmable with most CL dimmers 120V input
• 0-10V Dimmable Option with 120V to 347V input
• External Driver Inside Connection Box – No Junction Box Needed
• Warranty: 10 Year on Residential, 5 Year on Commercial Installations
• cULus Listed
Applications:
• Sloped Ceilings 5° to 55°
• Wall Washing
Warranty:
• 10 Year Residential
• 5 Year Commercial
