Lotus JXL-COB02-S08W-CCT 8 Watt 2-Inch 3 Color Selectable LED Square Recessed Economy Downlight Fixture Dimmable
Lotus JXL-COB02-S08W-CCT 8 Watt 2-Inch 3 Color Selectable LED Square Recessed Economy Downlight Fixture Dimmable
Specifications
Specifications
Part Number# | JXL-COB02-S08W-CCT |
---|---|
Type of Area: | Apartment Buildings, Home & Architectural, Office & Small Retail, Schools, Hotels, Hospitals, Service Counters, Commercial Offices, Education, Retail, Banking |
Lamp Life: | 20,001 - 30,000 Hours |
Lumen Output: | 520 - 670 |
Wattage: | 8 Watt |
Ballast Start Type: | Instant Start |
Certifications | 3 Year Warranty, ETL Listed |
CRI: | 90+ |
Dimensions: | ID 2.06" / OD 3.13" |
Height: | 2.25" |
Dimmable: | Yes |
Product Warranty: | 3 Year |
Minimum Start Temperature: | -4 Deg F |
Voltage: | 120V |
Manufacturer: | Lotus LED Lights |
Technology: | LED |
Details
Details
ShineRetrofits Input:

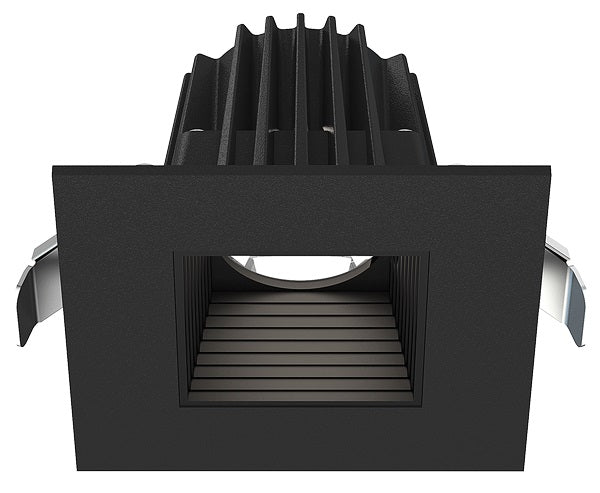

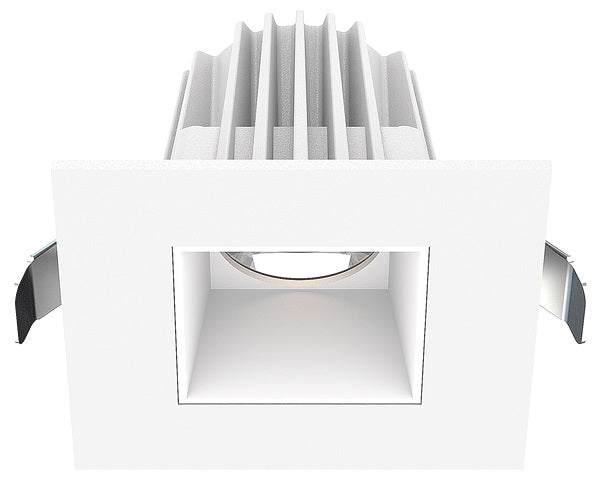

Lotus 2-Inch 8-Watt LED Square Recessed Economy Downlight is an efficient and adaptable lighting solution ideal for residential applications. It offers user-selectable color temperatures of 3000K, 4000K, and 5000K, with a high CRI of 90+ for accurate color rendering. Type IC rated and requiring no additional housing, this fixture includes a 120V Triac dimmable driver inside the connection box for easy installation. With a compact depth of 2 3/4", it fits in limited ceiling spaces and is available with white and black trims, smooth and baffle finishes, and white and black reflectors, ensuring a versatile and stylish option for recessed lighting in residential settings.
Features:
• Model: JXL-COB02-S08W-CCT
• User Selectable 3K-4K-5K CCT
• CRI 90+ for True Color Rendering
• Type IC Rated – No Housing Required
• 120V Triac Dimmable Driver Included
• Fast and Easy To Install – Save On Labor
• 2 3/4″ Deep – Install Where Ceiling Space Is Limited
• Available with White & Black trims and Smooth & Baffle, White & Black Reflectors
• Driver Inside Connection Box – No Junction Box Needed
Applications:
• Residential Recessed
Dimensions:
• Fixture: OD 3 1/8" ID 2 1/16" Depth 2 1/4"
• Driver: 5 1/4" x 1 3/4" x 1 1/8"
• Cut Out: 2 1/2" to 2 3/4"
