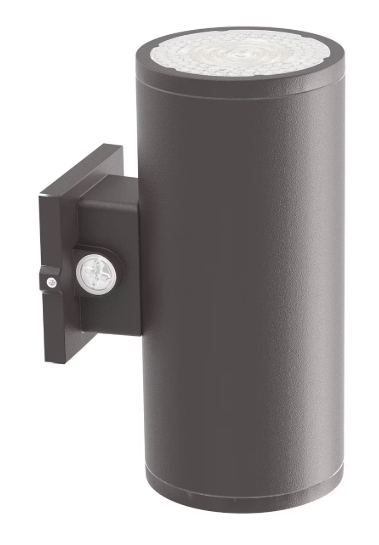

LED Architectural Wall Cylinder – LOC-6DWM-UDMW3CCT

The LOC-6DWM-UDMW3CCT is a 6" LED architectural wall cylinder ideal for entryways, awnings, facades, yards & loading docks, wall washers, and more. With multi-wattage and multi-CCT flexibility, 0-10V dimming, a photocell for automatic on/off control, and an IP65 rating, it delivers reliable performance in demanding outdoor environments.

Key Features

• SMD2835 LED Chips
• Default lighting direction: Full Up / Full / Full Down light direction selection
• Standard dusk to dawn photocell ON/OFF
• 25°/40°/60° selectable beam angle options
• IP65 rated for wet location use
• No flickering or humming

Ideal Applications

• Entryways & awnings
• Building facades
• Yards & loading docks
• Wall washers

Specifications

• Wattage: Multiple Wattage – 0W, 10.5W, 14W, 18W, 21W, 28W, 36W
• CCT: Multiple Color Temperature – 3000K, 4000K, 5000K
• Voltage: 120-347Vac
• Lumen Output: 1000–2000, 2001–3000, 3001–4000, 4001–5000 lm
• Dimming: 0-10V
• Controls: Photocell Included (Dusk to Dawn On/Off)
• IP Rating: IP65
