Lithonia Lighting TWR1 Color Switchable LED Wall Pack with Adjustable Lumens and Photocell Replaces 70W - 250W HID
Lithonia Lighting TWR1 Color Switchable LED Wall Pack with Adjustable Lumens and Photocell Replaces 70W - 250W HID
Specifications
Specifications
| Part Number# | TWR1 LED ALO SWW2 UVOLT PE DDBTXD |
|---|---|
| Type of Area: | Pole / Street / Parking Lot, Wall Mount & Building Exteriors |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 2,300 | 5,300 | 8,500 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, IP65 / IP66 / IP67, LM79 / LM80, UL Listed |
| CRI: | 80 |
| Dimensions: | 13.2" x 9.4" x 7.2" Depth |
| Width: | 13.2" |
| Height: | 9.4" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Weight Each: | 12.1 lbs |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

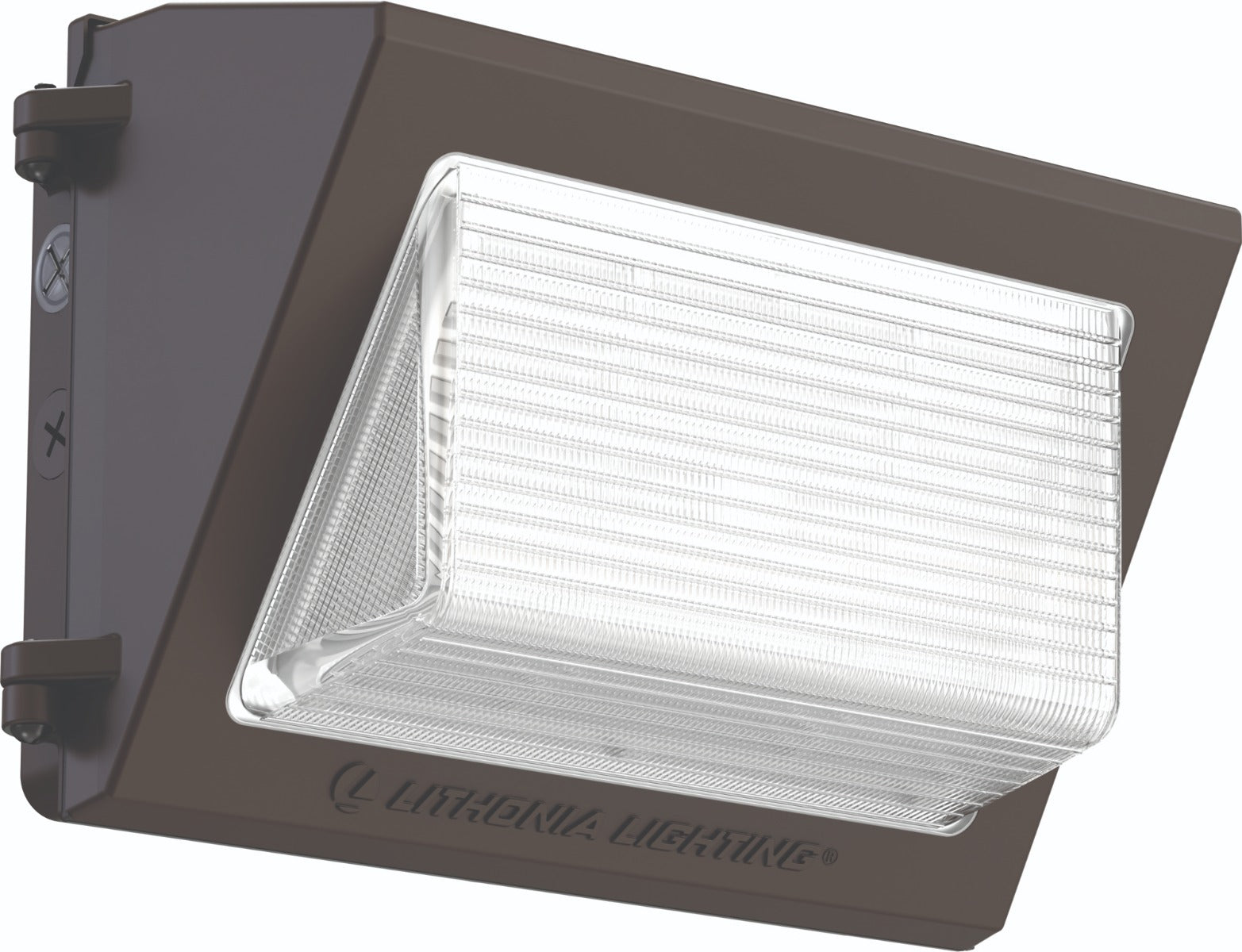

The TWR1 LED Wall Pack is traditionally designed with these latest features: Adjustable Lumen Output (ALO), Switchable Color Temperatures, and a Selectable On/Off Dusk-to-Dawn Photocell. Save 86% more in energy costs by replacing up to 250W HID with lighting performance of up to 8,500 Lumens. It offers low maintenance and longer LED life at 50,000 hours suitable for replacing the entire site or only a portion of the building's wall packs. The fixture is a perfect choice for outdoor wall-mounted applications including loading areas, building facades, driveways, and parking areas.
Features:
• Design: The Lithonia lighting TWR1 LED wall pack is equipped with adjustable lumen output (up to 8,500 Lumens), switchable CCT (30K/40K/50K), and a switchable photocell allowing the contractor to customize to a level perfectly suited for the job site
• Energy savings: long-life LEDs, coupled with a high-efficiency driver, provide superior illumination and extended service life with energy savings of up to 86% when replacing HID wall packs
• Photocell: switchable photocell for dusk-to-dawn operation
• Ratings: UL Listed to U.S. and Canadian safety standards for wet locations, IP65 rated, DesignLights Consortium (DLC) qualified product
• Voltage: UVOLT for 120-Volt to 347-Volt (50 Hz/60 Hz)
• Hours of life: LEDs maintain 90% of light output at 100,000 hours of service or L90/100,00- hours
• Installation: designed for wall mounting above four feet from ground. housing is configured for mounting directly over a standard 4 in. outlet box (by others) or for surface wiring via any of four convenient ½ in. threaded conduit entry hubs
• WARRANTY: 5-year limited warranty
• Adjustable lumen output: 2,300 Lumens, 5,300 Lumens, 8,500 Lumens
• Switchable color temperature: 3000K | 4000K | 5000K
• CONSTRUCTION: Die-cast aluminum housing & borosilicate glass lens
