Lithonia Lighting STAKS 2X4 ALO6 SWW7 Stack Switch Recessed LED Center Element Lay-in Troffer Light Fixture Dimmable
Lithonia Lighting STAKS 2X4 ALO6 SWW7 Stack Switch Recessed LED Center Element Lay-in Troffer Light Fixture Dimmable
Specifications
Specifications
| Part Number# | STAKS 2X4 ALO6 SWW7 |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hospitals, Education, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 4,000 - 6,000 |
| Wattage: | 48 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CSA, Dimmable, DLC Approved |
| CRI: | 80 |
| Dimensions: | 47.75" x 23.75" x 3.6" |
| Width: | 23.75" |
| Length: | 47.75" |
| Height: | 3.6" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 15.87 lbs |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:

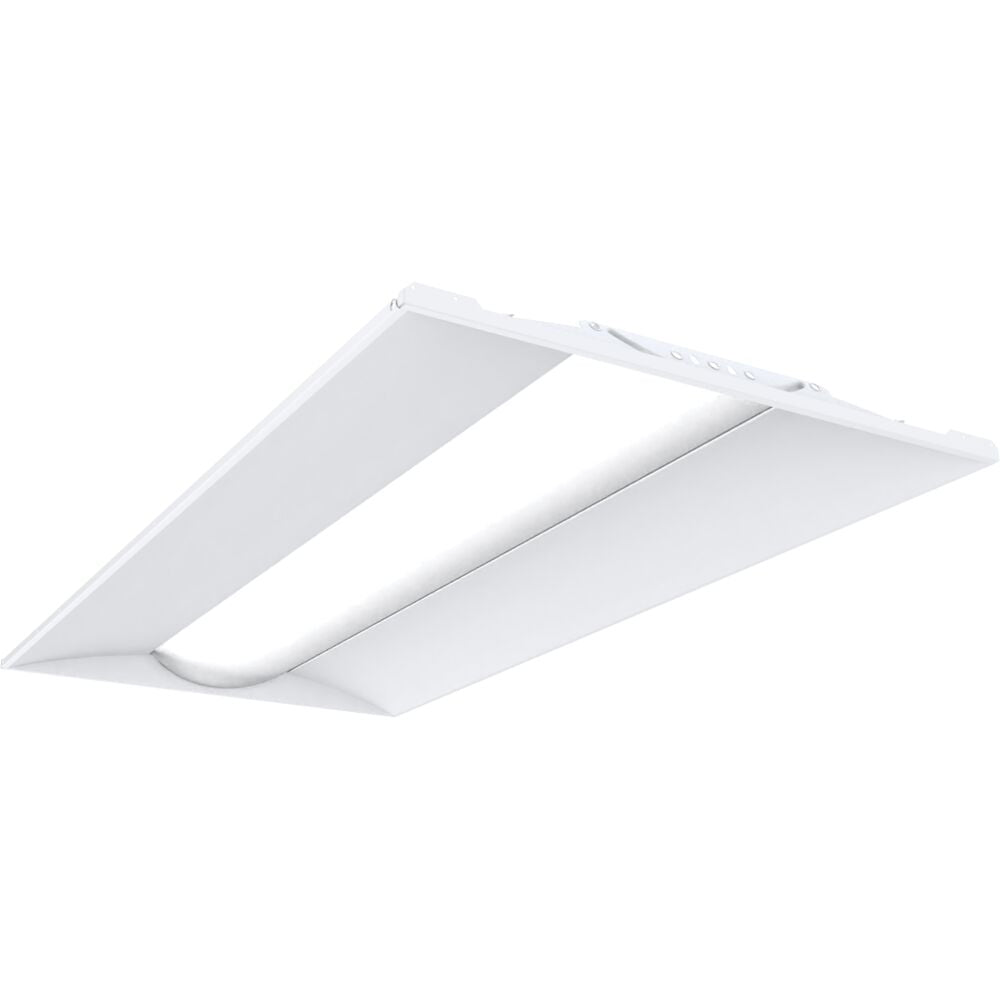

Lithonia Lighting's Stack Switch is a versatile and energy-efficient recessed LED lay-in troffer light fixture. Its wide 7-inch lens and curved reflector provide a high-end aesthetic, while ultra-efficient LEDs and drivers ensure maximum energy savings. The fixture features 0-10V dimming for precise brightness control and supports a voltage range of 120V to 277V for easy installation. With an emergency battery backup that offers 90 minutes of light during power outages, it is ideal for various commercial settings, boasting a 5-year limited warranty.
Features:
• DESIGN: Wide 7" lens and curved reflector give STACK a high-end aesthetic
• ENERGY SAVINGS: Ultra-efficient LEDs and Drivers lead to maximum energy savings
• DIMMING: 0-10V dimming allows for you to get the brightness of your space just right
• RATINGS/LISTINGS: CSA, IC, DLC, Damp Location
• VOLTAGE: MVOLT - functions with 120v through 277v; Easy installation in T-grid ceilings, Surface mount boxes, or, drywall grid adapters
• HOURS OF LIFE: 80% LED lumen maintenance at 60,000 hours (L80/60,000)
• INSTALLATION: Shallow depth allows for mounting in constricted plenum spaces
• BATTERY: Emergency battery backup - switches automatically to emergency mode with 90 minute run time
• WARRANTY: 5-year limited warranty
