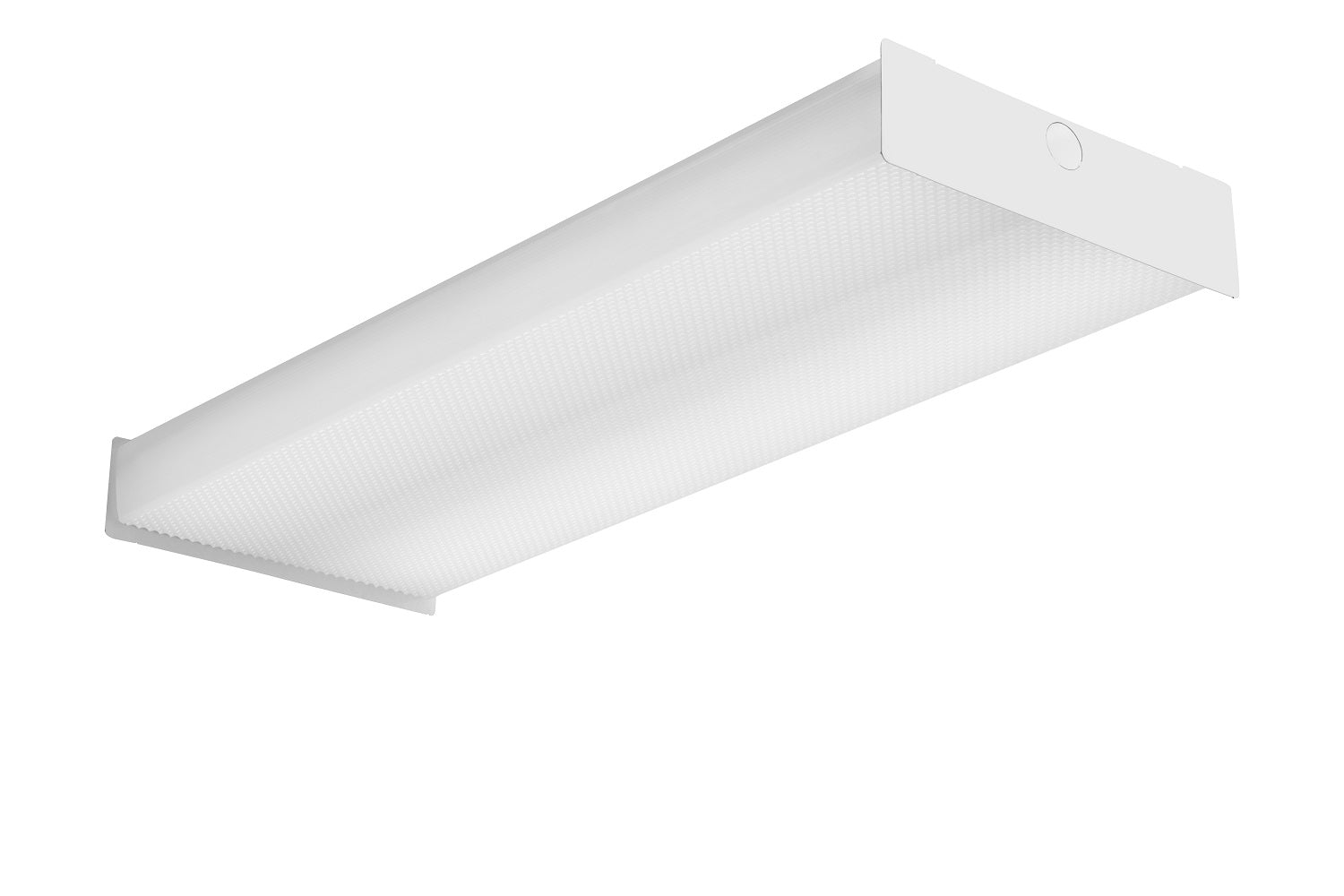

Lithonia Lighting SBL2 23 Watt 2 Foot White LED Surface Square Basket Wraparound Light Fixture 120-277V
Lithonia Lighting SBL2 23 Watt 2 Foot White LED Surface Square Basket Wraparound Light Fixture 120-277V
Specifications
Specifications
| Part Number# | SBL2 LP840 |
|---|---|
| Type of Area: | Hangers & Storage, Large Retail & Open Areas, Office & Small Retail, Stairwell |
| Color Temp: | 4000K - Neutral White |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,400 |
| Wattage: | 23 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CSA, Dimmable, DLC Approved, Lighting Facts, LM79 / LM80 |
| CRI: | 82 |

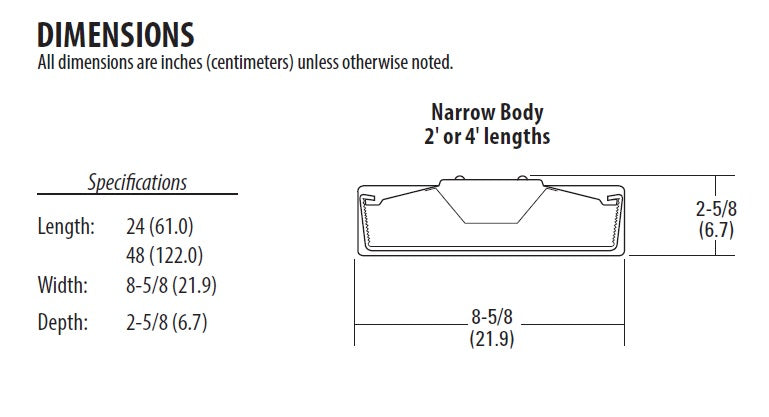

| Dimensions: | 24.00" x 8.62" x 2.62" |
| Width: | 8.62" |
| Length: | 24.00" |
| Height: | 2.62" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 6.00 lbs |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED |

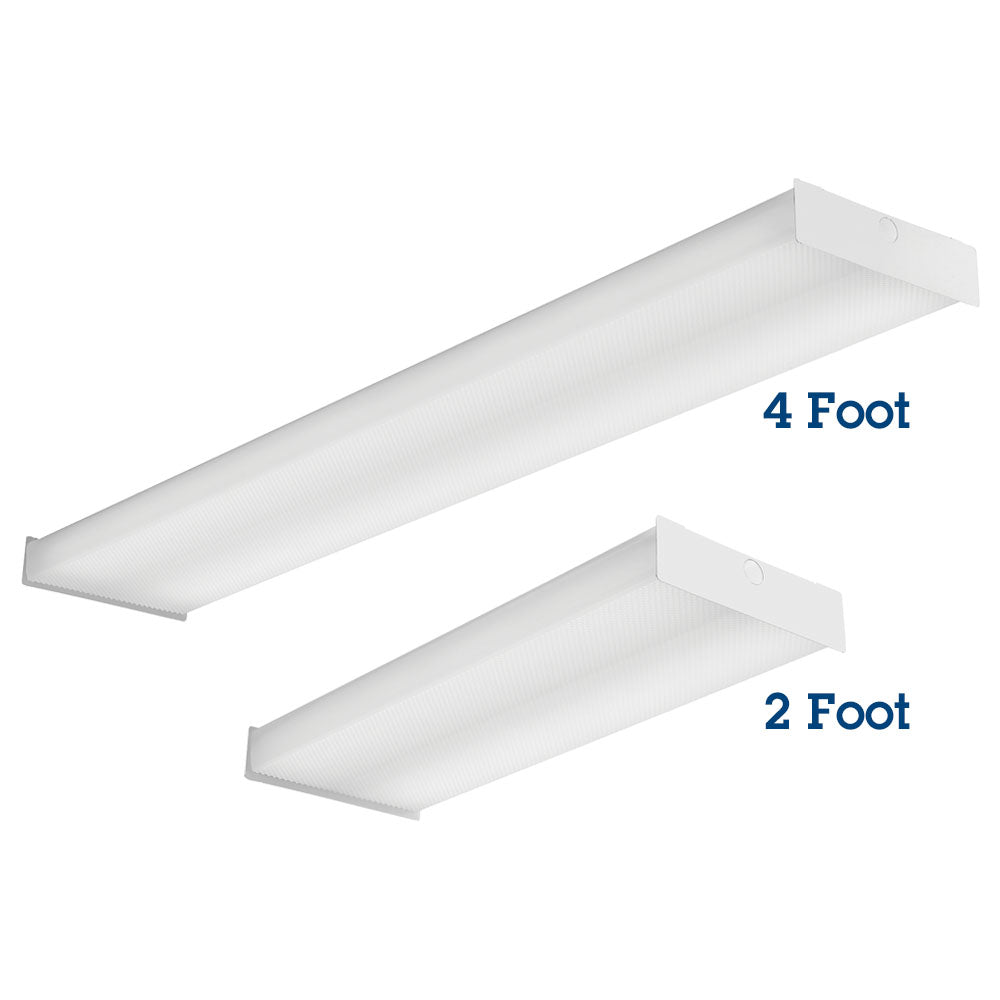

| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
This 23 Watt LED Square Basket Wraparound fixture delivers over 2,400 lumens of high quality and energy efficient light for surface mount applications including closets, storage rooms, and offices. Backed by Lithonia Lighting, this fixture provides long-life LEDs, high efficiency drivers and an extended service life with 90% lumen maintenance at 60,000 hours far outperforming the outdated fluorescent wrap with a similar look. Includes a 5 year warranty.
Intended Use:
SBL LED wraparound provides a digital lighting platform to deliver general ambient lighting for surface-mount applications. The SBL provides a similar look to that of an existing fluorescent wrap with all of the excellent benefits of LED: energy savings, long life, and maintenance savings. Ideal for closets, storage rooms, and offices.
Construction:
Linear side prisms control brightness, pyramidal bottom prisms minimize lamp image. Continuous side flanges on fixture body provide light trap and continuous diffuser support to prevent accidental opening and simplify maintenance. Full depth, white enamel end plates. Die-formed from code gauge cold-rolled steel. Channel cover snaps into place without the use of tools. Full end cap factory installed to reduce job site labor.
Optics:
The translucent white diffuser reduces glare and pixilation without impacting performance.
Electrical:
Long-life LEDs, coupled with high-efficiency drivers, provide extended service life. 90%
LED lumen maintenance at 60,000 hours (L90/60,000).
LED drivers deliver dimming from 0-10V control signal.
Listings:
CSA certified to meet U.S. and Canadian standards.
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Warranty:
5-year limited warranty. Complete warranty terms located atbwww.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
NOTE: Actual performance may differ as a result of end-user environment and application. Specifications subject to change without notice.
