ShineRetrofits Input:

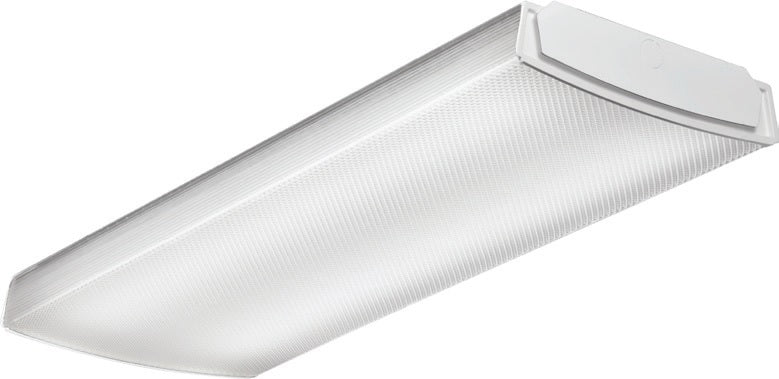

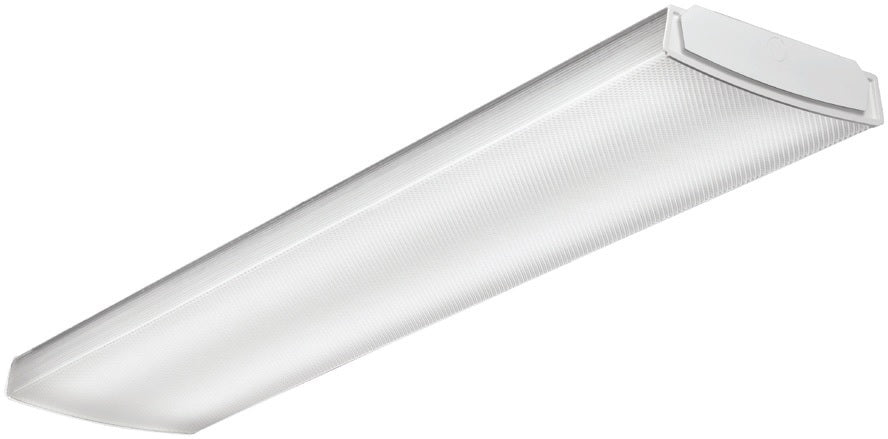

Lithonia's LED Wraparound fixture delivers 2,000 to 4,600 lumens of high-quality and energy-efficient light for surface mount applications including closets, storage rooms, hallways, stairwells, and offices.  Backed by Lithonia Lighting, this fixture provides long-life LEDs, high-efficiency drivers, and an extended service life with 90% lumen maintenance at 60,000 hours. Includes a 5-year warranty.

Intended Use:
LBL LED wraparound provides a digital lighting platform to deliver general ambient lighting for surface-mount applications. The LED system delivers a long life and excellent color to ensure a quality, low-maintenance lighting installation. Ideal for closets, storage rooms, hallways, stairwells, and offices.

Construction:
Metal parts are die-formed from code-gauge steel. Prismatic diffuser is 100% acrylic with sonically welded luminous ends. Continuous side flanges on the fixture body provide a light trap and continuous diffuser support to prevent accidental opening and simplify maintenance.
Finish: Five-stage iron phosphate pretreatment assures superior paint adhesion and rust resistance.
Painted parts finished with high-gloss, high-reflectivity baked white polyester enamel (low VOC).
OPTICS — Curved prismatic diffuser with linear side prisms and highly transmissive light-diffusing film

Electrical:
Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality
of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000). The LEDs have a CRI of 82. eldoLED driver options deliver a choice of dimming range and choices for control while assuring flicker-free, low-current inrush, 89% efficiency, and low EMI. Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance.

Controls:
Pair the LBL with the fixture mount Sensor Switch LSXR sensor for additional energy savings when the space is unoccupied. The LSXRHL sensor dims the fixture down to a low-level setting when there is no occupancy. This option is ideal for stairwells, back rooms, and closets due to the low occupancy
level in those spaces. Optional nLight® embedded controls continuously monitor system performance, allow for constant lumen management/compensation function, facilitate simple “plug-and-play” network and controls upgrading via Cat-5 cable. Ballast disconnect is provided where required to comply with US and Canadian codes.

Listings:

CSA certified to meet U.S. and Canadian standards.
DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC-qualified.
Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions
are qualified.
Damp listed.

Warranty:
5-year limited warranty. Complete warranty terms located at www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx

NOTE: Actual performance may differ as a result of end-user environment and application. Specifications are subject to change without notice.
