ShineRetrofits Input:

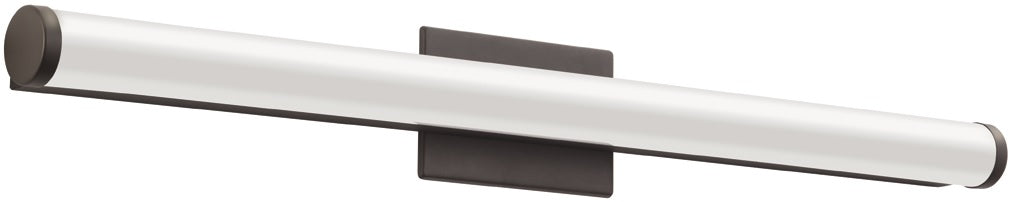

Lithonia Lighting's Vanity LED luminaires are stylish and elegant while offering a long life and incredible color quality.  They are available in 1', 2', 3', and 4' lenthgs.  Extremely reliable with a simple installation process and backed by Acuity with a 5 year Warranty.  They are ideal for use in residential, commercial, hospitality, university and multi-family settings. Include an integral color temperature changing switch to adjust to a specific color temperature during installation.  Dimmable when used with a compatible dimmer.

Intended Use:
Provides an LED lighting platform to deliver general or task lighting for residential and light commercial applications. Light engine delivers long life and excellent color to ensure a quality, low-maintenance light installation. Ideal for use in bathrooms, lavatories, hallways, corridors, stairways, utility areas and more.

Construction:

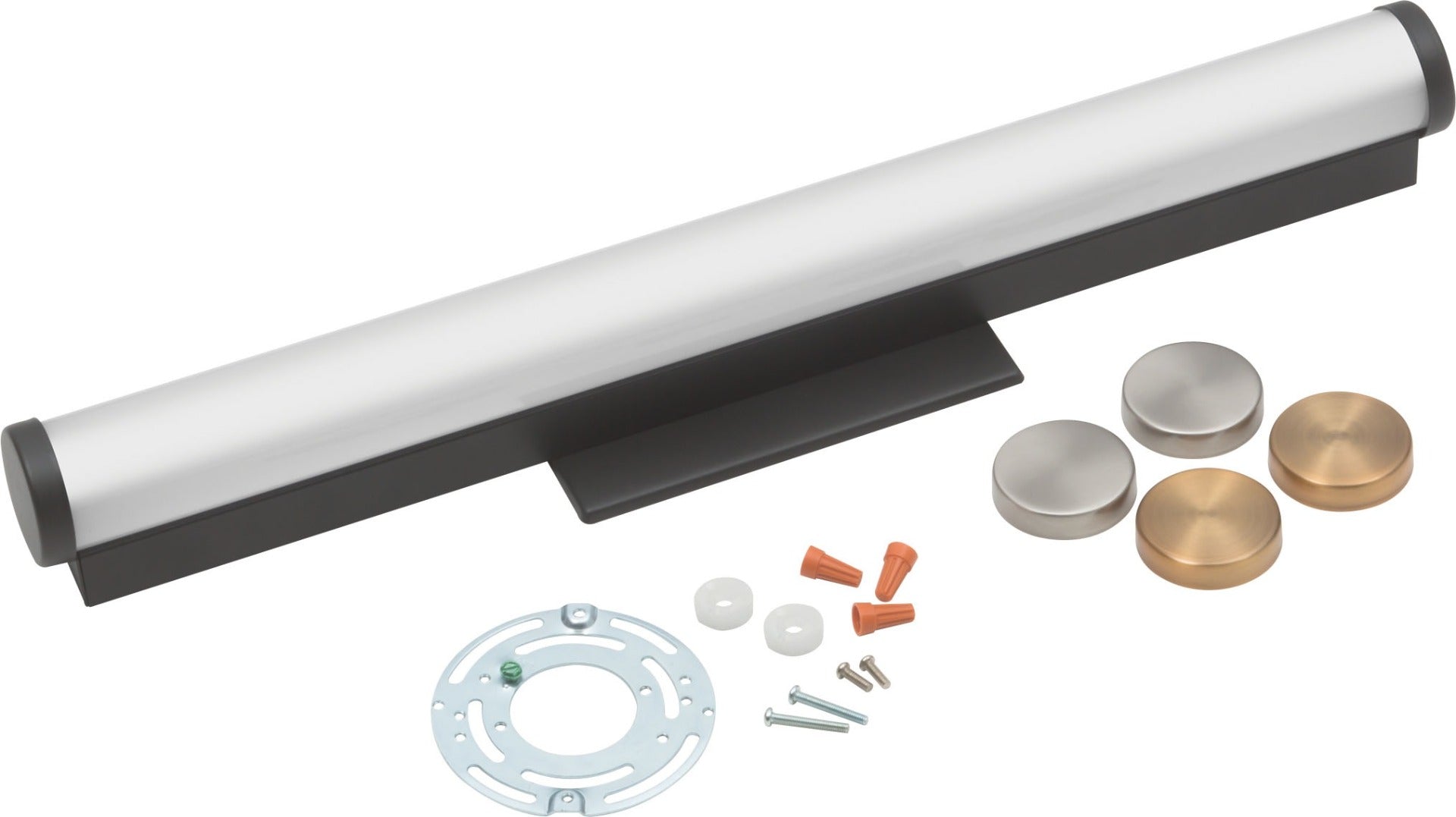

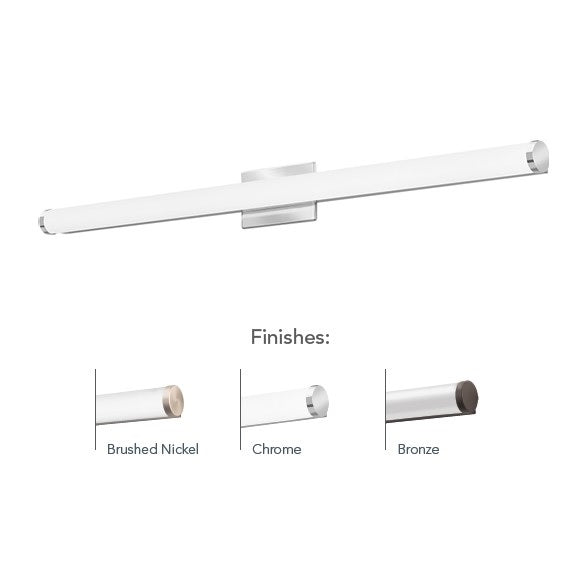

The Contemporary Cylinder is constructed of an acrylic diffuser with housings available in four finishesincluding brushed nickel, chrome, bronze and matte black. When ordering the matte black finish, inaddition to the pre-installed black end caps, sets of brushed gold and brushed nickel end caps are alsoincluded. The included canopy/junction box cover is removable for a more low-profile look (2'-4' lengthsonly). The white acrylic diffuser provides even illumination and softens the appearance of the LEDs forimproved aesthetics.

Optics:
The FMVCCLS Contemporary Cylinder Vanity has an integrated switch to select 3000K, 3500K or 4000Kcolor temperature at the time of installation.1' delivers 800 lumens, 2' delivers 1690 lumens, 3' delivers 2450 lumens, and 4' delivers 3100 lumensat 3000K CCT with 50,000 hours of life. See table below for delivered lumens at the different CCT colorswitch settings.
Extruded acrylic diffuser is of highly transmissive material to minimize LED image and provides highanglebrightness control.

Electrical:
Long-life LEDs, coupled with a multivolt and dual dimmable capable driver, provide extended service life. Standard input = 9.5 watts, (1'); 18 watts, (2'); 27 watts, (3'); 36 watts, (4'). Fixture is rated to deliver L70 performance at 50,000 hours and operates at 120-277 volts.
This Fixture is dimmable by either triac or 0-10V dimming. Use with approved triac or 0-10V dimmer only.

Listings:
CSA Listed to US and Canadian safety standards. Listed for damp locations.Can be used to comply with California Title 24 Part 6 High Efficacy LED Light Source Requirements.

Warranty:
5-year limited warranty. Complete warranty terms located at www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
