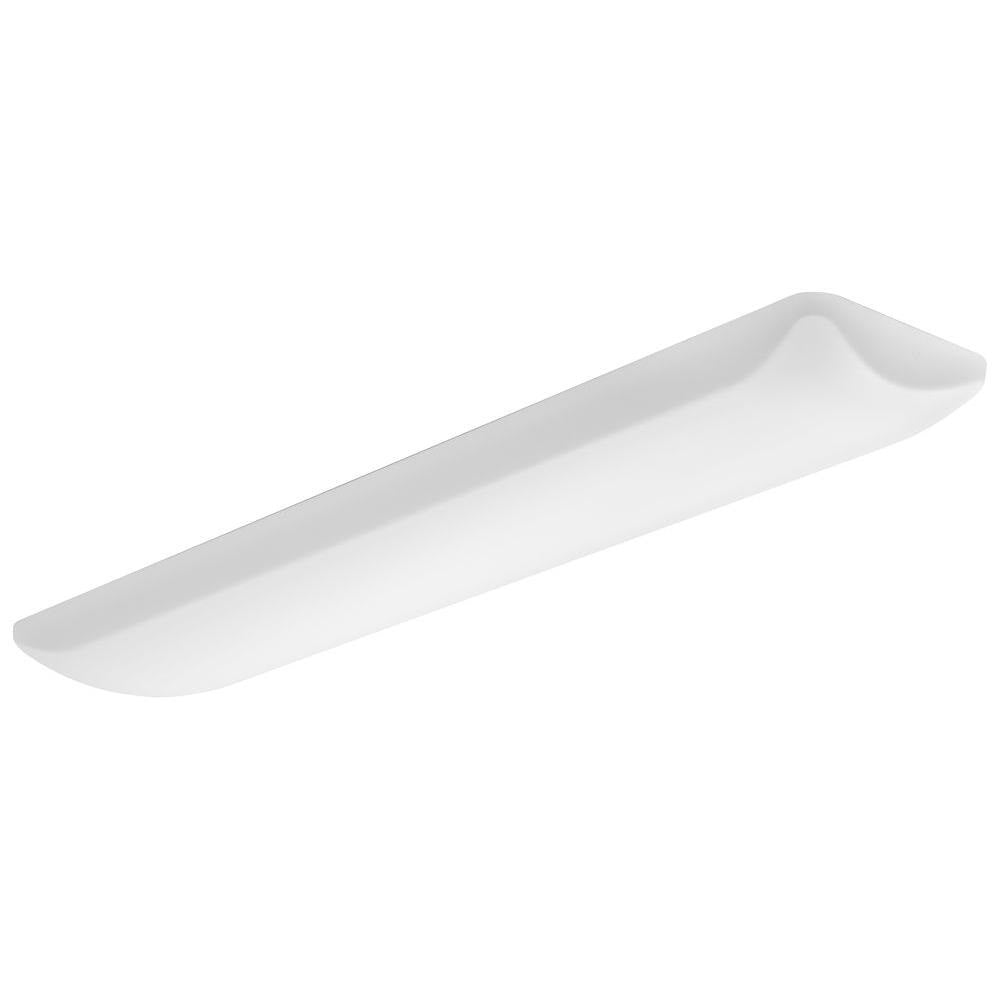

Lithonia Lighting FMLL Series LED Litepuff Linear Low Profile Flush Mount Fixture
Lithonia Lighting FMLL Series LED Litepuff Linear Low Profile Flush Mount Fixture
Specifications
Specifications
| Part Number# | FMLL |
|---|---|
| Type of Area: | Wall Mount & Building Exteriors |
| Color Temp: | 4000K - Neutral White |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 3,460 - 5,000 |
| Ballast Factor: | 1.00 |
| Wattage: | 45 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CSA, Lighting Facts, LM79 / LM80 |
| CRI: | 85 |
| Dimensions: | See Product Options |
| Width: | 9.25" - 14" |
| Length: | 47.875" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120V |
| Weight Each: | 7.18 - 10.5 lbs |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
Lithonia's LED Litepuff delivers up to 5,000 lumens with only 35 to 45 Watts with a long 50,000-hour life, excellent color, and low maintenance operation. The energy savings and a drastic reduction in time spent changing out light bulbs.
Intended Use:
Provides an LED lighting platform to deliver general ambient lighting for surface-mount ceiling applications. Light engine delivers long life and excellent color to ensure a quality, low-maintenance light installation.
Construction:
Metal parts are die-formed from code-gauge steel. The diffuser is 100% textured durable white acrylic. Continuous side flanges on the fixture body provide a light trap and continuous diffuser support to prevent accidental opening and simplify maintenance. Finish: Five-stage iron phosphate pretreatment assures superior paint adhesion and rust resistance. Painted parts finished with high-gloss, high-reflectivity baked white polyester enamel (low VOC).
Optics:
Thermal formed diffuser is of highly transmissive material to minimize lamp image and provides high-angle brightness control. One piece contemporary design wrap-around diffuser soften appearance for improved aesthetics.
Electrical:
Long-life LEDs, coupled with a high-efficiency driver, provide extended service life. Standard input = 35 watts, 88 lumens per watt. FMLL is rated to deliver L70 performance at 50,000 hours. Fixture operates at 120 volts, 60Hz.
Listings:
CSA certified to US and Canadian standards. Listed for damp locations.
Warranty:
5-year limited warranty. Complete warranty terms located at www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
NOTE: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25°C.
Specifications subject to change without notice.
