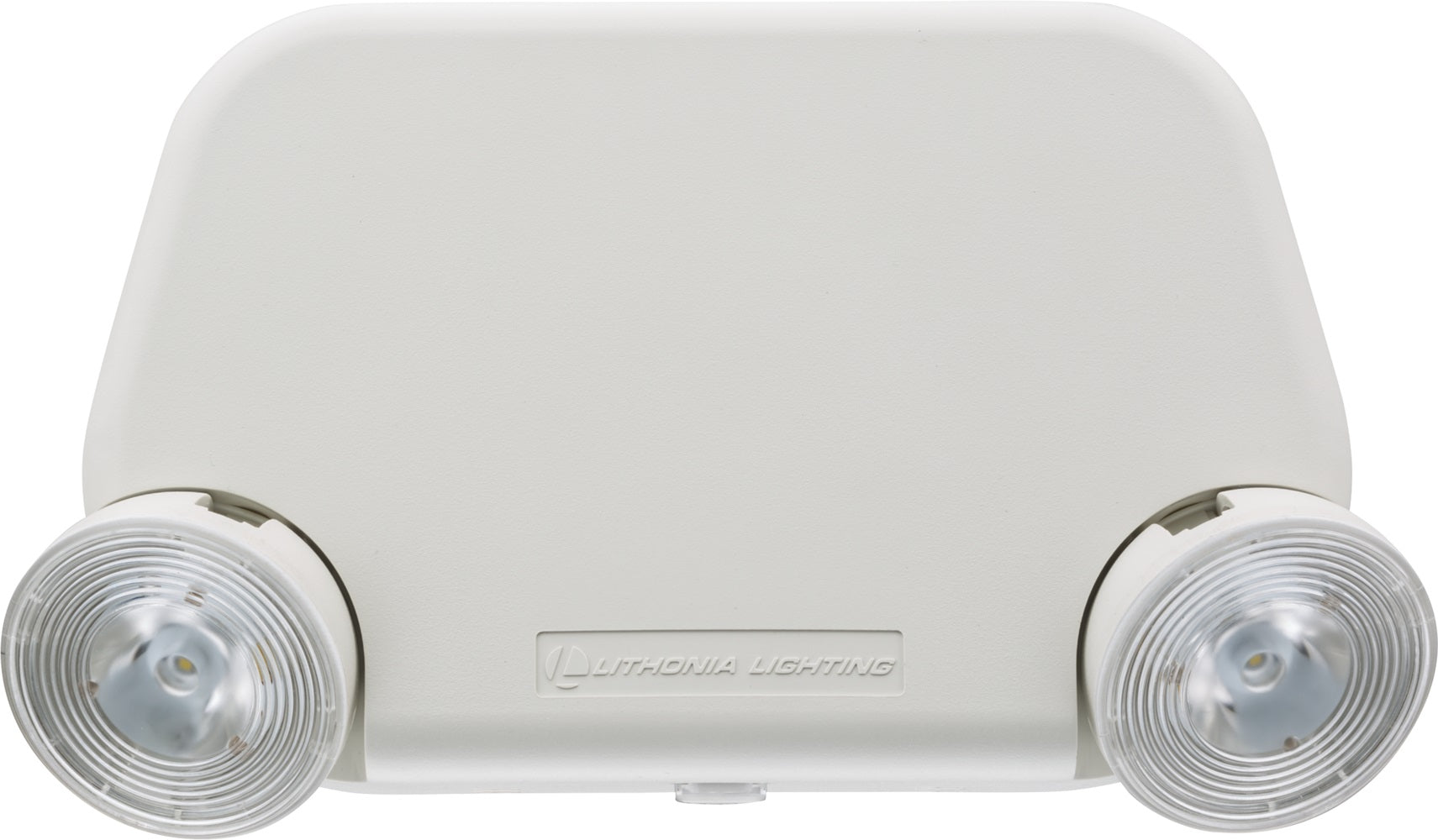

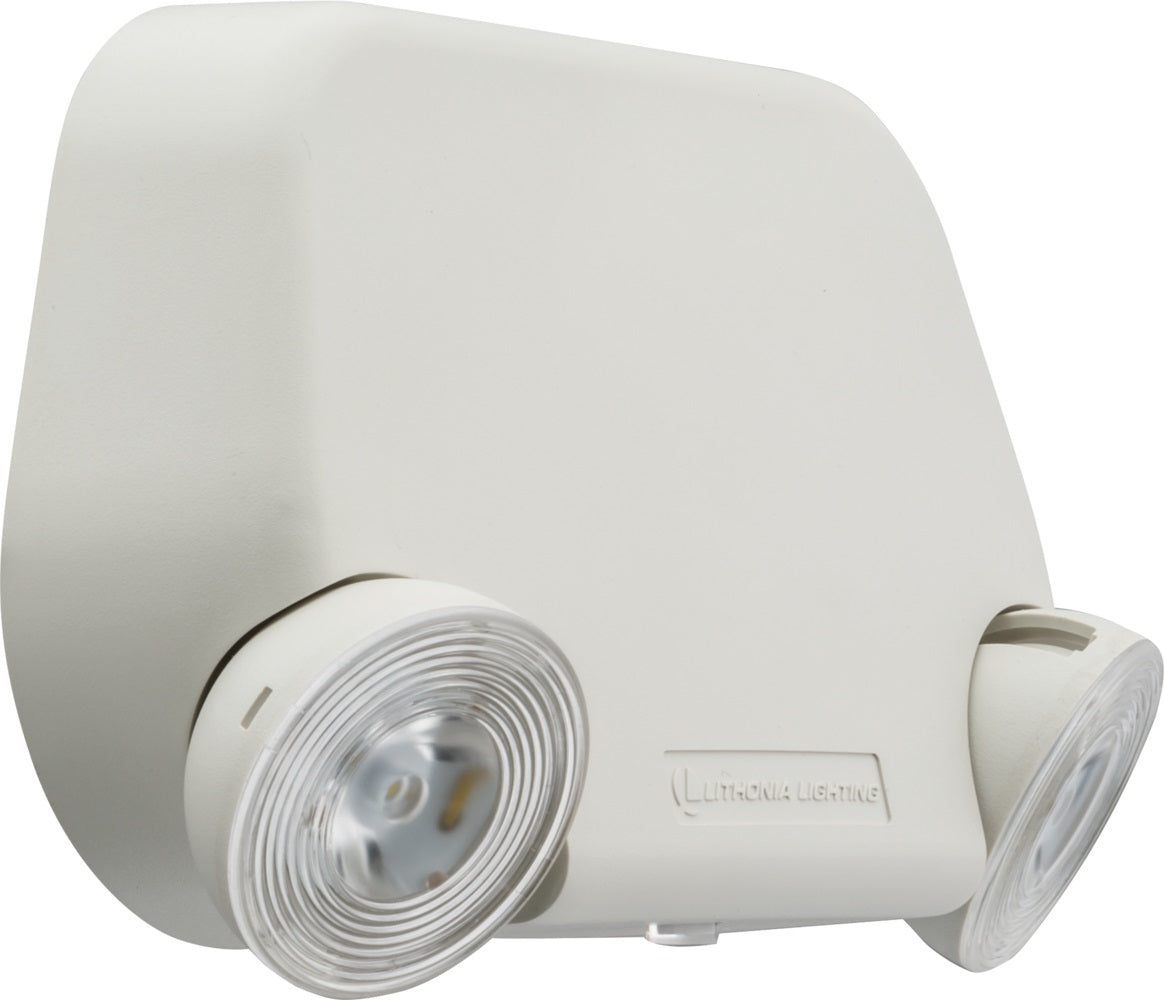

Lithonia Lighting EU2L M12 Low Profile Emergency Light Frog Eyes Unit
Lithonia Lighting EU2L M12 Low Profile Emergency Light Frog Eyes Unit
Specifications
Specifications
| Part Number# | EU2L |
|---|---|
| Type of Area: | Home & Architectural, Large Retail & Open Areas, Office & Small Retail, Stairwell |
| Wattage: | 2 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 2 Year Warranty, FCC Compliant, NFPA, OSHA, UL Listed |
| Dimensions: | 7.88" x 2.75" x 4.50" |
| Width: | 2.75" |
| Length: | 7.88" |
| Height: | 4.50" |
| Dimmable: | No |
| Product Warranty: | 2 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 0.70 lbs |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
The EU2L LED Emergency Light will safely illuminate the path of egress in small spaces and at lower mounting heights making it perfect for stairways and hallways. It can be wall or ceiling-mounted, provides 90 emergency power in case of power loss, and bright LEDs can be seen over 100 feet away.
Intended Use:
Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet code-required emergency lighting. Ideal for applications requiring low profile, emergency unit for lower mounting heights.
Construction:
The housing is a standard white thermoplastic with a compact and low-profile design with an all-inclusive lamp, reflector, and lens assembly. It is 5VA flame-rated and impact-resistant.
Optics:
The typical life of the LED is 10 years. One, 0.75W white LED per lamp head.
Electrical:
Dual-voltage 120 or 277 standard. Optional dual-voltage 120 or 230 available.
Bi-color LED status indicator for battery condition. (Green-normal, Red-check battery).
One watt of remote capacity is available.
Battery:
3.6V Maintenance-free, rechargeable, nickel-cadmium.
Installation:
Wall mount and ceiling mount. Surface mount back plate fits most standard-size junction
boxes and snaps into place.
Listings:
UL Listed. Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), California Energy Commission Title 20 section 1605.3 (W)(4), FCC, and OSHA. Indoor damp location 50° to 104°F (10°C to 40°C) listed standard.
Warranty:
2-year limited warranty. Complete warranty terms located at: www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
NOTE: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.
