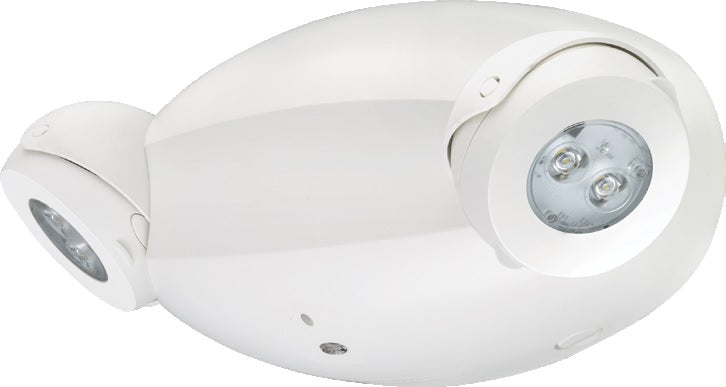

Lithonia Lighting ELM6L UVOLT LTP SDRT Quantum White Adjustable LED 1100LM Lithium Iron Phosphate Emergency Light Unit with Self-Diagnostics and Remote Test
Lithonia Lighting ELM6L UVOLT LTP SDRT Quantum White Adjustable LED 1100LM Lithium Iron Phosphate Emergency Light Unit with Self-Diagnostics and Remote Test
Specifications
Specifications
| Part Number# | ELM6L UVOLT LTP SDRT |
|---|---|
| Type of Area: | Home & Architectural, Large Retail & Open Areas, Office & Small Retail, Stairwell |
| Lumen Output: | 1100 |
| Wattage: | 21 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, FCC Compliant, NEC, NFPA, OSHA, UL Listed |
| Dimensions: | 13.5" x 3.75" x 5.9" |
| Width: | 3.75" |
| Length: | 13.5" |
| Height: | 5.9" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | 120V |
| Weight Each: | 3 lbs |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The ELM6L from Acuity Brands Quantum series provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet and exceed code required emergency lighting. Ideal for applications requiring attractive LED unit equipment with quick installation and unparalleled performance for mounting heights of 7.5’ to 30’. Current-limiting charger maximizes battery life and minimizes energy consumption to meet California Energy Commission Title 20 requirements for small battery charger systems and provides low operating costs
Features:
• The ELM6L features three high-performance LEDs rated at 5.3 watts per adjustable lamp head and delivers a total of 1,100 lumens in a spot pattern
• Typical life of an LED is 10 years and the LED light sources usually do not need to be replaced under normal conditions for normal off applications
• The housing is white thermoplastic with a compact and low-profile contemporary design. It is 5VA flame rated, impact-resistant, scratch-resistant and corrosion proof.
• Contains a lithium phosphate battery which provides additional 4 hour run time capacity and can support remote head capability
• There is a low-profile, integrated and back-lit test switch with an easily visible multi-color LED status indicator
• The back-plate contains a universal j-box mounting pattern to facilitate ease of installation on a wide variety of j-boxes and the front housing allows tool-less access for ease of maintenance
• Automatic 24-hour recharge after a 90-minute discharge
• UL damp location listed standard and Meets or exceeds all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), NOM (Norma Oficial Mexicana), California Energy Commission Title 20 section 1605.3 (W)(4), FCC and OSHA
• Universal Voltage works with 120-347 Voltage Wiring
• SDRT remote testing capability monitors AC functionality and occurs for 5 minutes every 30 days and also runs the 90 minute annual test which saves time and money for facility managers; Test light will indicate any failures
