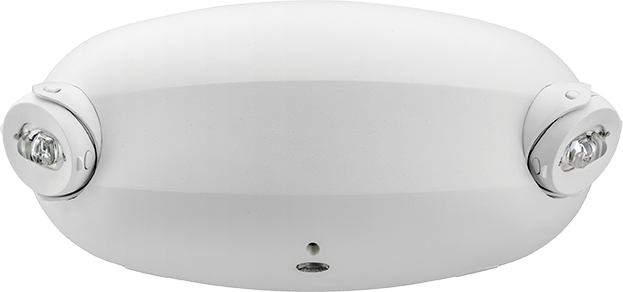

Lithonia Lighting ELM2L UVOLT LTP Quantum Aimable LED Lithium Iron Phosphate Emergency Light Unit
Lithonia Lighting ELM2L UVOLT LTP Quantum Aimable LED Lithium Iron Phosphate Emergency Light Unit
Specifications
Specifications
| Part Number# | ELM2L UVOLT LTP |
|---|---|
| Type of Area: | Home & Architectural, Large Retail & Open Areas, Office & Small Retail, Stairwell |
| Lumen Output: | 220 |
| Wattage: | 2 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, FCC Compliant, NEC, NFPA, OSHA, UL Listed |
| Dimensions: | 9.72" x 3.10" x 4.68" |
| Width: | 3.10" |
| Length: | 9.72" |
| Height: | 4.68" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 1.31 lbs |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
The ELM2L from Acuity Brands Quantum series provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet and exceed code required emergency lighting. Ideal for applications requiring attractive LED unit equipment with quick installation and unparalleled performance for lower mounting heights. Current-limiting charger maximizes battery life and minimizes energy consumption to meet California Energy Commission Title 20 requirements for small battery charger systems and provides low operating costs.
Features:
• Two adjustable lamps that have high performance LEDs with acrylic lens’ rated at 1.2 watts each
• Emergency lamp heads deliver a total of 220 lumens in a linear pattern and the typical life of an LED is 10 years. The LED light sources usually do not need to be replaced under normal conditions for normal off applications
• The housing is white thermoplastic with a compact and low-profile contemporary design. It is 5VA flame rated, impact-resistant, scratch-resistant and corrosion proof.
• Contains a lithium phosphate battery which provides additional 3 hour run time capacity and can support remote head capability
• There is a low-profile, integrated and back-lit test switch with an easily visible multi-color LED status indicator
• The back-plate contains a universal j-box mounting pattern to facilitate ease of installation on a wide variety of j-boxes and the front housing allows tool-less access for ease of maintenance
• Automatic 24-hour recharge after a 90-minute discharge
• UL damp location listed standard and Meets or exceeds all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), NOM (Norma Oficial Mexicana), California Energy Commission Title 20 section 1605.3 (W)(4), FCC and OSHA
• 120-277 Voltage
