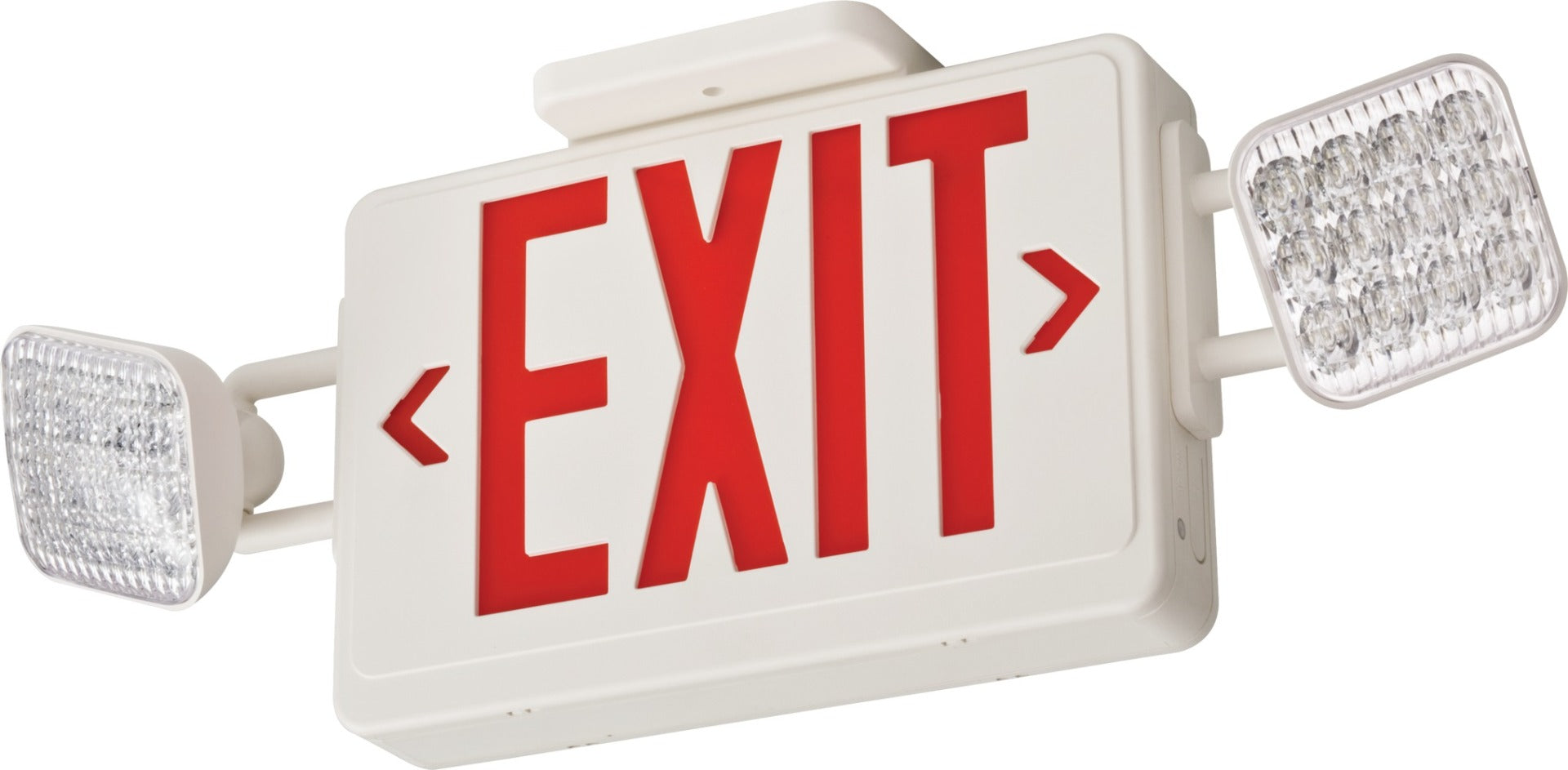

Lithonia Lighting ECRG LED Red/Green Emergency Exit Sign with Square Frog Eyes
Lithonia Lighting ECRG LED Red/Green Emergency Exit Sign with Square Frog Eyes
Specifications
Specifications
| Part Number# | ECRG |
|---|---|
| Type of Area: | Home & Architectural, Large Retail & Open Areas, Office & Small Retail, Stairwell |
| Lumen Output: | 113 |
| Wattage: | 4 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 2 Year Warranty, FCC Compliant, NEC, NFPA, OSHA, UL Listed |
| CRI: | 75 |
| Dimensions: | 19.09" x 4.33" x 7.95" |
| Width: | 4.33" |
| Length: | 19.09" |
| Height: | 7.95" |
| Dimmable: | No |
| Product Warranty: | 2 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.09 lbs |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:

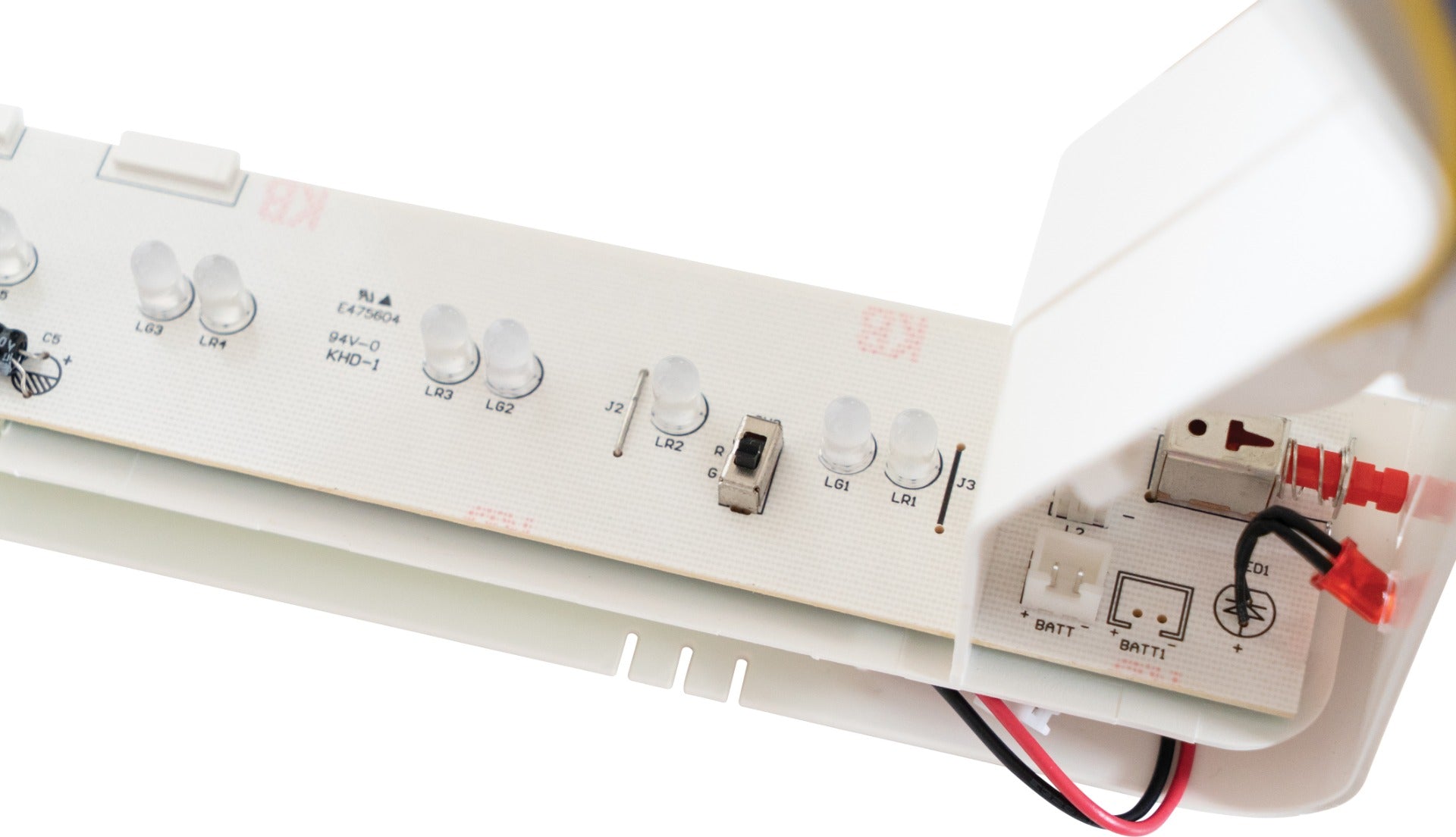

The Lithonia Lighting Basics™ ECRG is a combination of exit and emergency lighting. The ECRG is ideal for safely illuminating the path of egress above the door in small spaces at lower mounting heights while providing 90 minutes of emergency power. Contains the ability to switch between red and green letters. Offered in the new bright white thermoplastic housing, the ECRG has a classic design with updated features. This fully assembled single-face exit comes with an extra faceplate and red and green panel inserts for ultimate field configurability.
Intended Use:
Combination emergency lighting unit and exit. Ideal for applications requiring low profile, emergency unit for lower mounting heights.
Construction:
The housing is a standard white thermoplastic with a compact and low-profile design with
an all-inclusive lamp, reflector, and lens assembly. It is 5VA flame-rated and impact-resistant.
Optics:
The typical life of the LED lamp is 10 years. Two 0.75W LED lamps for emergency light.
Electrical:
Dual-voltage input 120V or 277V AC; 9.6V output. Bi-color LED status indicator for battery condition. (Green-normal, Red-check battery). The battery is 3.6V maintenance-free, rechargeable, Nickel metal hydride.
Installation:
Top, end, and back mount. The mounting pattern on the canopy (top and side mount) and back plate (back mount) fit most standard-size junction boxes.
Listings:
UL Listed. Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), FCC Title 47, Part 15, Subpart B, and OSHA. Indoor damp location 50°F to 104°F (10°C to 40°C) listed.
Warranty:
2-year limited warranty. Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
