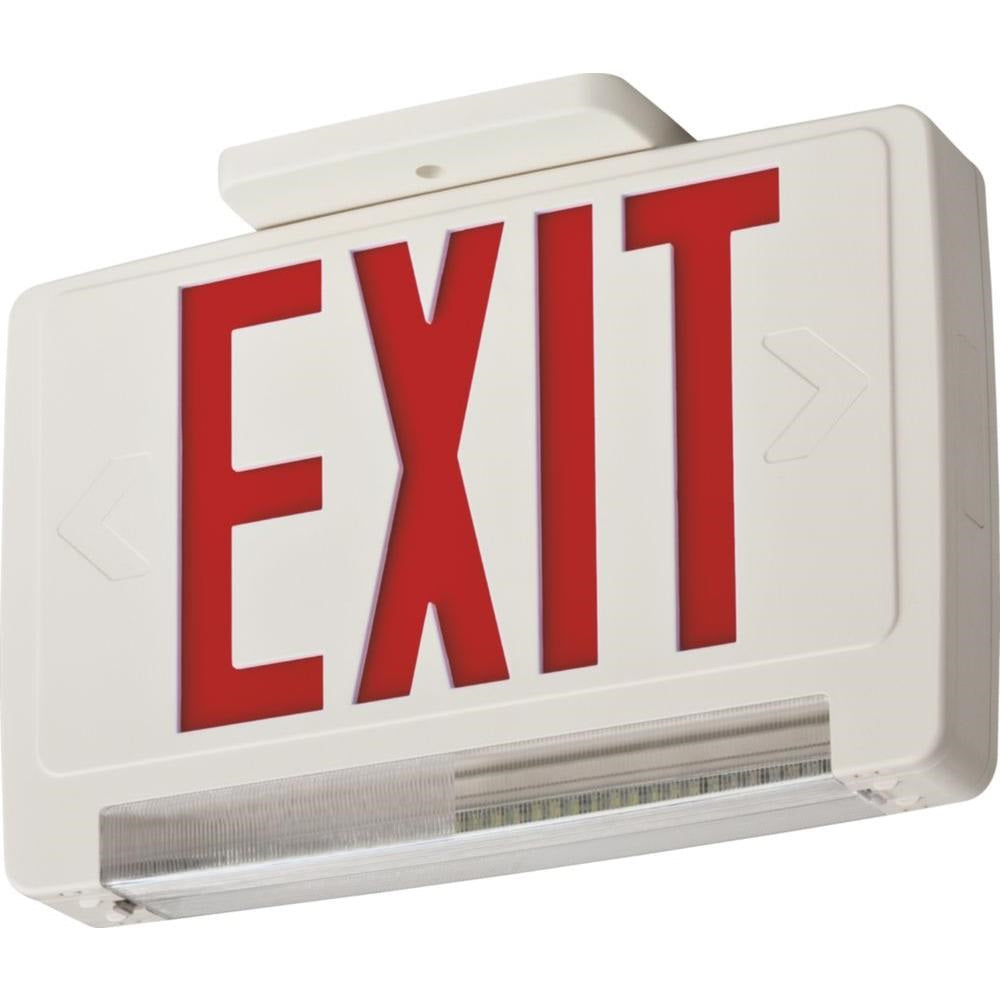

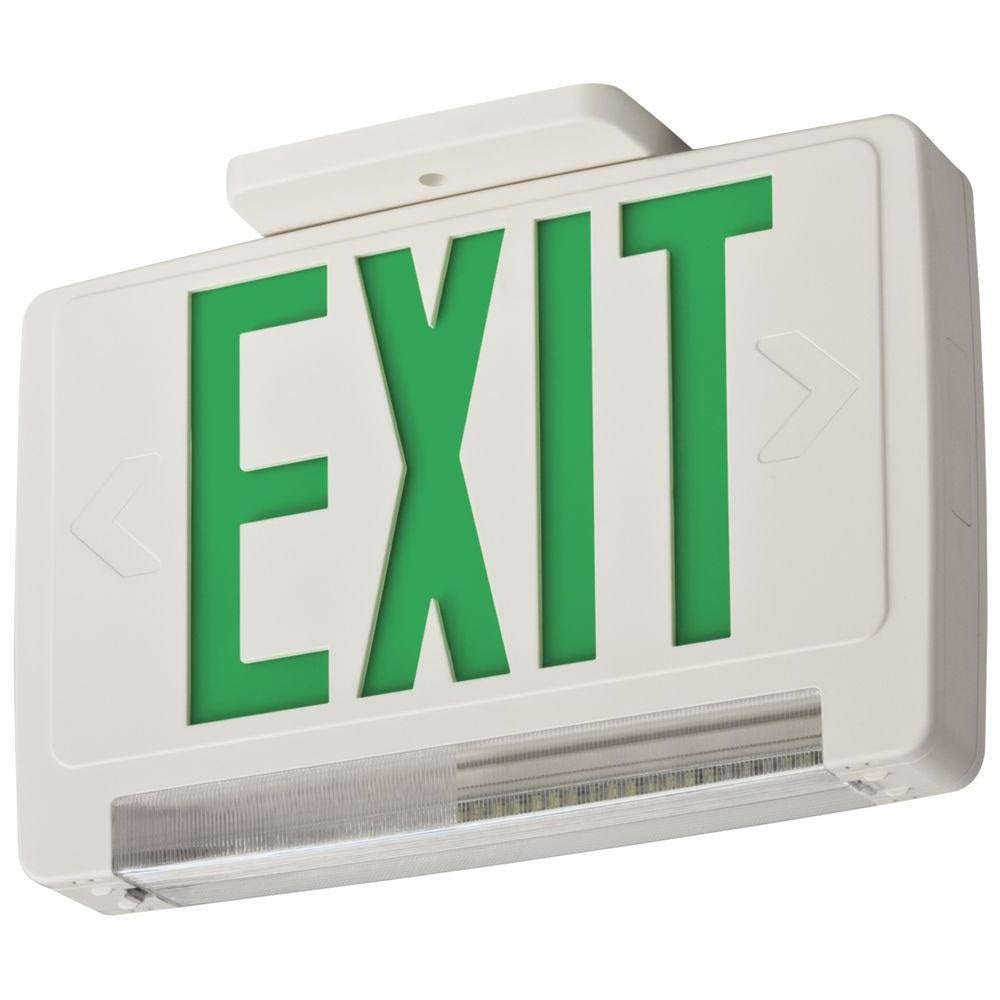

Lithonia Lighting ECB Red and Green Integrated LED Exit and Emergency Light Bar Combo Fixture
Lithonia Lighting ECB Red and Green Integrated LED Exit and Emergency Light Bar Combo Fixture
Specifications
Specifications
| Part Number# | Lithonia-ECB |
|---|---|
| Type of Area: | Home & Architectural, Large Retail & Open Areas, Office & Small Retail, Stairwell |
| Lamp Life: | 100,000 Hours |
| Wattage: | 3 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 2 Year Warranty, FCC Compliant, NFPA, OSHA, UL Listed |
| Dimensions: | 12.63" x 1.88" x 9.12" |
| Width: | 1.88" |
| Length: | 12.63" |
| Height: | 9.12" |
| Dimmable: | No |
| Product Warranty: | 2 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 2.60 lbs |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
Lithonia's Lighting's LED Exit and Light combo fixtures provide an LED exit sign and emergency lighting unit with battery backup in one compact design. Delivers extremely bright LEDs visible up to 100 feet away and has a swivel feature to adjust the direction of the light. Strong and durable housing made of impact-resistant and flame-retardant thermoplastic for emergency conditions and designed to last up to 10 years.
Intended Use:
Unique design combines an energy-efficient LED exit sign with an integrated LED emergency light bar, into one low-profile unit.
Construction:
Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components for easy installation. Universal J-box pattern. Universal chevrons are easily removed for directional indication. Fully assembled single face with extra faceplate for easy field conversion to double face. Integrated LED emergency light bar swivels to allow for a full range of light adjustments. Letters 6" high with 3/4" stroke, with 100 ft viewing distance rating, based on UL924 standards.
Optics:
White LEDs are in series providing redundant light sources to ensure emergency lighting performance. The typical life of the exit LED lamp is 10 years. 1.5W per face.
Electrical:
Dual-voltage input 120V or 277V AC; 9.6V output. Emergency combo provided with test switch, status indicator, and rechargeable battery. Maintenance-free nickel-cadmium high-output battery standard provides 90 minutes of emergency power and provides up to 3W of LED remote capacity.
Installation:
Top, back, or end mounting capability (canopy included).
Listings:
UL Listed. Meets UL 924, NFPA 101, NFPA 70-NEC, and OSHA illumination standards. Indoor damp location
0°C to 50°C (32°F to 122 °F) listed standard.
Warranty:
2-year limited warranty. Complete warranty terms located at: www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
All life safety equipment, including emergency lighting for path of egress, must be maintained, serviced, and tested in accordance with all National Fire Protection Association (NFPA) and local codes. Failure to perform the required maintenance, service, or testing could jeopardize the safety of occupants and will void all warranties.
NOTE: Actual performance may differ as a result of end-user environment and application.
All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
