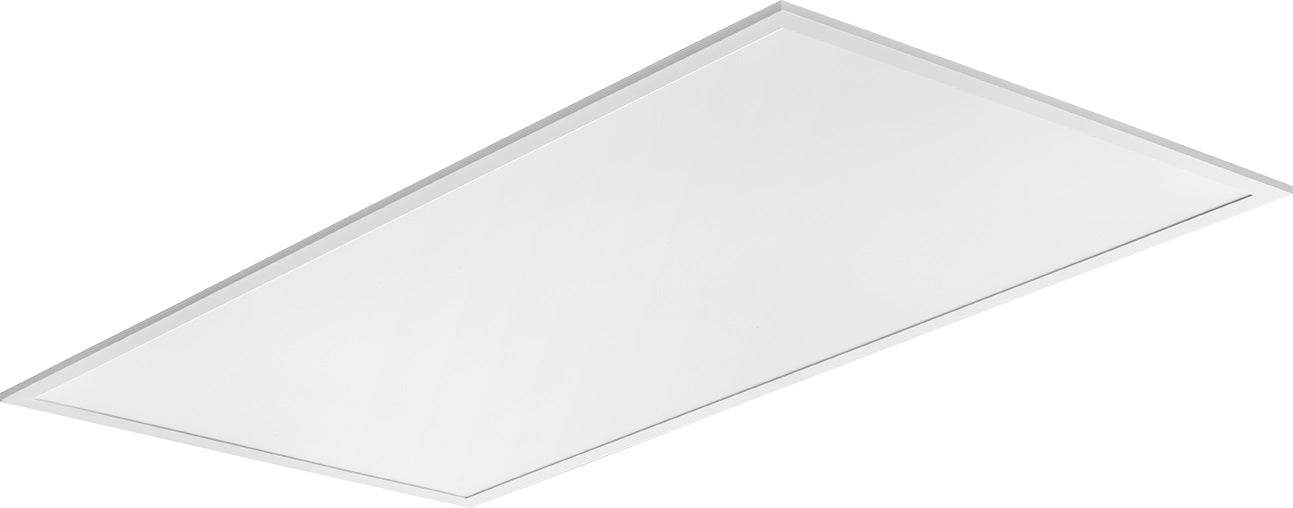

Introduction to CPX 2X4

The Lithonia Lighting CPX 2X4 ALO8 SWW7 M2 is engineered to deliver a crisp and clean aesthetic while providing superior illumination for a wide range of commercial spaces. This high-quality LED flat panel is designed with versatility in mind, making it the perfect choice for budget-conscious schools, commercial offices, and small retail footprint projects. With its adjustable light output and high efficiency driver, the CPX 2X4 ALO8 SWW7 M2 ensures optimal lighting performance and extended service life. Whether you’re upgrading an existing space or outfitting a new build, this LED flat panel offers a modern solution that combines energy savings with a sleek, unobtrusive design. The CPX 2X4 ALO8 SWW7 M2 stands out as a reliable, cost-effective option for those seeking a clean aesthetic and superior illumination in their lighting fixtures.

Product Features

The Lithonia Lighting CPX 2X4 ALO8 SWW7 M2 LED flat panel is packed with features that make it a standout choice for commercial lighting. Its low-profile, low glare panel design allows for increased installation flexibility, especially in restricted plenum spaces where traditional fixtures may not fit. The extruded aluminum frame provides durability and a modern look, while the satin white lens ensures excellent shielding and uniform luminance across the entire LED flat panel. Installation is quick and secure thanks to integral T-bar clips, making it ideal for T-grid ceilings commonly found in commercial environments. The LED flat panel’s adjustable lumen (ALO8) and switchable white (SWW7) capabilities allow users to tailor the lighting output and color temperature to suit specific needs, ensuring the right ambiance and energy efficiency for any application. With these advanced features, the CPX 2X4 ALO8 SWW7 M2 delivers both performance and adaptability for today’s demanding lighting projects.

Construction

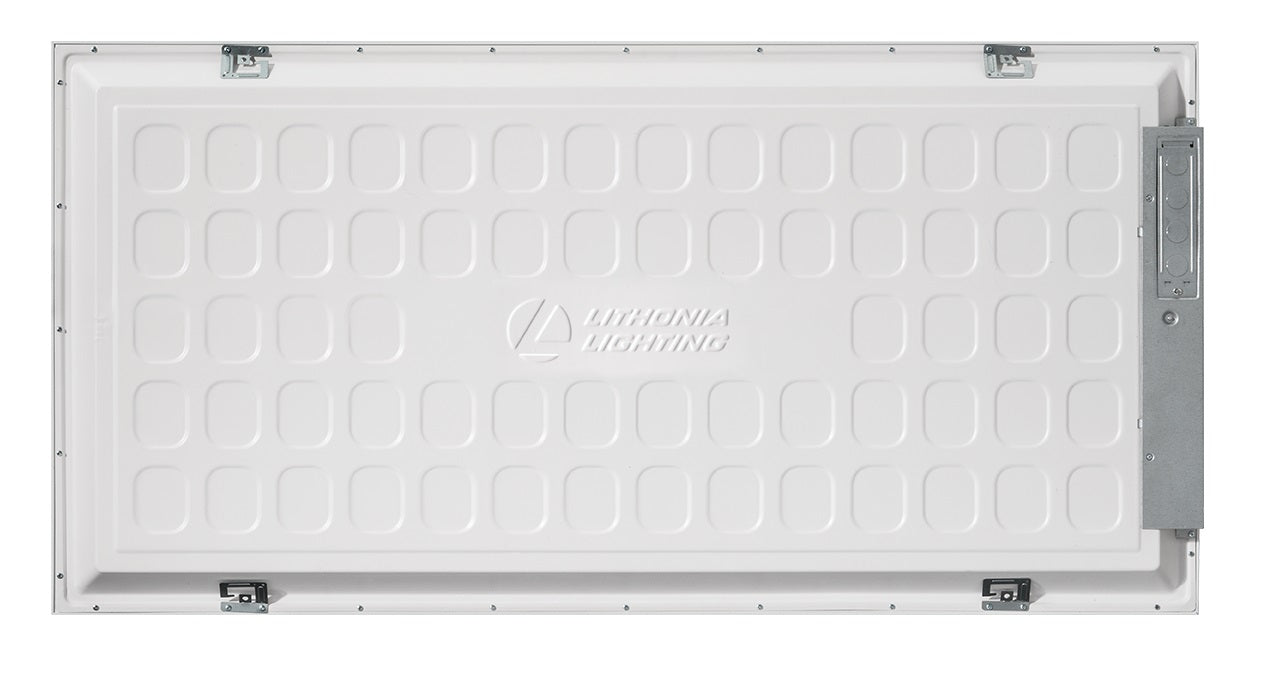

The extruded aluminum frame with a satin white lens provides excellent shielding and uniform luminance. The low-profile design of the Lithonia Lighting CPX panel provides increased installation flexibility, especially in restricted plenum spaces. The backplate includes integral T-bar clips for installation into T-grid ceilings. This design not only ensures a sleek and modern appearance but also facilitates quick and secure mounting, reducing installation time and labor costs. The durable aluminum construction enhances heat dissipation, contributing to the longevity and consistent performance of the LED panel. Additionally, the satin white lens helps to minimize glare and distribute light evenly, creating a comfortable and visually appealing environment suitable for various commercial settings. The compatibility with standard T-grid ceilings makes this fixture an ideal choice for retrofitting existing spaces as well as new construction projects, offering versatility across many applications.

Electrical

Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life. Greater than 70% LED lumen maintenance at 50,000 hours (L70>50,000). 0-10V dimming driver dims to 10% and contains non-isolated dimming leads. This means the fixture not only offers impressive longevity but also allows users to customize lighting levels to suit different environments and preferences, enhancing energy savings and comfort. The non-isolated dimming leads simplify integration with existing lighting control systems, making installation and upgrades more straightforward. With such advanced features, the CPX 2X4 ALO8 SWW7 M2 ensures consistent performance and adaptability, meeting the needs of various commercial applications while reducing operational costs over time.

Benefits of CPX 2X4 ALO8 SWW7 M2

Choosing the Lithonia Lighting CPX 2X4 ALO8 SWW7 M2 LED flat panel means benefiting from energy-efficient lighting that doesn’t compromise on quality. The LED flat panel’s high efficiency driver and long life LEDs provide superior illumination while keeping energy consumption and maintenance costs low. Its low glare panel featuring a smooth, even lens creates a visually comfortable environment, reducing eye strain and enhancing productivity in commercial settings. The extended service life of the CPX 2X4 ALO8 SWW7 M2 ensures consistent, reliable lighting over time, making it a cost-effective solution for projects with tight budgets. Whether you’re outfitting a new office, school, or retail space, this LED flat panel delivers the performance and value needed for modern commercial lighting.

Technical Specifications

The CPX 2X4 ALO8 SWW7 M2 from Lithonia Lighting is designed to meet the rigorous demands of commercial lighting applications. It offers a selectable color temperature range of 3500K, 4000K, or 5000K, allowing for tailored lighting environments. With a lumen output spanning from 3813 to 6563 lumens and a fixture wattage range of 28.1 to 50.56 watts, this LED flat panel provides both flexibility and efficiency. The CPX 2X4 ALO8 SWW7 M2 is CSA certified, IC rated, and damp location listed, ensuring it meets Canadian standards and is suitable for a variety of installation conditions. As a DLC qualified product, it is eligible for energy rebates and incentives. The inclusion of non-isolated dimming leads allows for seamless integration with dimming controls, giving users precise command over their lighting. These technical features make the CPX 2X4 ALO8 SWW7 M2 a reliable and adaptable choice for commercial lighting needs.

Applications and Intended Uses

The CPX LED panel features a low-glare design with an external driver, offering a cost-effective and reliable lighting solution that is visually comfortable and suitable for recessed mounting. The versatile CPX 2X4 ALO8 SWW7 M2 LED flat panel is ideal for a wide range of commercial applications, including schools, offices, retail spaces, convenience stores, and other commercial environments. While certain airborne contaminants can affect the integrity of the acrylic lens, the panel delivers uniform luminance and visually comfortable light output, making it perfect for commercial offices, schools, retail settings, and convenience stores. Its slim profile and compatibility with T-grid ceilings make it especially suitable for installation in restricted plenum spaces, providing enhanced flexibility where space is limited. Whether you are designing a new workspace or upgrading existing lighting, the CPX 2X4 ALO8 SWW7 M2 LED flat panel offers the performance, adaptability, and energy efficiency needed for modern commercial lighting. With its advanced features and durable construction, this LED flat panel is an excellent choice for applications demanding high-quality lighting.

Listings

CSA certified to meet US and Canadian standards. Damp location listed. IC rated. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC-qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.

Warranty

5-year limited warranty. Complete warranty terms located at: www.acuitybrands.com/support/customer-support/terms-and-conditions Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications are subject to change without notice.
