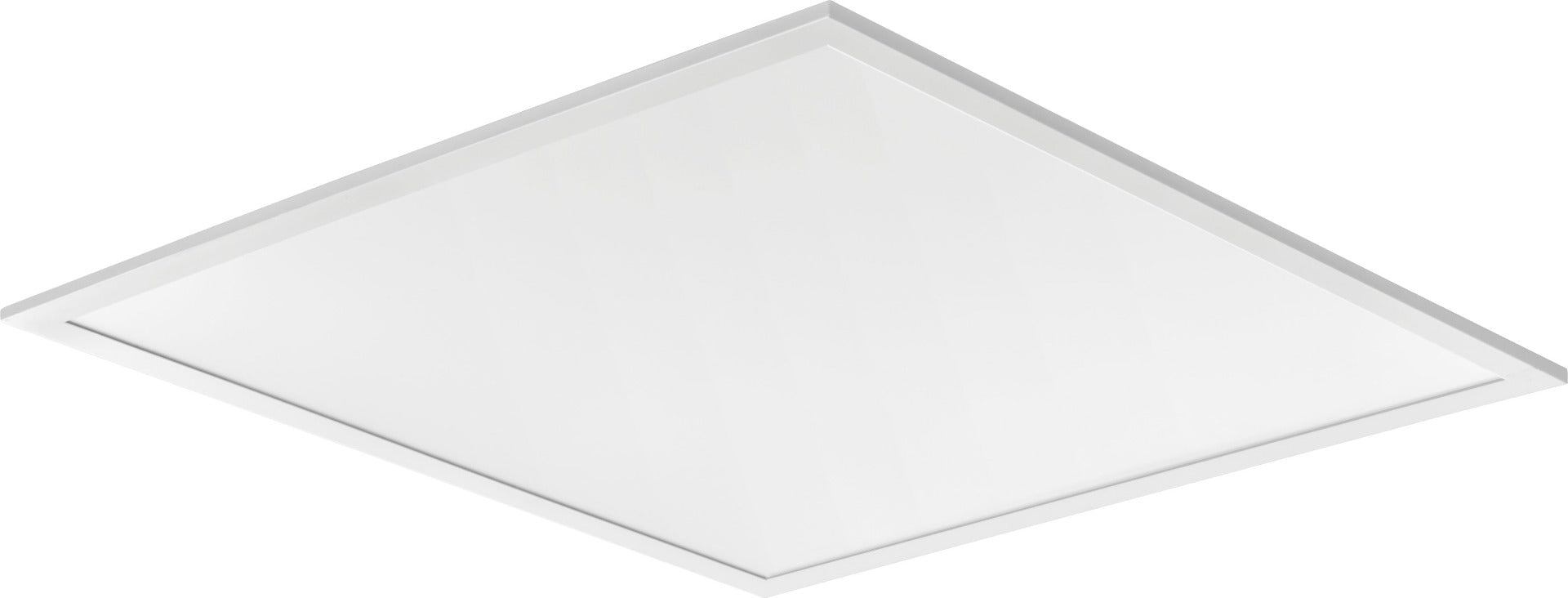

Lithonia Lighting CPX 2X2 ALO7 SWW7 M4 DLC Listed LED 2X2 Switchable White and Adjustable Light Output LED Flat Panel Fixture
Lithonia Lighting CPX 2X2 ALO7 SWW7 M4 DLC Listed LED 2X2 Switchable White and Adjustable Light Output LED Flat Panel Fixture
Specifications
Specifications
| Part Number# | CPX 2X2 ALO7 SWW7 M4 |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,399 - 4,212 |
| Ballast Factor: | 1.00 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CSA, Dimmable, DLC Approved |
| CRI: | 80+ |
| Dimensions: | 23.80" x 23.80" x 1.70" |
| Width: | 23.80" |
| Length: | 23.80" |
| Height: | 1.70" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 12.02 lbs |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED - New Fixture |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
The 2 ft. x 2 ft. CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. This CPX configuration offers Adjustable Light Output (ALO) for the option of 2400-4200 lumens and Switchable White (SWW) for three color temperature in one - 35/40/50K CCT. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects. Adjustable Lumen Output (ALO) and Switchable White (SWW) features allow for this panel to offer 9 potential configurations within one fixture, using two switches.
Features:
• Industry standard wattages
• Long-life LEDs maintain greater than 70% of their lumen output at 50,000 hours
• 0-10V dimming driver, dims to 10%
Intended Use:
CPX is a low-glare panel featuring an external driver. This cost-effective, reliable panel is visually comfortable and can be recessed mounted. Suitable for many applications such as schools, offices, retail, convenience stores and other commercial spaces. Certain
airborne contaminants can diminish integrity of acrylic. Click here for Acrylic Environmental Compatibility table for suitable uses. Adjustable Lumen (ALO7, ALO8) and Switchable White (SWW7) configurations available. U.S. Patent No. 10,681,784.
Construction:

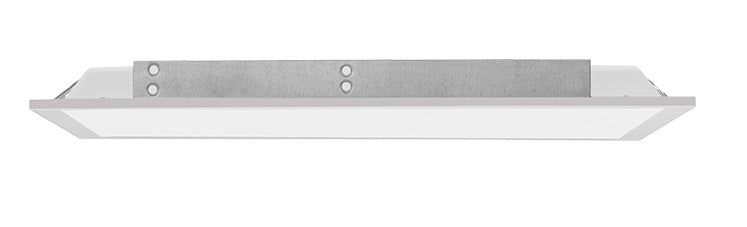

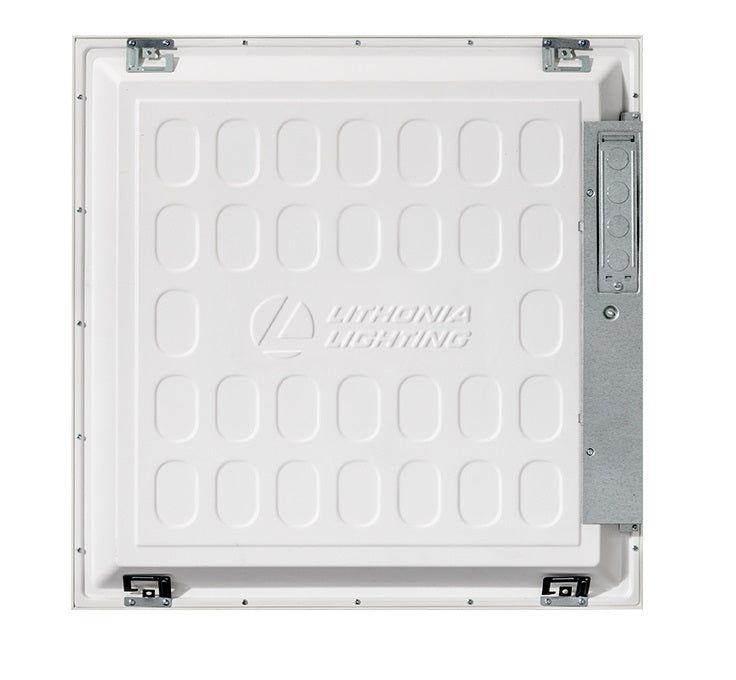

The extruded aluminum frame with satin white lens provides excellent shielding and uniform luminance. The low-profile design of CPX provides increased installation flexibility especially in restricted plenum spaces. The backplate includes integral T-bar clips for installation into T-grid ceilings.
Electrical:
Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life. Greater than 70% LED lumen maintenance at 50,000 hours (L70>50,000). 0-10V dimming driver, dims to 10% and contains non-isolated dimming leads.
Listings:
CSA certified to meet US and Canadian standards. Damp location listed. IC rated. DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
Warranty:
5-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/support/customer-support/terms-and-conditions Note: Actual performance may differ as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C.
Specifications subject to change without notice.
