Lithonia Lighting CPHB Series DLC Premium Listed Linear LED High Bay Fixture
Lithonia Lighting CPHB Series DLC Premium Listed Linear LED High Bay Fixture
Specifications
Specifications
| Part Number# | CPHB |
|---|---|
| Type of Area: | Industrial & Warehouse |
| Lamp Life: | 100,000 Hours |
| Ballast Factor: | 1.00 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CSA, Dimmable, DLC Premium |
| CRI: | 80 |
| Dimensions: | 14" (12LM - 18LM) 22" (24LM - 30LM) See Spec Sheet |
| Width: | 11.52" |
| Length: | 14.44" or 22.84" |
| Height: | 2.42" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

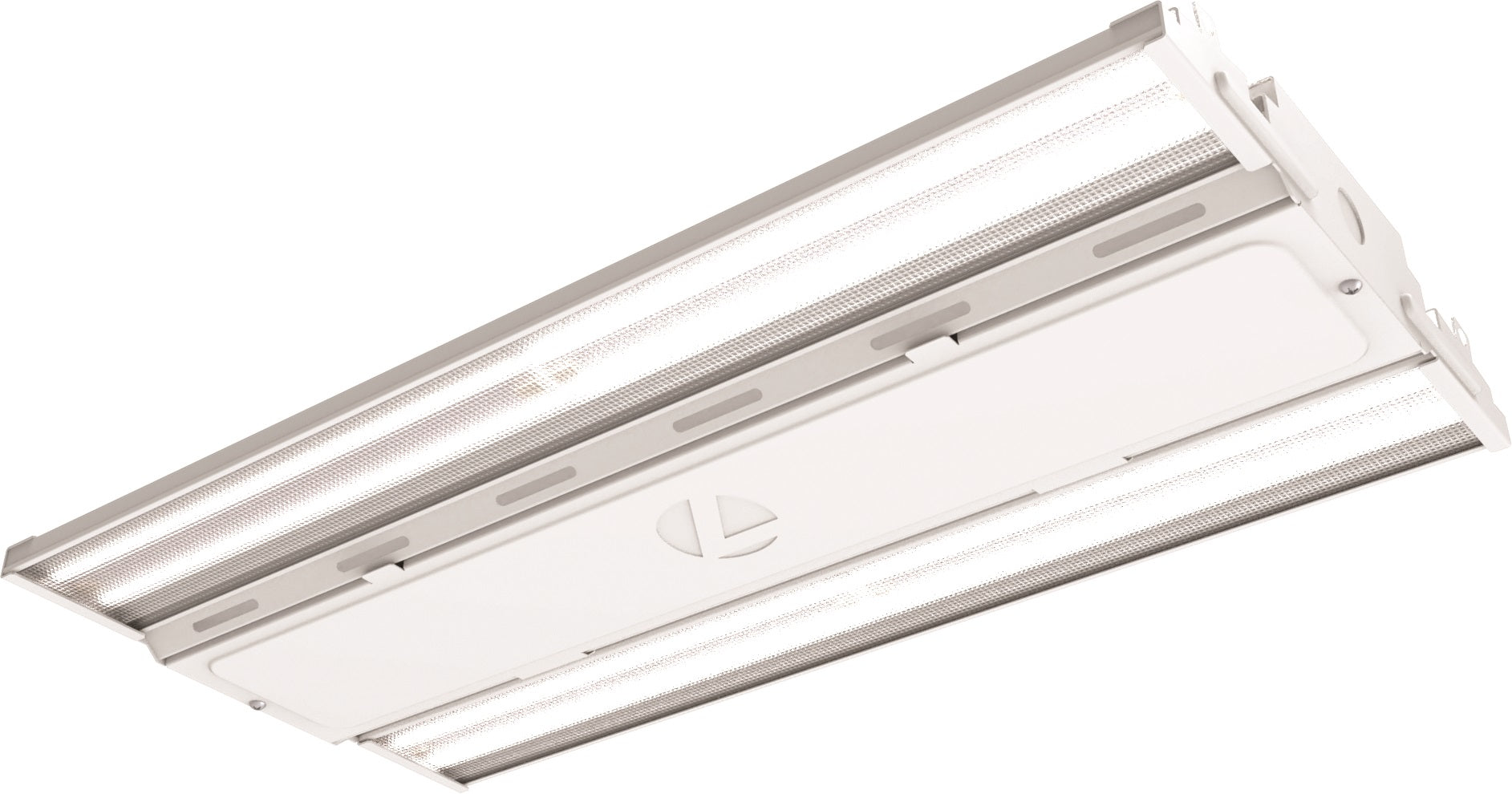

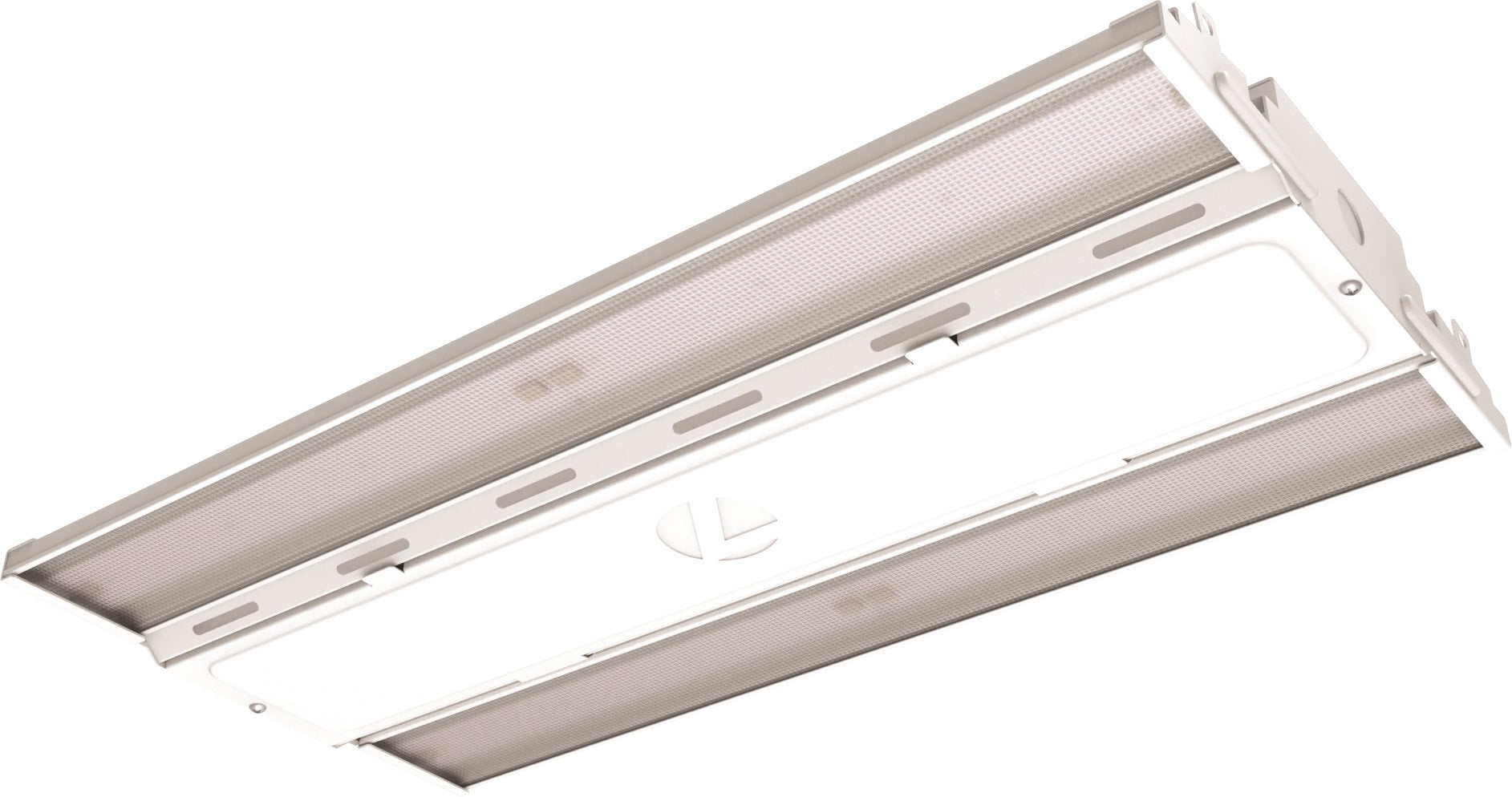

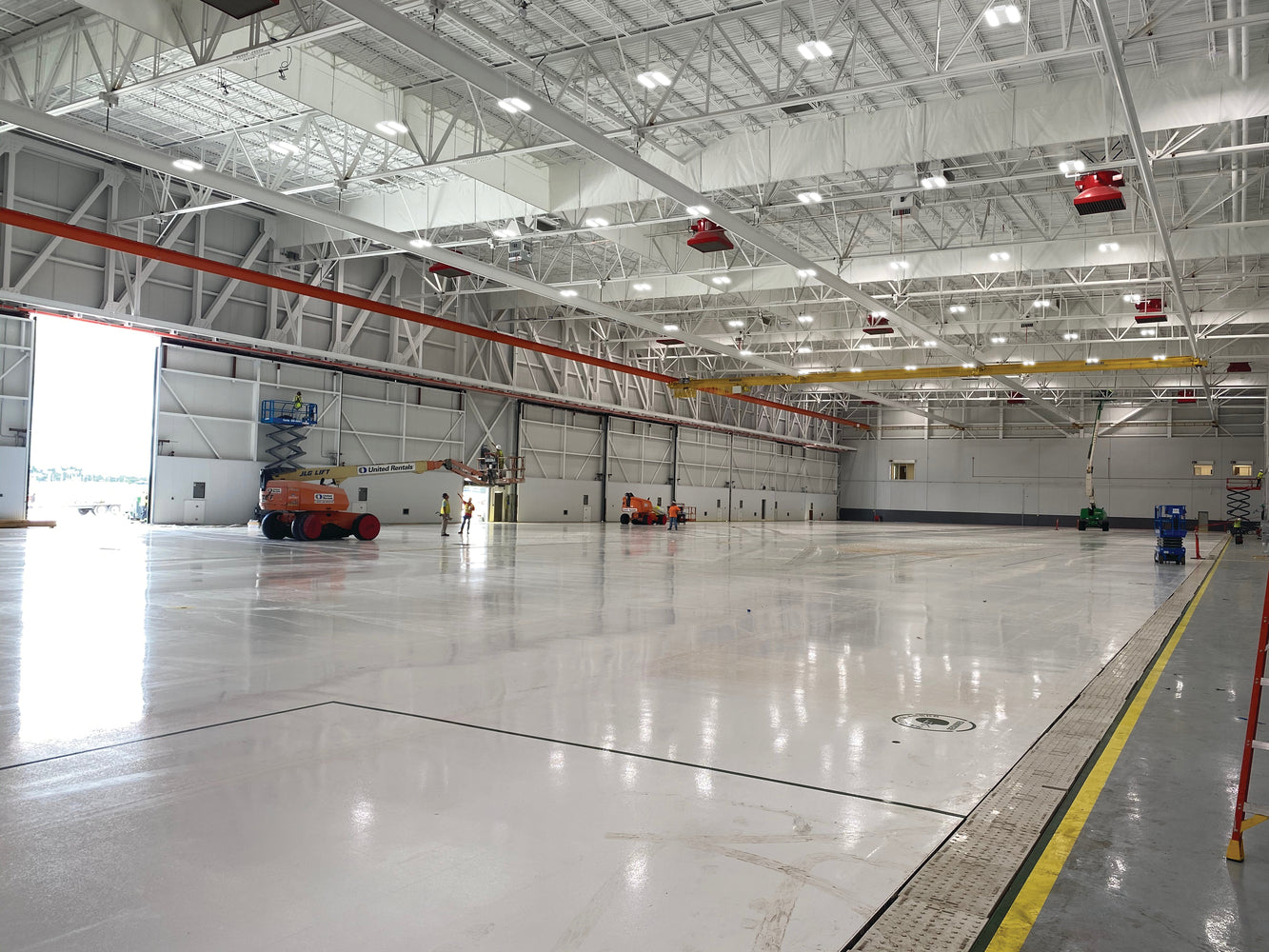

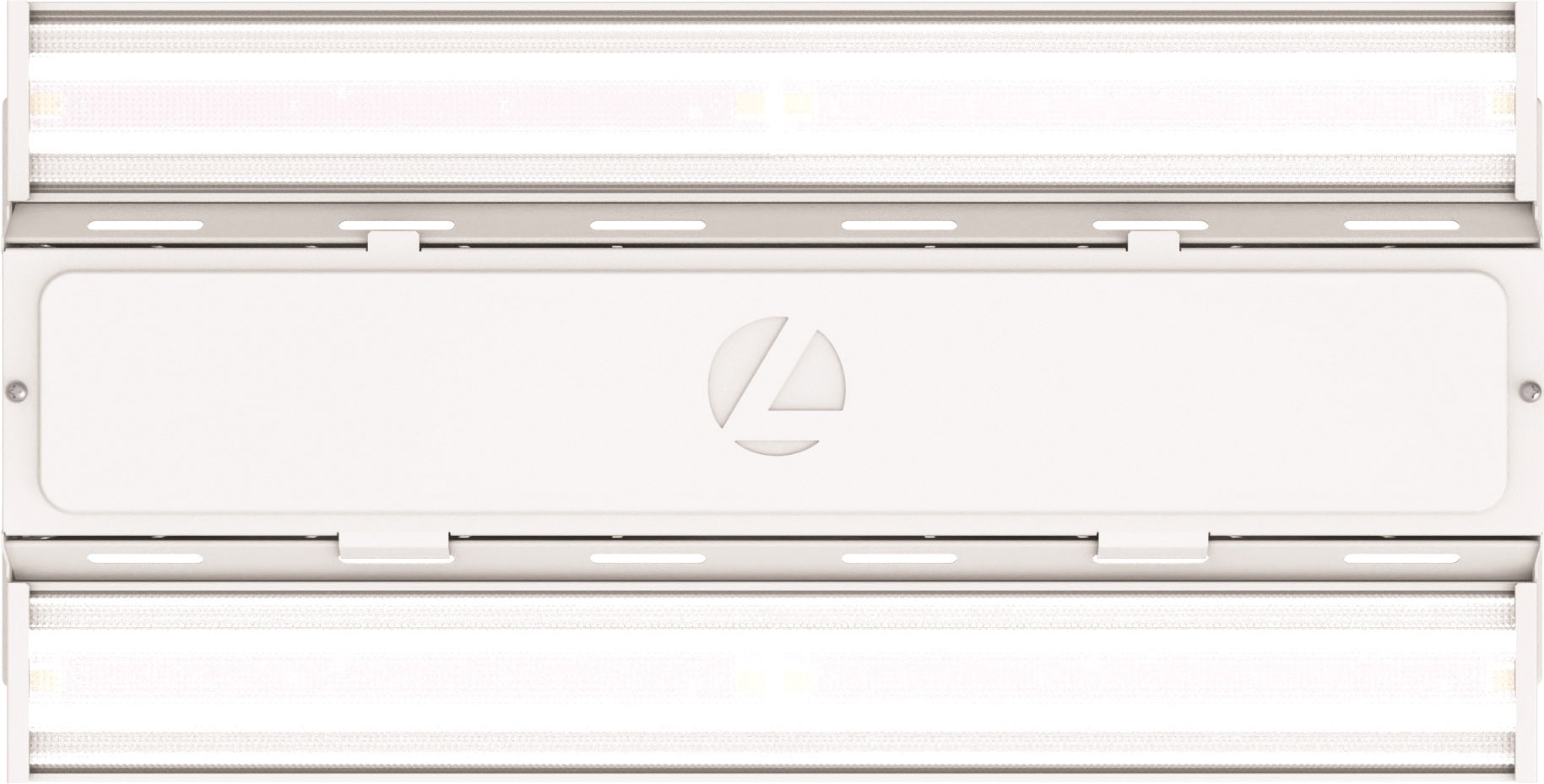

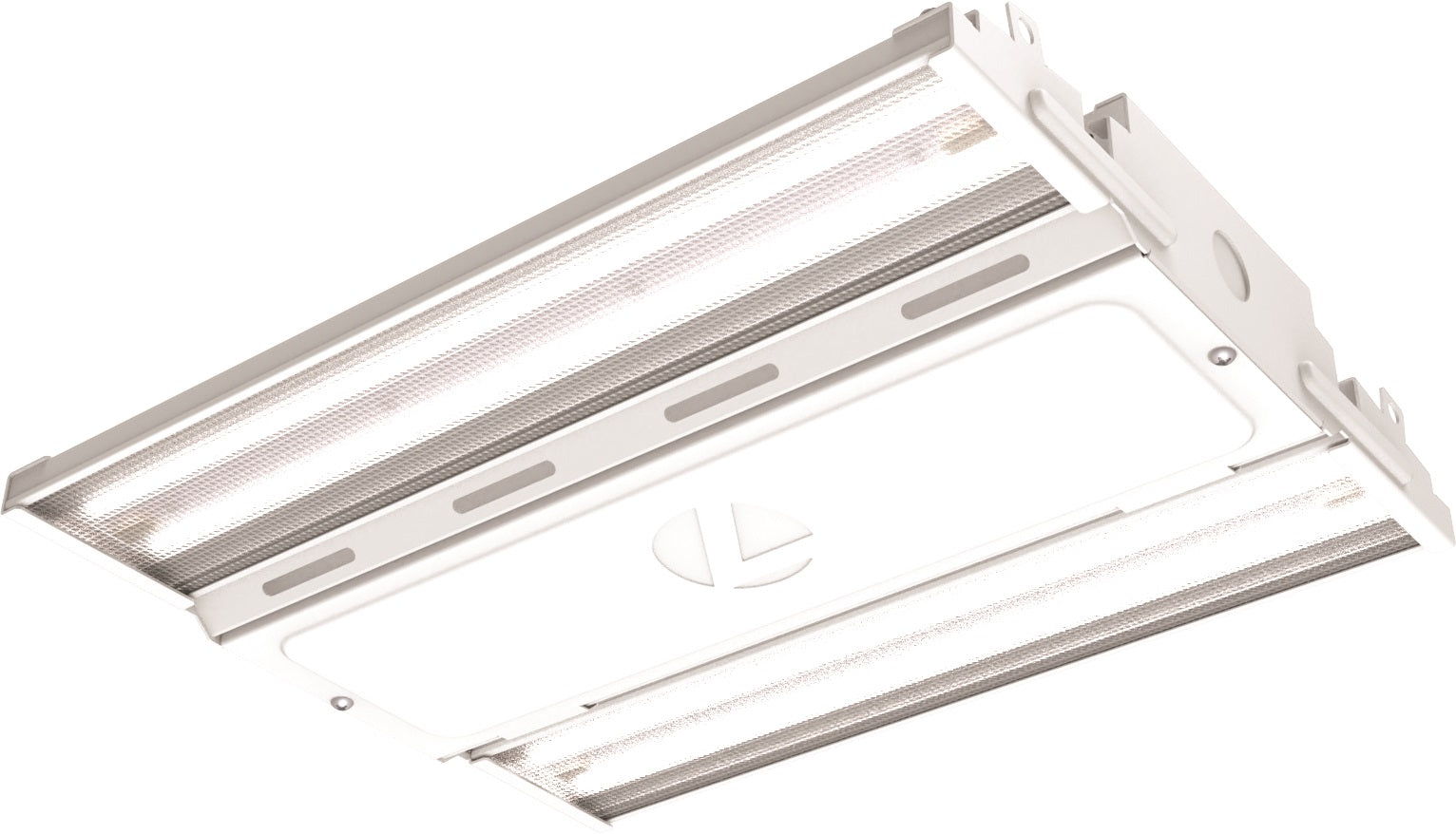

The Compact Pro High Bay by Lithonia Lighting® delivers an industrial-grade lighting solution in an exceptionally compact fixture that provides for cheaper shipping, condensed storage, and quicker installation. Built with quality to last and performance to get the job done at an affordable price for a base-level product. A great choice for affordable and reliable light-duty industrial applications like warehouses. Compact Pro optics deliver true 1 for 1 matching performance to larger high bays providing you the same amount of light.
Features:
• Compact design saves time and money during installation
• Innovative Glare Control lens meets new DLC 5.1 standards
• Robust 6kV surge protection standard per ANSI standards for Industrial environments
• Operates up to 55°C ambient

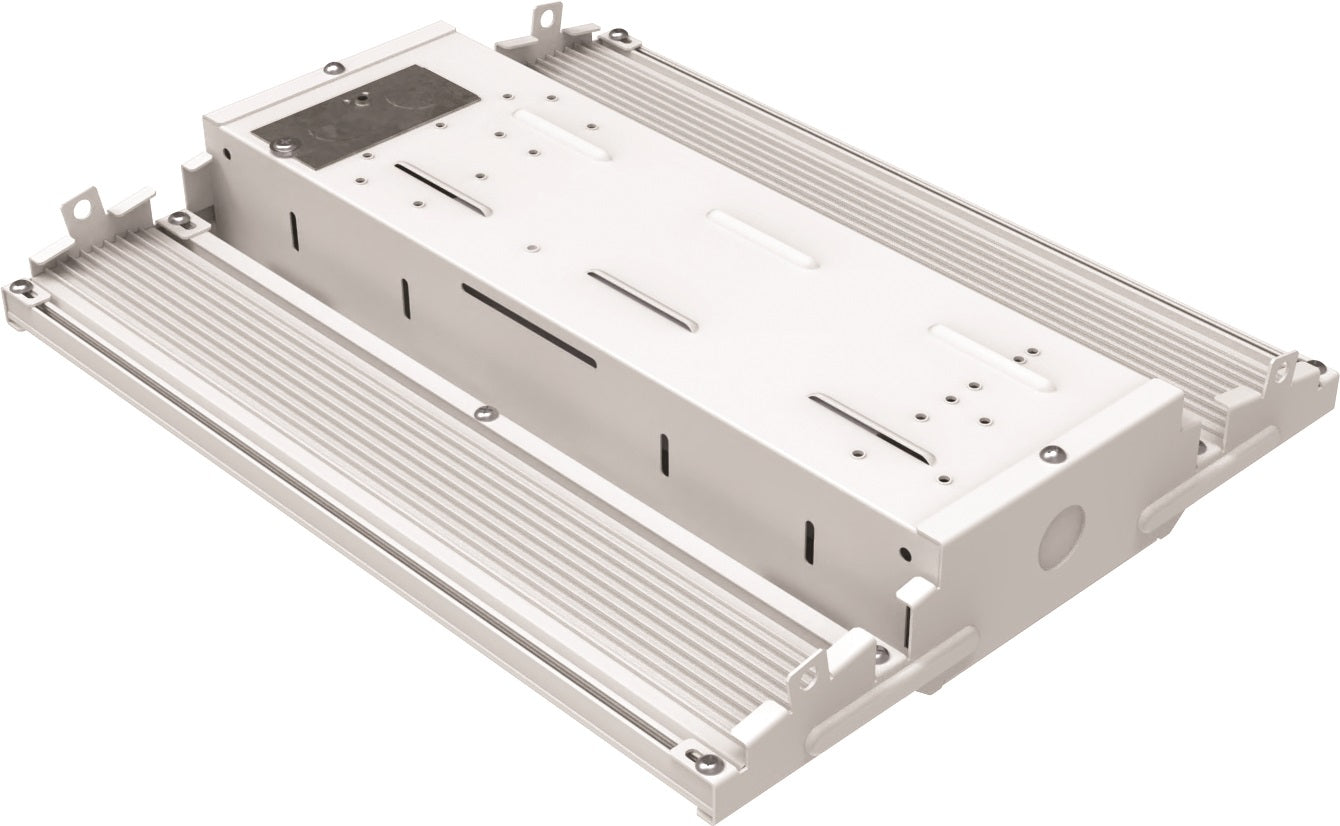

• Includes mounting hardware (V-hook & 36" hanger chain)
