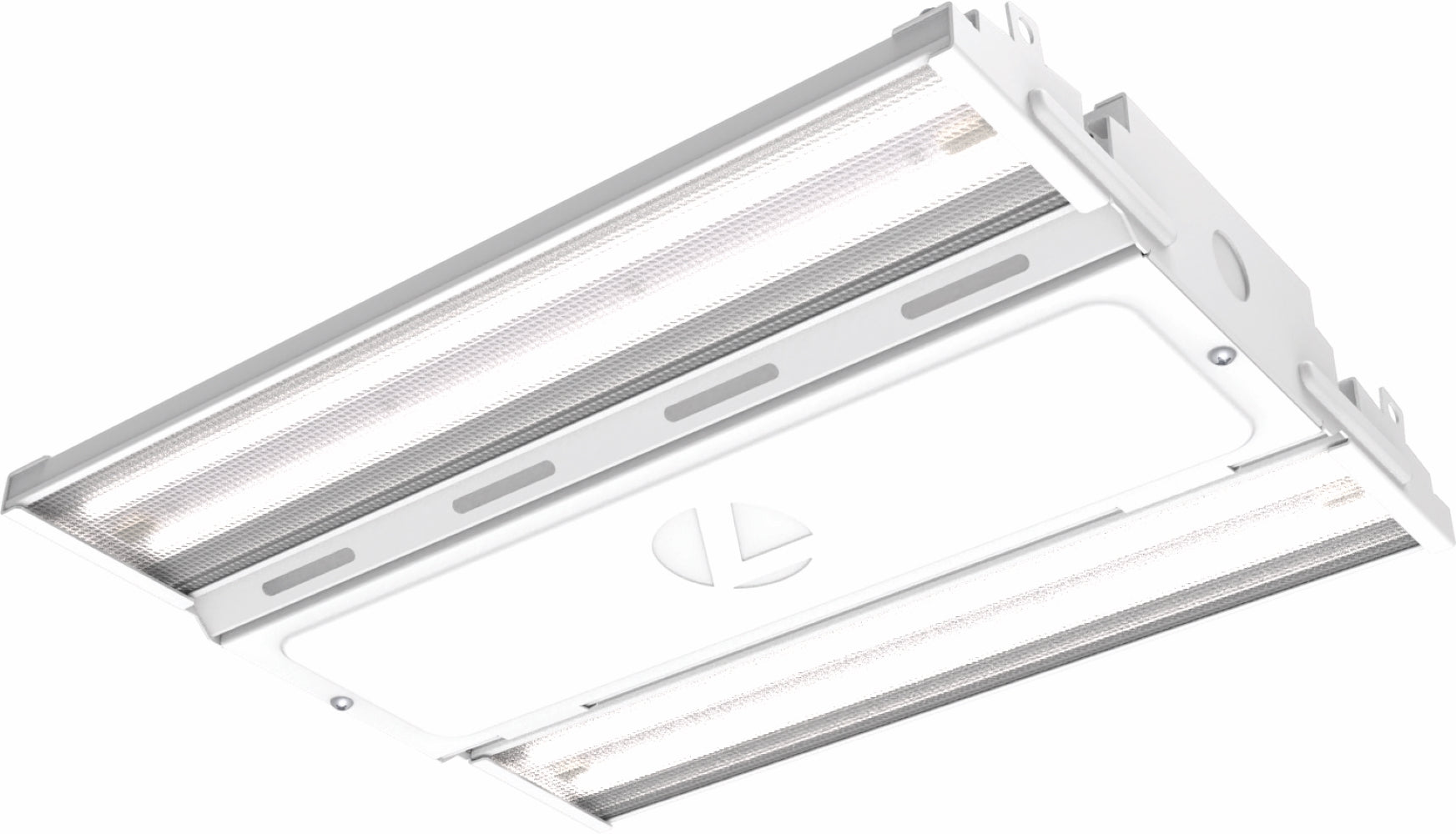

Lithonia Lighting CPHB ALO13 Compact Pro LED Linear High Bay Fixture Dimmable Replaces 250W HID
Lithonia Lighting CPHB ALO13 Compact Pro LED Linear High Bay Fixture Dimmable Replaces 250W HID
Specifications
Specifications
| Part Number# | CPHB ALO13 MVOLT SWW9 80CRI DWH |
|---|---|
| Type of Area: | Industrial & Warehouse, Factory / Industrial |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 12,000 / 15,000 / 18,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 250W HID Equivalent, ANSI, CSA, Dimmable, DLC Premium |
| CRI: | 80 |
| Dimensions: | 14" x 11.5" x 2.4" |
| Width: | 11.5" |
| Length: | 14" |
| Height: | 2.4" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 6.6 lbs |
| Manufacturer: | Lithonia Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This Compact Pro LED High Bay is cost-efficient and compact for easy installation saving more time and money. The 14-Inch high bay features adjustable lumens up to 18,000lm at medium light distribution and color temperatures (4000K/5000K). The fixture is DLC Premium certified with a longer LED life of more than 100,000 hours.
Features:
• TECHNOLOGY: Adjustable Lumen Output (ALO) and Switchable White (SWW) features allow for this panel to offer 12 configurations in 2 SKUs
• ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
• DIMMING: Thermally protected driver standard with 0-10V dimming
• RATINGS: CSA listed, Damp location listed, DLC 5.1 qualified, designed for ambient temperature ranging -40°C to 55°C
• VOLTAGE: Standard MVOLT for 120-277 volts
• HOURS OF LIFE: 70% lumen maintenance at 100,000 hours
• INSTALLATION: Includes V-hanger hardware brackets and 2-36" chain lengths; also suitable for mounting by chain, cable, surface-mount bracket, or hook monopoint
• WARRANTY: 5-year limited warranty
