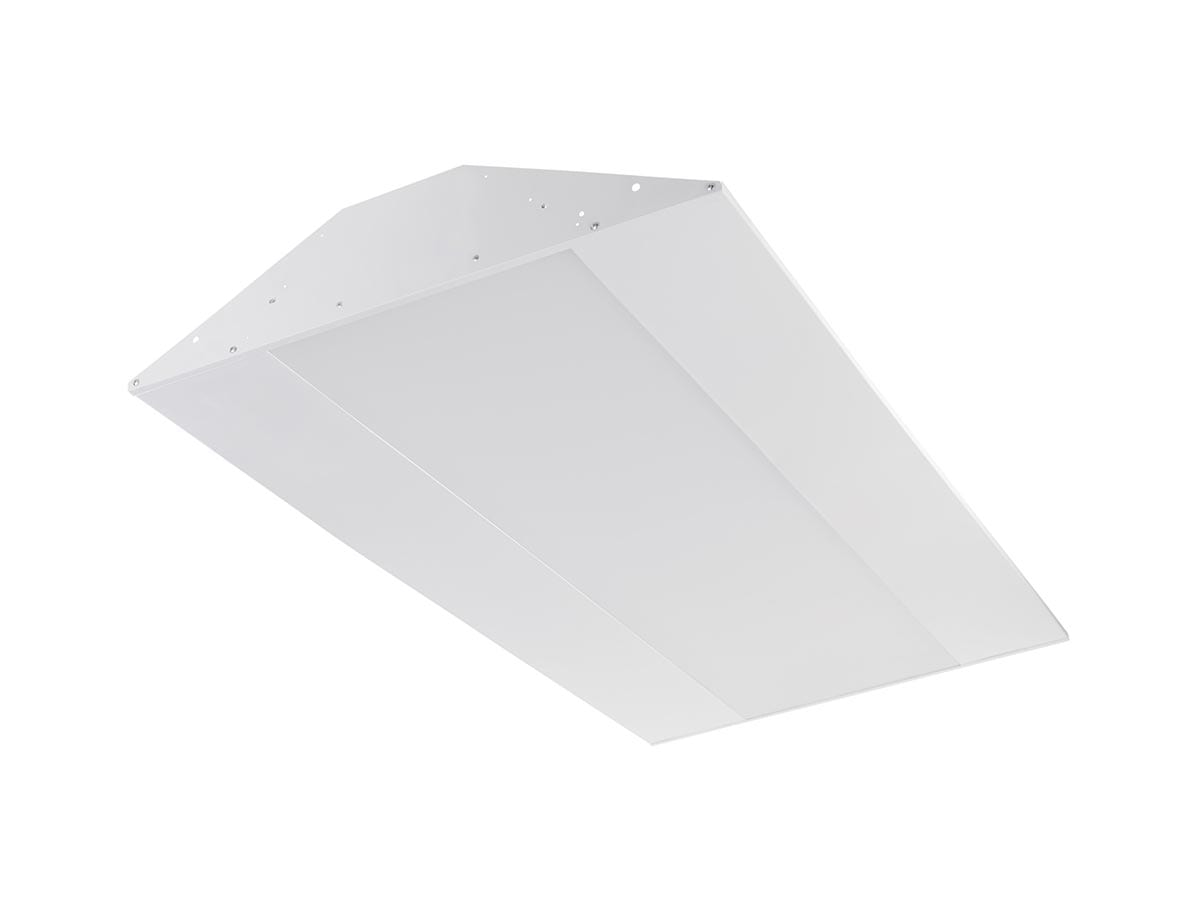

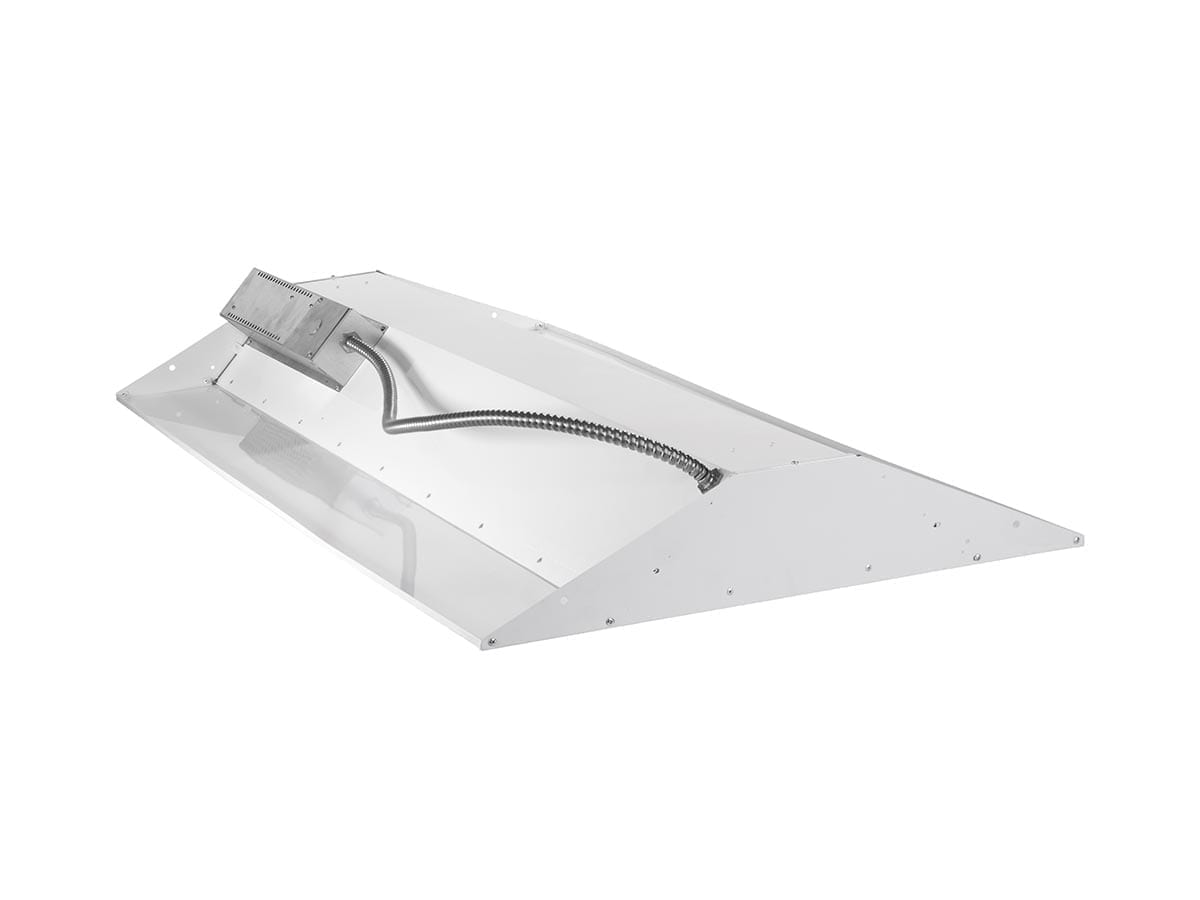

Linmore LED HT1 Series High Output Recessed Troffer Light Fixture Dimmable
Linmore LED HT1 Series High Output Recessed Troffer Light Fixture Dimmable
Specifications
Specifications
| Part Number# | HT10S-A1 |
|---|---|
| Type of Area: | Gym & Sports, Office & Small Retail, Commercial Offices |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 12,000 - 24,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CSA, Dimmable, DLC Approved, ETL Listed, FCC Compliant, LM79 / LM80, Made In America Compliant, ROHS |
| CRI: | 80 |
| Dimensions: | See Spec Sheet |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 11.4 - 17.6 lbs |
| Manufacturer: | LinmoreLED |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This HT1 Series LED High Output Recessed Troffer is built with high bay performance and designed for high ceiling applications. It can be easily mounted using a standard drop or grid ceiling with holes to attach cables. Select from 2x2 or 2x4 sizes available with 12,000 to 24,000-lumen output. The fixture has ultra-long life quality and is back-up by a 10-year warranty.
Key Features:
• 12,000 to 24,000 lumens
• Up to 151 LPW
• Beautiful aesthetics
• Up to 45°C ambient
• Guaranteed light levels for 10 years
• Dimmable 0-10V (standard)
• 6KV surge protection (10KV optional)
Applications:
• Automotive Lighting
• Commercial Lighting
• Office Lighting
• Sports Lighting
