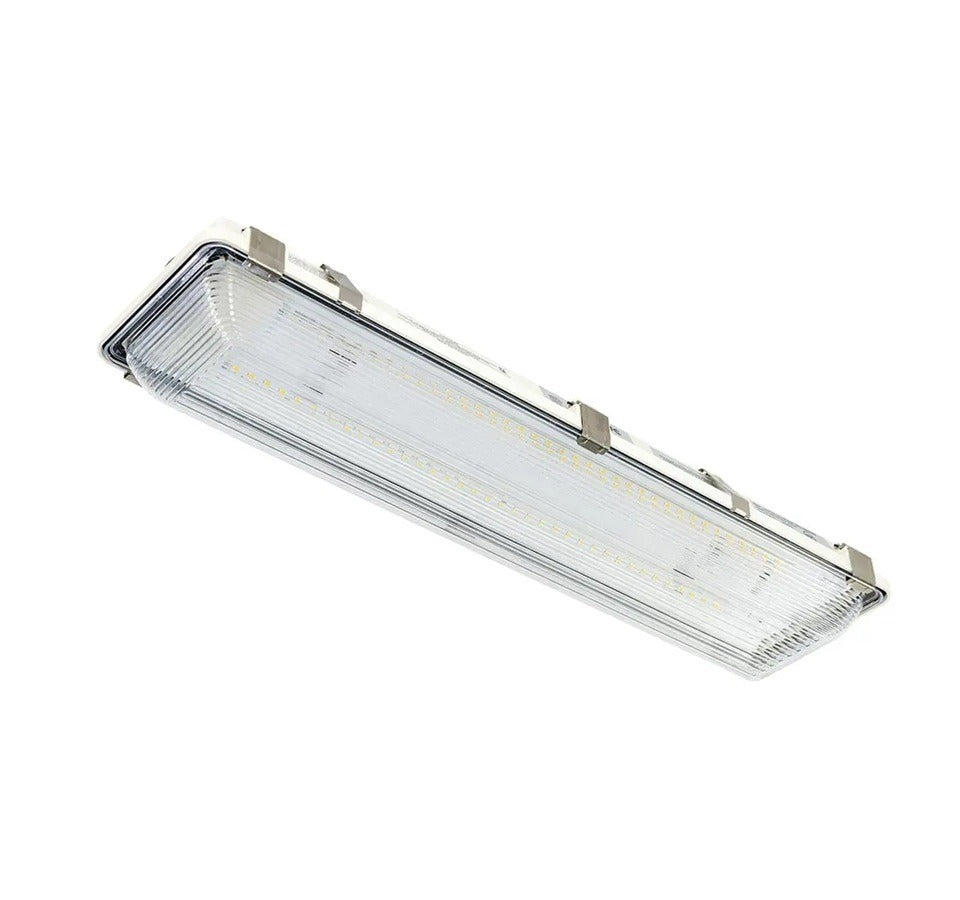

Linmore LED HD20S-A1 DLC Listed Hosedown 2.0 LED Vapor Tight Light Fixture 5000K Dimmable
Linmore LED HD20S-A1 DLC Listed Hosedown 2.0 LED Vapor Tight Light Fixture 5000K Dimmable
Specifications
Specifications
| Part Number# | HD20S-A1 |
|---|---|
| Type of Area: | Industrial & Warehouse, Manufacturing Plants, Parking Garage, Factory / Industrial |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 5,882 - 30,782 |
| Wattage: | 190 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, ANSI, Dimmable, DLC Approved, ETL Listed, FCC Compliant, IP65 / IP66 / IP67, LM79 / LM80, NSF, ROHS, UL Listed |
| CRI: | 80 |
| Width: | 7.25" - 15.2" |
| Length: | 27.3" - 51.8" |
| Height: | 4.8" - 5.9" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 9 - 17 lbs. |
| Manufacturer: | LinmoreLED |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Linmore LED HD2 Series Vapor Tight Light Fixture is a DLC-listed, dimmable LED solution designed for demanding environments. Available in 2ft or 4ft sizes, it delivers between 12,000 and 24,000 lumens of bright 5000K light for reliable illumination. Built to last, it offers a 54,000-hour lifespan and is backed by a 5-year warranty, making it ideal for commercial, industrial, and utility applications.
Features:
• 6,000 to 30,000 lumens
• Up to 168 LPW
• New compact design
• Up to 40°C ambient
• Guaranteed light levels for 5 years
• Dimmable 0-10V (standard)
• 6KV surge protection (10KV optional)
