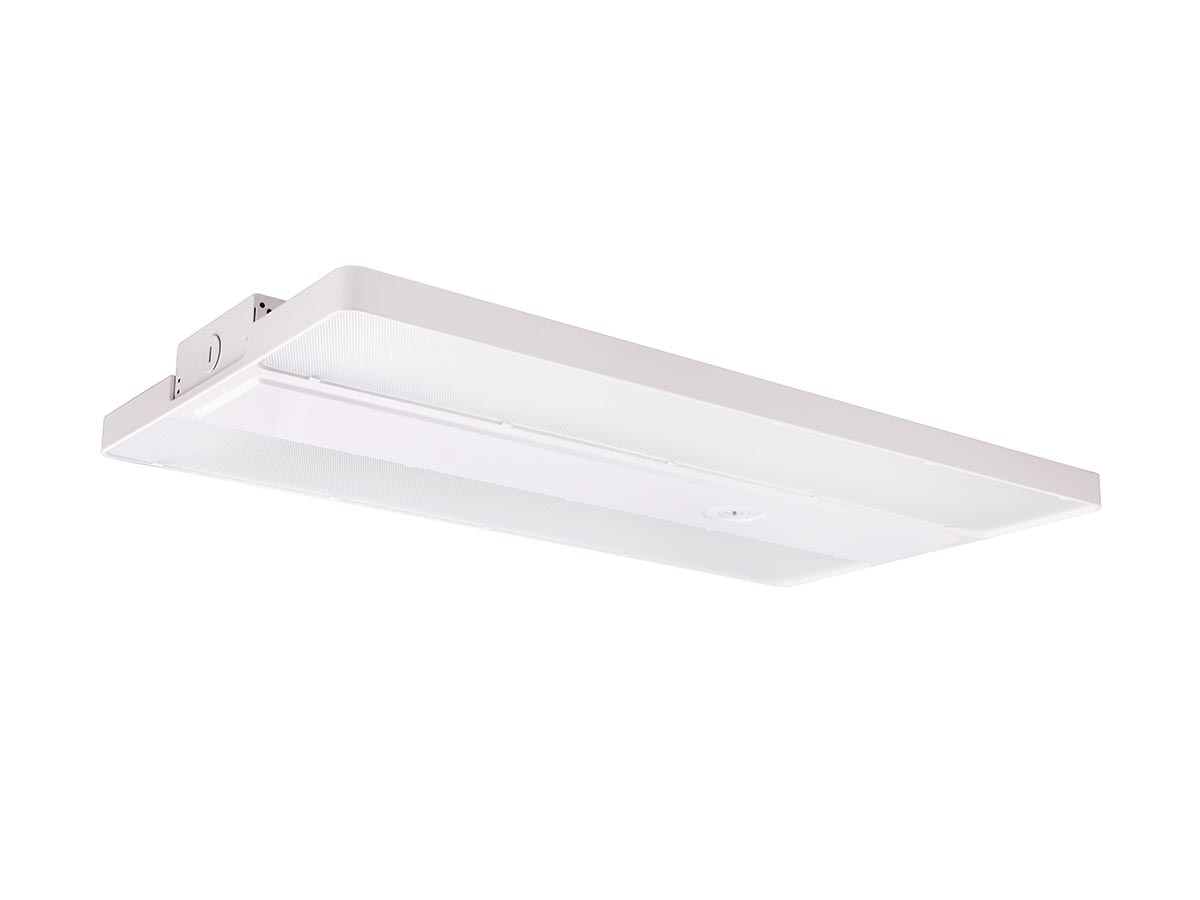

Linmore AH1 Series Ace LED High Bay Light Fixture Dimmable
Linmore AH1 Series Ace LED High Bay Light Fixture Dimmable
Specifications
Specifications
| Part Number# | AH10S-A2 |
|---|---|
| Type of Area: | Industrial & Warehouse, Large Retail & Open Areas, Manufacturing Plants |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | 36,000 - 71,000 |
| Wattage: | 500 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | 80+ |
| Width: | 11.0" - 12.6" |
| Length: | 14.2" - 46.0" |
| Height: | 1.9" - 2.0" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4 - 16 lbs |
| Manufacturer: | LinmoreLED |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Linmore's AH1 Series Ace LED High Bay has impressive features, offering an illuminating range of 12,000 to 71,000 lumens with up to 150 LPW efficiency. Its robust construction includes a unique aluminum die-cast housing, aluminum heatsink, and a frosted lens, ensuring durability in ambient temperatures of up to 50°C (122°F). The flicker-free lighting experience and 0-10V dimming capability enhance user control. The inclusion of advanced controls, such as Plug & Play occupancy sensors and UltraLink Bluetooth® Controls, further highlights its adaptability. With DesignLights™ Consortium Premium certification, the Linmore AH1 Series exemplifies high-quality, energy-efficient lighting solutions for various applications.
Features:
• 12,000 to 71,000 lumens
• Up to 150 LPW
• Up to 50°C (122°F) ambient
• Unique aluminum die-cast housing
• Aluminum heatsink
• Frosted lens
• Flicker-free
• Dimmable 0-10V (standard)
