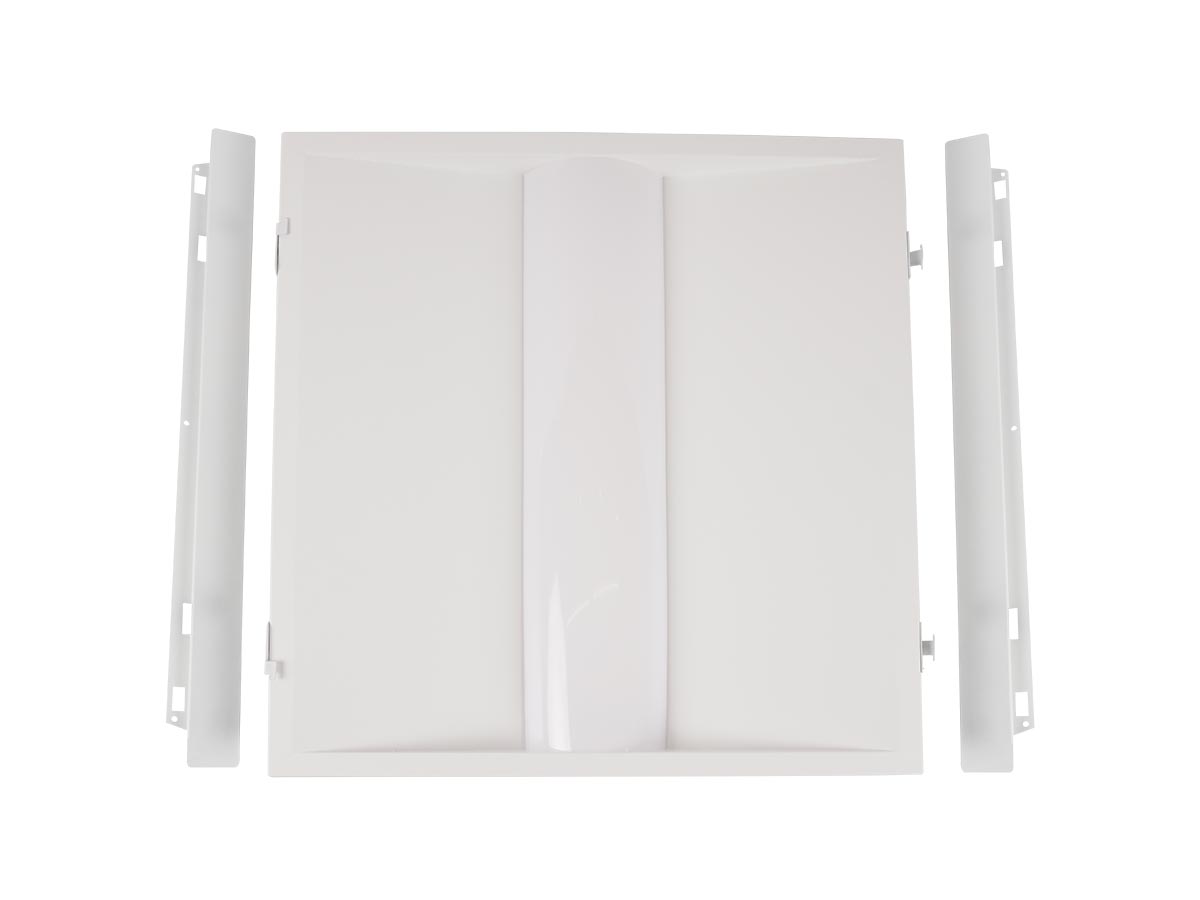

Linmore AD1 Series Ace Color and Wattage Selectable LED Recessed Troffer Door Kit Retrofit Dimmable
Linmore AD1 Series Ace Color and Wattage Selectable LED Recessed Troffer Door Kit Retrofit Dimmable
Specifications
Specifications
| Part Number# | AD10S-A2-ADJ |
|---|---|
| Type of Area: | Commercial Offices, Education, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | 3,750 - 6,250 |
| Wattage: | 50 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CSA, Dimmable, DLC Approved, ETL Listed, ROHS |
| CRI: | >80 |
| Dimensions: | See Product Options |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4 - 8 lbs |
| Manufacturer: | LinmoreLED |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits Input:
Linmore AD1 Series Ace LED Recessed Troffer Door Kit stands out as a cost-effective lighting solution for indoor spaces, offering a low-glare light output that ensures comfort in various applications. Its panel, featuring an aluminum back for both heat dissipation and structural rigidity, houses long-life LEDs for exceptional energy efficiency across commercial, retail, educational, and medical environments. The AD1 is highly versatile with its wattage and CCT adjustability, providing the right lighting tool for any environment. Available in 2x2 and 2x4 retrofit sizes, the fixture offers wattage options ranging from 30W to 50W and selectable CCTs of 3500K, 4000K, and 5000K, delivering lumen outputs between 3,750 and 6,250 lumens. The inclusion of a frosted lens and standard 0-10V dimmability further enhance its adaptability and user control.
Features:
• 3,750 to 6,250 lumens
• Up to 125 LPW
• Selectable CCT: (3500K, 4000K, 5000K)
• Selectable output power: 30W to 50W
• 2x2 and 2x4 retrofit sizes available
• Frosted lens
• Dimmable 0-10V (standard)
