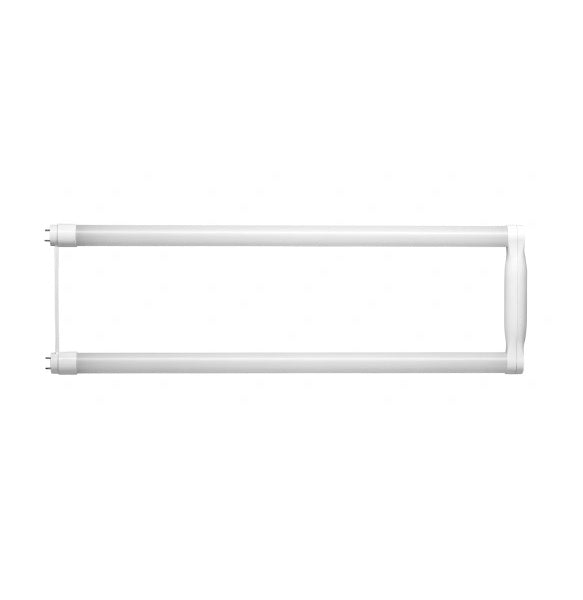

Light Efficient Design RPT-B-TOTALTUBE-T8-G3-2FTU6 TOTALTUBE Series 15-Watt LED Pin-Based U-Bend T8 G3 Tube Lamp - Replaces 32W Fluorescent
Light Efficient Design RPT-B-TOTALTUBE-T8-G3-2FTU6 TOTALTUBE Series 15-Watt LED Pin-Based U-Bend T8 G3 Tube Lamp - Replaces 32W Fluorescent
Specifications
Specifications
| Part Number# | RPT-B-TOTALTUBE-T8-G3-2FTU6 |
|---|---|
| Type of Area: | Apartment Buildings, Industrial & Warehouse, Office & Small Retail, Schools, Hotels, Hospitals, Commercial Offices, Education, Retail |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 1,950 |
| Wattage: | 15 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, DLC Approved, FCC Compliant, NSF, ROHS, UL Listed |
| CRI: | 80+ |
| Dimensions: | 22.5" x 6.0" |
| Length: | 22.5" |
| Height: | 6.0" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Light Efficient Design |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
TOTALTUBE Series is a 15-watt LED pin-based U-Bend T8 G3 tube lamp that replaces 32W fluorescent tubes. It offers two installation options, UL Type A and B, with a wide 240° beam angle for better light coverage. With an advanced SMARTSENSE-TLED intelligent safety system and high-performance NANO Lens, it provides 136 LPW efficacy and is suitable for both dry and damp locations. The lamp is available in various lengths, is UL classified, and comes with a 5-year warranty boasting a lifespan of over 100,000 hours.
Features:
• 2 methods of installation (UL Type A + B).
• New wide 240° beam angle.
• New G3 SMARTSENSE-TLED Intelligent Safety System.
• Available in 2 ft, 3ft & 4ft lengths & U-Bend sizes.
• Suitable for dry & damp locations.
• UL classified retrofit fit listed & DLC QPL listed.
• 5-year standard warranty, L70 > 100,000 HRS.
• New high-performance NANO Lens material.
• New 136 LPW efficacy due to improved driver design, higher efficiency LED chips & high-performance NANO Lens.
