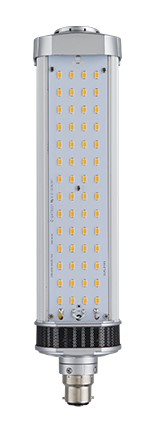

Light Efficient Design LED-8101 35-Watt Ballast Bypass LED Low Pressure Retrofit Lamp Replaces up to 55W
Light Efficient Design LED-8101 35-Watt Ballast Bypass LED Low Pressure Retrofit Lamp Replaces up to 55W
Specifications
Specifications
| Part Number# | LED-8101 |
|---|---|
| Type of Area: | Hangers & Storage, Industrial & Warehouse, Wall Mount & Building Exteriors |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3,232 - 5,156 |
| Wattage: | 35 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CE, CUL Listed, FCC Compliant, ROHS, UL Listed |
| CRI: | 80 |
| Dimensions: | 16.7" X 2.7" |
| Width: | 2.7" |
| Length: | 16.7" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 1.7 Lbs |
| Manufacturer: | Light Efficient Design |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits:
The Light Efficient Design SOX Series offers a range of models including 20W, 35W, 60W, and 100W, designed specifically to replace LPS SOX lamps ranging from 35W to 180W. These models feature advanced active cooling for optimal thermal management, ensuring high light output and extended lifespan. Their directional light output enhances "dark sky" performance, making them suitable for minimizing light pollution. Designed and specified in the USA, they incorporate an internal LED driver for reliable performance. An innovative aluminum heat sink with various size options ensures compatibility with different fixtures, with a support harness included for installation convenience. Additionally, the option for 590 nm single-color, narrow-band LEDs helps eliminate blue light emissions, catering to specific lighting needs.
Features:
• 20W, 35W, 60W & 100W models designed to replace 35W to 180W LPS SOX lamps.
• Advanced active cooling provides excellent thermal management resulting in high light output & long life.
• Directional light output delivers superior “dark sky” performance.
• USA designed and specified internal LED driver.
• Innovative aluminum heat sink with size options to fill entire fixture.
• Support harness included.
• 590 nm, single color, narrow band LEDs are available to eliminate blue light emmisions.
