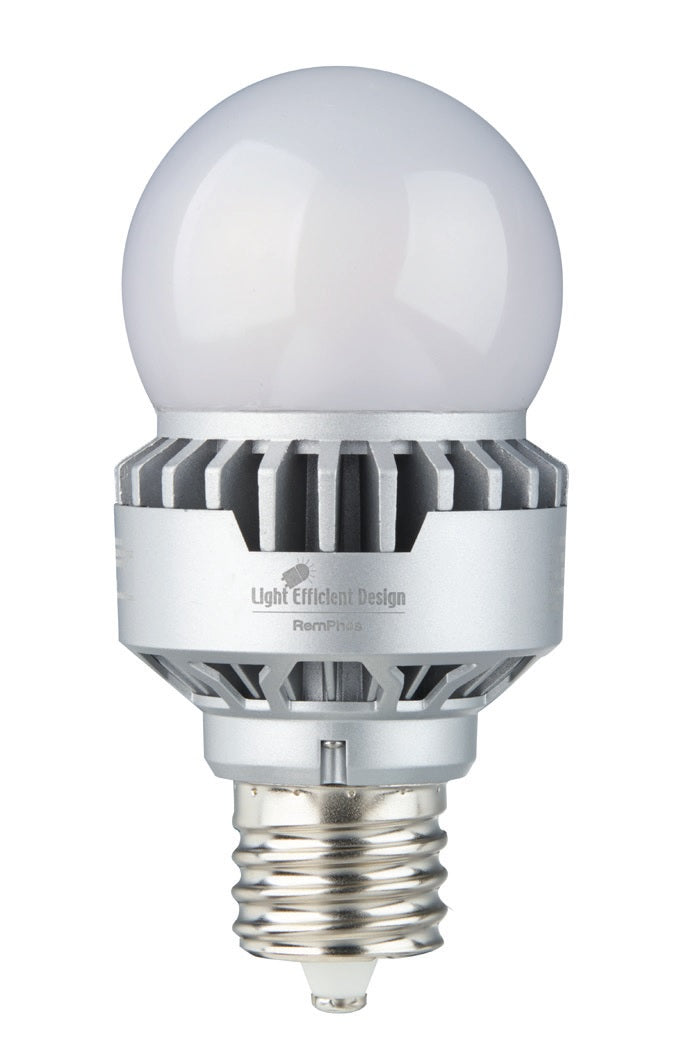

Light Efficient Design LED-8017E 20-Watt LED High Output Omni Directional Design Bollard Retrofit Lamp Dimmable Replaces 100W HID
Light Efficient Design LED-8017E 20-Watt LED High Output Omni Directional Design Bollard Retrofit Lamp Dimmable Replaces 100W HID
Specifications
Specifications
| Part Number# | LED-8017E |
|---|---|
| Type of Area: | Large Retail & Open Areas, Parking Garage, Pole / Street / Parking Lot, Wall Mount & Building Exteriors |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,500 - 2,740 |
| Ballast Factor: | 1.00 |
| Wattage: | 20 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 150W HID Equivalent, CE, CUL Listed, UL Listed |
| CRI: | 80+ |
| Dimensions: | 5.3" x 3.2" |
| Width: | 2.6" |
| Length: | 5.3" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 0.76 lbs |
| Manufacturer: | Light Efficient Design |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Light Efficient Design’s A21/23 LED retrofits have been designed specifically for use in bollard fixtures and other small applications. Our omni-directional design delivers unsurpassed lumen output, broad even light distribution, easy installation and up to 80% in energy and labor savings over existing HID technology. 360° light output for optimal performance. 14W, 20W, 25W and 35W replacing up to 175W HID and 300W incandescent.
Features:
• Frosted design to reduce glare
• 360° light output for optimal performance
• 14W, 20W, 25W and 35W replacing up to 175W HID & 300W incandescent
• Pretested & potted drivers are burnt in 3x prior to shipping and protected against vibration & moisture
• Expertly engineered to work effi ciently in enclosed fi xtures & damp environments, while also protected against insects & dust
• 120-277V (Non-Dimmable)
