LEDVANCE RDORKIT6A Dual Selectable Retrofit Door Kit 6A Series Dimmable
LEDVANCE RDORKIT6A Dual Selectable Retrofit Door Kit 6A Series Dimmable
Specifications
Specifications
| Part Number# | RDORKIT6A |
|---|---|
| Type of Area: | Office & Small Retail, Commercial Offices, Hospitality, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | 2,500 - 5,500 |
| Wattage: | 44 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, FCC Compliant, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | See Product Options |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | 120V-347V |
| Manufacturer: | Sylvania |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits Input:

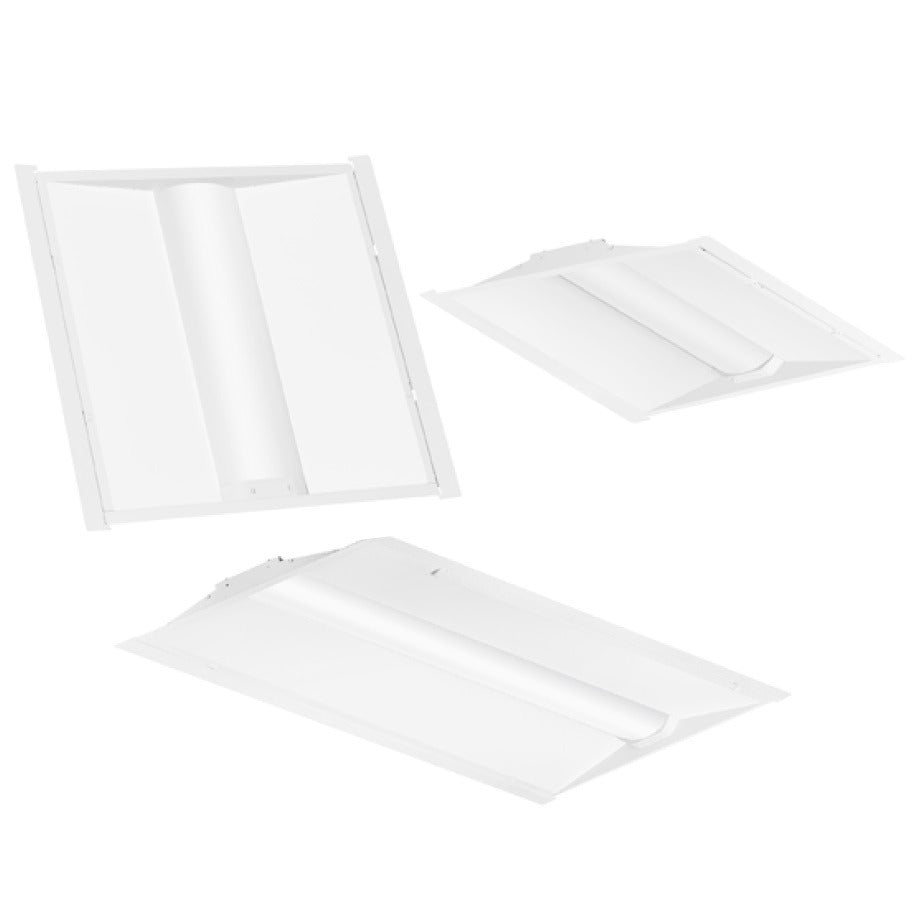

LEDVANCE RDORKIT6A Dual Selectable Retrofit Door Kit 6A Series is an ideal solution for upgrading existing troffers to modern, energy-efficient LED lighting. Available in 1'x4', 2'x2', and 2'x4' sizes, this kit offers wattage and CCT selectability, allowing maximum versatility across various applications like offices, retail spaces, and healthcare environments. It features up to 125 LPW performance, 0-10V dimming, and built-in sensor bases for easy field installation of PIR motion sensors. With DLC 5.1 certification and 150,000 hours of lifespan, this retrofit kit can provide up to 51% energy savings, backed by a 5-year warranty.
Features:
• Lumen and CCT selectability offer the ultimate in versatility for a large variety of applications and installations
– 1x4: 20/24/28/32 wattage selectable
– 2x2: 20/24/28/32 wattage selectable
– 2x4: 24/32/39/44 wattage selectable
– 2x4: 49/59/69 wattage selectable
• All versions are 3500/4000/5000K CCT Selectable
• Sensor base built into each fixture enables the simple field installation of optional PIR motion sensors
• Up to 125 LPW
• DLC 5.1
• Ideal in retrofit applications, offering up to 51% energy savings
• Driver includes 12V auxiliary output
• Compatible with field installable LINK™ components
• 0-10V Dimming
• 2.5kV Surge Protection
• 150,000 hours (L70)
• 5-year
• NLB Trusted Warranty Program
