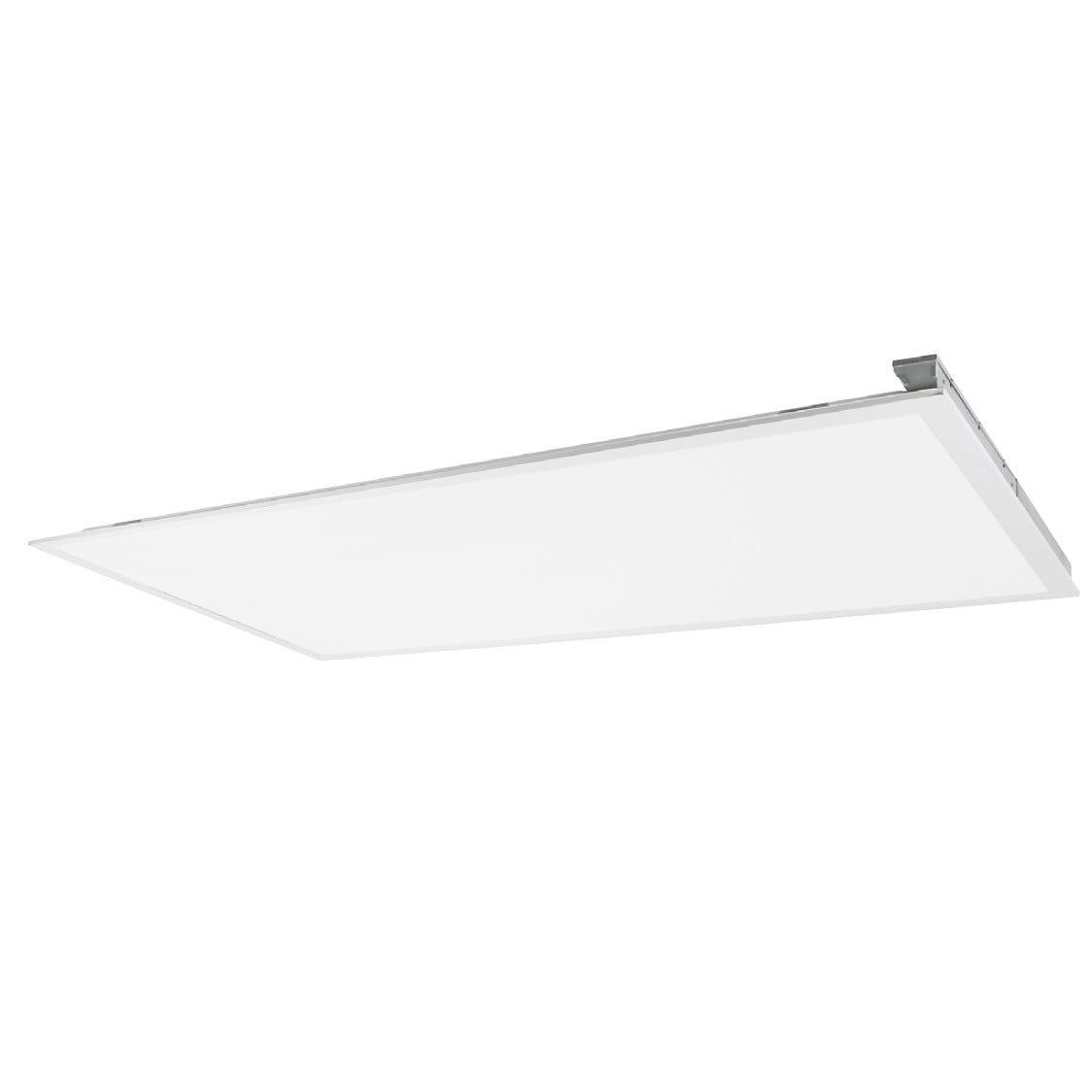

LEDVANCE PANELF3BS045UNVD8SC724GWH Dual Selectable 2x4 LED Backlit Panel Fixture Dimmable
LEDVANCE PANELF3BS045UNVD8SC724GWH Dual Selectable 2x4 LED Backlit Panel Fixture Dimmable
Specifications
Specifications
| Part Number# | PANELF3BS045UNVD8SC724GWH |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Commercial Offices, Hospitality, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3,300 - 5,000 |
| Wattage: | 45 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, ETL Listed, FCC Compliant, ROHS |
| CRI: | >80 |
| Dimensions: | 23.9" x 47.8" x 1.7" |
| Width: | 47.8" |
| Length: | 23.9" |
| Height: | 1.7" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Sylvania |
| Technology: | LED - New Fixture |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
LEDVANCE Dual Selectable 2x4 LED Backlit Panel Fixture offers excellent lighting flexibility with selectable wattage (30/35/45W) and color temperature (3500K/4000K/5000K), delivering up to 5000 lumens. Its backlit technology ensures even light distribution without shadowing, while the PMMA lenses resist yellowing for long-term clarity. With a high CRI of over 80 and up to 64% energy savings, this fixture is efficient and visually appealing. Ideal for offices, schools, hospitality, and retail applications, it is DLC listed for rebates and compatible with emergency battery backup options.
Features:
• Backlit technology that offers even lighting distribution without shadowing
• Color Selectable: 3500K, 4000K, and 5000K in the same product
• Wattage/Lumen selectable: three different lumen outputs in the same product
• PMMA lenses that do not yellow over time
• CRI >80
• Energy savings up to 64%
• DLC Listed to maximize rebate opportunities
• EM ready – compatible with the SYLVANIA field installable emergency battery backup unit
