LEDVance LEDMAGBAR Color Selectable LED Magnetic Bar Strip Retrofit Dimmable
LEDVance LEDMAGBAR Color Selectable LED Magnetic Bar Strip Retrofit Dimmable
Specifications
Specifications
| Part Number# | LEDMAGBAR |
|---|---|
| Type of Area: | Commercial Offices, Education, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,800 - 3,200 |
| Wattage: | 20 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, DLC Premium, ETL Listed, FCC Compliant, ROHS |
| CRI: | >80 |
| Dimensions: | See Product Options |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120V-347V |
| Manufacturer: | Sylvania |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits Input:

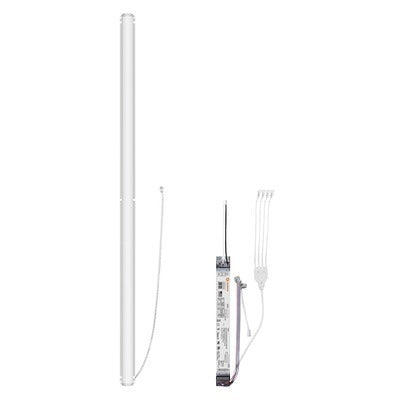

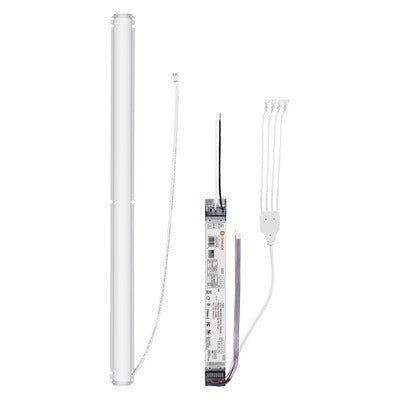

LEDVance's LEDMAGBAR Magnetic Bar Retrofit offers a fast, magnetic installation solution for upgrading fluorescent fixtures. Available in 2ft, 3ft, and 4ft sizes, it provides up to 160 LPW efficiency with selectable 3500K, 4000K, or 5000K color temperatures and CRI >80. Its dimmable 0-10V driver supports multiple lamp connections, 12V Aux for sensors, and delivers instant-on, flicker-free illumination. With a 65,000-hour rated life, DLC 5.1 certification, and a 5-year warranty, it ensures reliable, energy-efficient performance for commercial and industrial applications.
Features:
• Drivers have 12V Aux to work with sensors

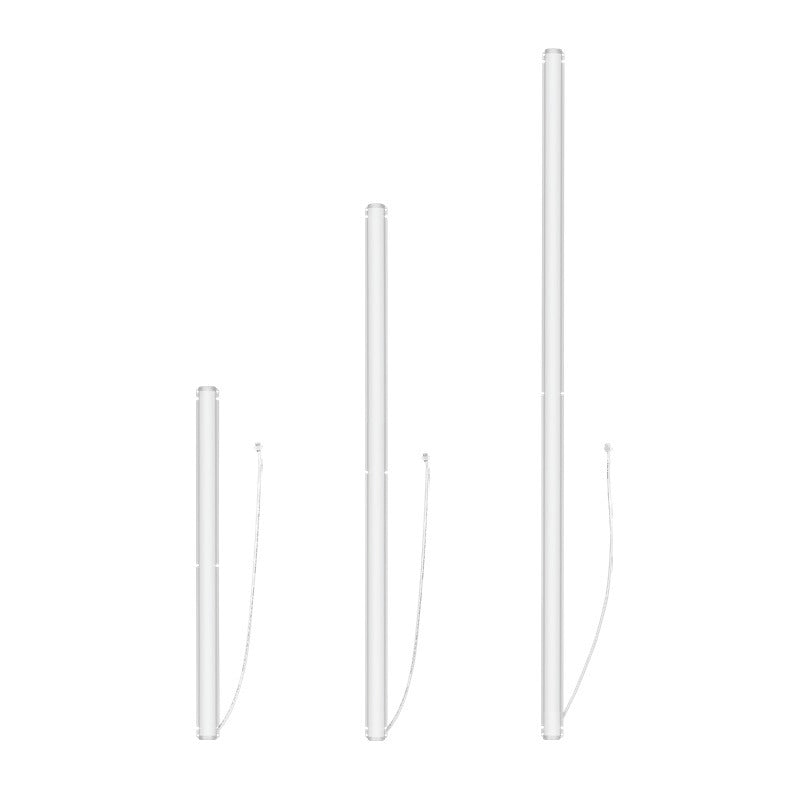

• Available in 2ft, 3ft, and 4ft linear options
• Includes 1-4 connections on each driver for multiple lamp applications
• Dimmable down to 20% with a 0-10V driver to maximize energy savings and optimize light levels
• Aluminum substrate for excellent heat dissipation
• See System Data section for DLC-approved systems
• No warm-up time, instant-on with full light output and stable lamp-to-lamp color
• No UV emission
• System Efficacy up to 160 LPW (without lens)
• 3500K, 4000K, 5000K color temperatures
• CRI >80
• Beam angle: 120° with frosted plastic optics
Electrical:
• Three selectable wattage drivers available in 120-347V
• Power Factor >0.9
• THD <20%
• Dimmable (20-100%)
• Compatible with LEDVANCE EMBB (61097)
Rated Life:
• 65,000 hours (L70)
Operating Temperature:
• -40°F to +104°F (-40°C to +40°C)
Warranty:
• Retrofit Kit (driver and magnetic bars) is covered by a 5-year limited warranty. For additional details, please visit www.ledvanceUS.com/warranty
• NLB Trusted Warranty Program
Certifications and Listings:
• cETLus (damp location)
• RoHS
• FCC
• DLC 5.1 Standard/Premium
Installation:
• Please refer to the Installation manual included inside the packaging and the applications information listed below for more information.
