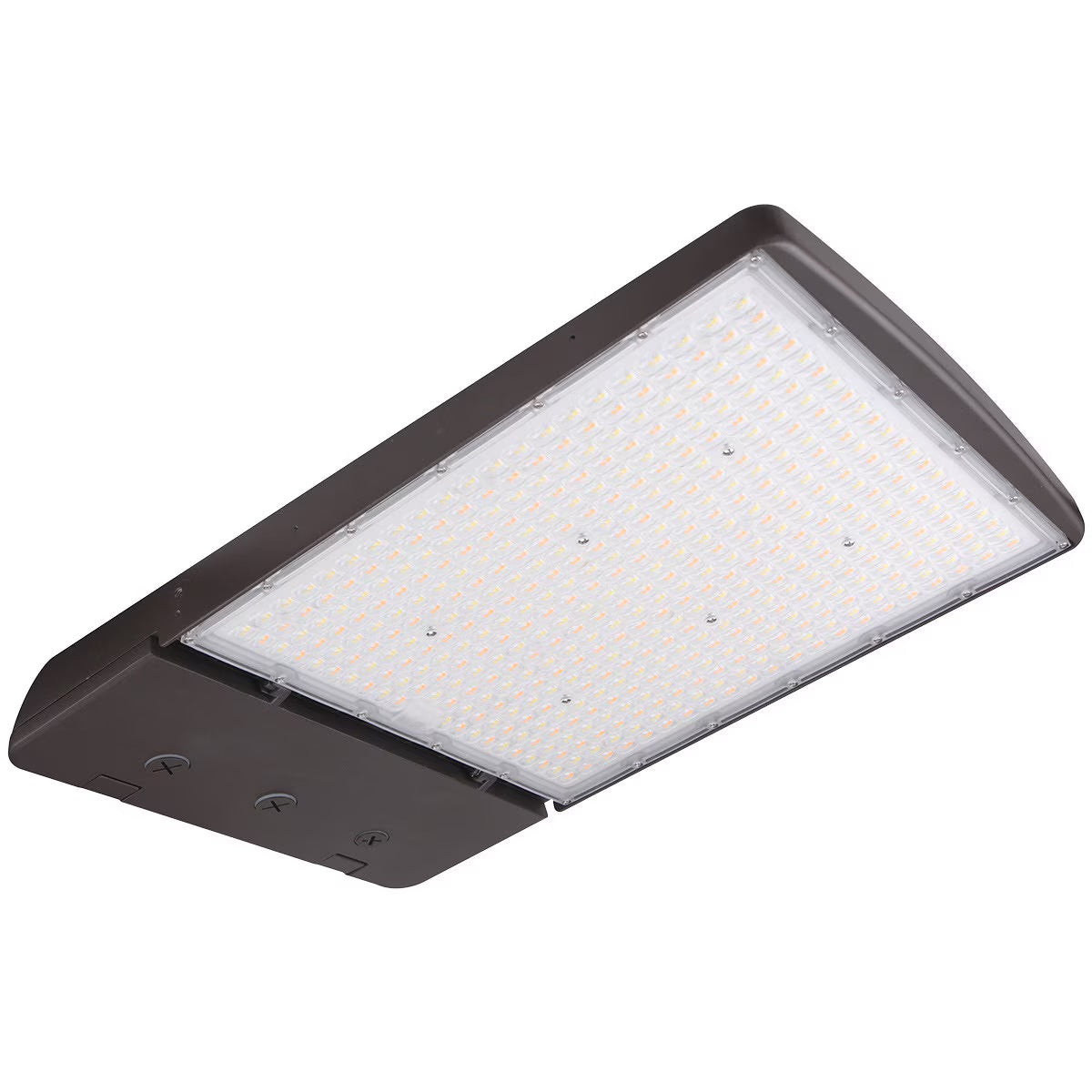

LEDone LOC-ALAL-MW(180/200/240/320)MCCT(30/40/50)-LV Multi Watt Multi CCT LED Area Light Fixture Dimmable
LEDone LOC-ALAL-MW(180/200/240/320)MCCT(30/40/50)-LV Multi Watt Multi CCT LED Area Light Fixture Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | LOC-ALAL-MW(180/200/240/320)MCCT(30/40/50)-LV |
|---|---|
| Type of Area: | Industrial & Warehouse, Pole / Street / Parking Lot, Large Retail & Open Areas |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 26,208 - 46,592 |
| Wattage: | 320 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 1000W HID Equivalent, 5 Year Warranty, Dimmable, DLC Premium, UL Listed |
| CRI: | 73 |
| Dimensions: | 22.36" x 14.02" x 2.64" |
| Width: | 14.02" |
| Length: | 22.36" |
| Height: | 2.64" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40°F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | LEDone |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The LEDone LOC-ALAL LED area light features selectable wattage and color temperature for flexible outdoor lighting. Default settings are 320W, 5000K, and Type III lens, with options to adjust as needed. Built with a bronze die-cast aluminum housing, it is IP66 rated, corrosion-resistant, and designed with full cut-off. This fixture supports 0-10V dimming, multiple mounting options, and operates on 120-277V or 347-480V input.
Features:
• Default Wattage: 320W
• Default CCT: 5,000K
• Default Lens: Type III
• Replaces 600W - 1,000W HID
• IP66 rated
• Full cut off
• Easy installation and maintenance
• Corrosion and rust proof
• 50,000 hours lifetime
• Title 24 compliant when used with a motion sensor
Applications:
• Warehouses
• Stadiums
• Factories
• Parking Lots
• Supermarkets
• Logistic Centers
• Exhibition Halls
