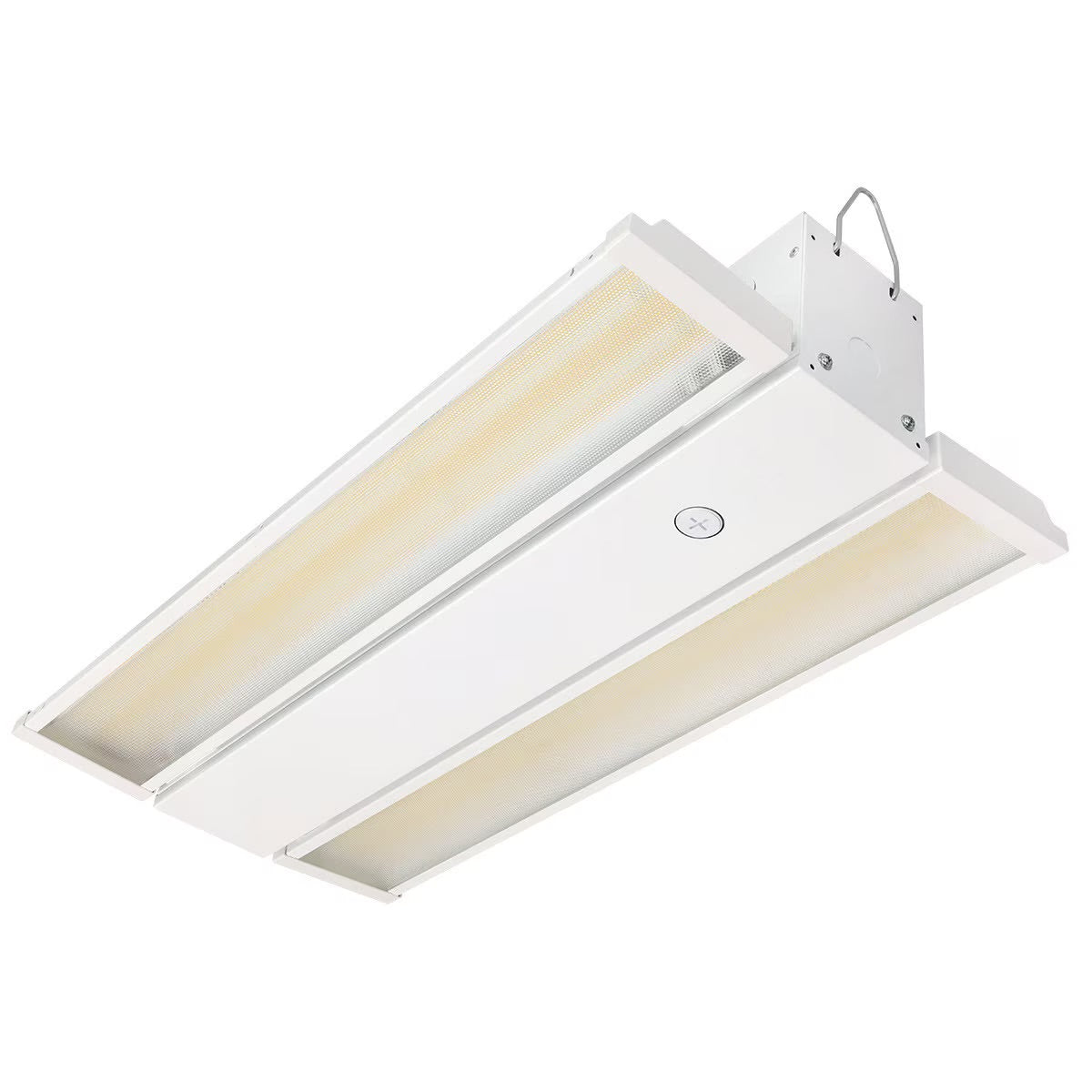

LEDone LOC-2FTFLHB-MW(145/160/175)50KD Multi Watt 2FT Foldable LED Linear High Bay 5000K Dimmable
LEDone LOC-2FTFLHB-MW(145/160/175)50KD Multi Watt 2FT Foldable LED Linear High Bay 5000K Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | LOC-2FTFLHB-MW(145/160/175)50KD |
|---|---|
| Type of Area: | Industrial & Warehouse, Large Retail & Open Areas, Factory / Industrial |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 22,040 - 26,600 |
| Wattage: | 175W |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, UL Listed |
| CRI: | 70 |
| Dimensions: | 24.02" x 11.97" x 4.53" |
| Width: | 11.97" |
| Length: | 24.02" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 6.77 lbs |
| Manufacturer: | LEDone |
| Technology: | LED - New Fixture |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
The LEDone LOC-2FTFLHB is a 2FT foldable linear LED high bay with selectable wattage options of 145W, 160W, and 175W. It delivers 5000K light output and features foldable sides for adjustable coverage. Built with galvanized steel housing and a frosted PMMA lens, it is designed for durability and easy installation. This fixture supports 0-10V dimming, includes a DC 12V auxiliary, and operates on 120-277V input.
Features:
• Multi Wattage: 145W / 160W / 175W
• Default Wattage: 175W
• CCT: 5,000K
• Foldable sides
• 0-10V dimming
• IP40 rated
• DC 12V auxiliary
• Easy installation and maintenance
• 50,000 hours lifetime
Applications:
• Warehouses
• Factories
• Supermarkets
• Logistic Centers
• Exhibition Halls
