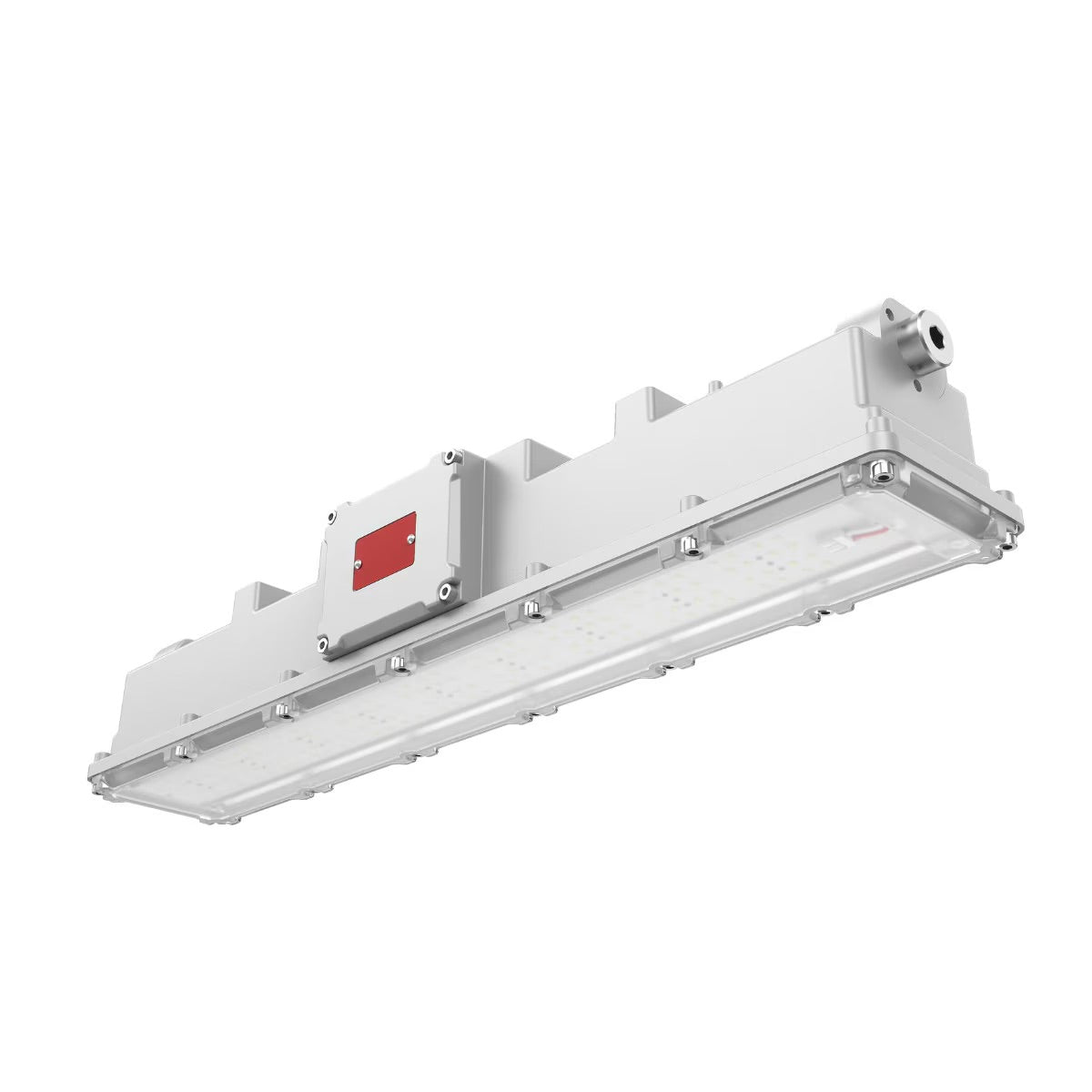

LEDone HA06 LED Explosion-proof Linear Light Fixture 5000K Dimmable
LEDone HA06 LED Explosion-proof Linear Light Fixture 5000K Dimmable
Specifications
Specifications
| Part Number# | HA06 |
|---|---|
| Type of Area: | Hazardous Location, Industrial & Warehouse, Factory / Industrial, Hazardous & Demanding, Gas Station & Convenience Store |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 4,800 - 16,000 |
| Wattage: | 30W - 100W |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, IP65 / IP66 / IP67, CSA |
| CRI: | 70 |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 21 lbs |
| Manufacturer: | LEDone |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The LEDone Explosion-proof LED Linear Light is designed for hazardous environments with Class I, Division 2, Groups A, B, C, D rating. Available in 2ft (30W/50W) and 4ft (80W/100W) configurations, it features a fiberglass-reinforced polycarbonate body with a diffused polycarbonate lens. Equipped with LED 3030 chips, it operates on 120–277V input with 1-10V dimming. IP66 and IK08 rated for protection with long LED life up to 282,900 hours (L70).
Features:
• Class I, Division 2, Groups A, B, C, D
• 2ft:30W/50W, 4ft: 80W/100W
• IP66 & IK08 double protection
• EPA: 2ft:0.07m² (0.7ft²)
4ft: 0.14m² (1.4ft²)
• Well-sealed with special structure and materials
• Easy installation and maintenance
• Lifetime of LED @Ta=25°C(77°F):
o 77,000hrs-L90
o 175,200hrs-L80
o 282,900hrs-L70
Applications:
• Warehouses
• Factory
• Workshops
• Petroleum and petrochemical areas
• Gas Station
• Railways
• Ship port
• Public Security
• Fire Protection
