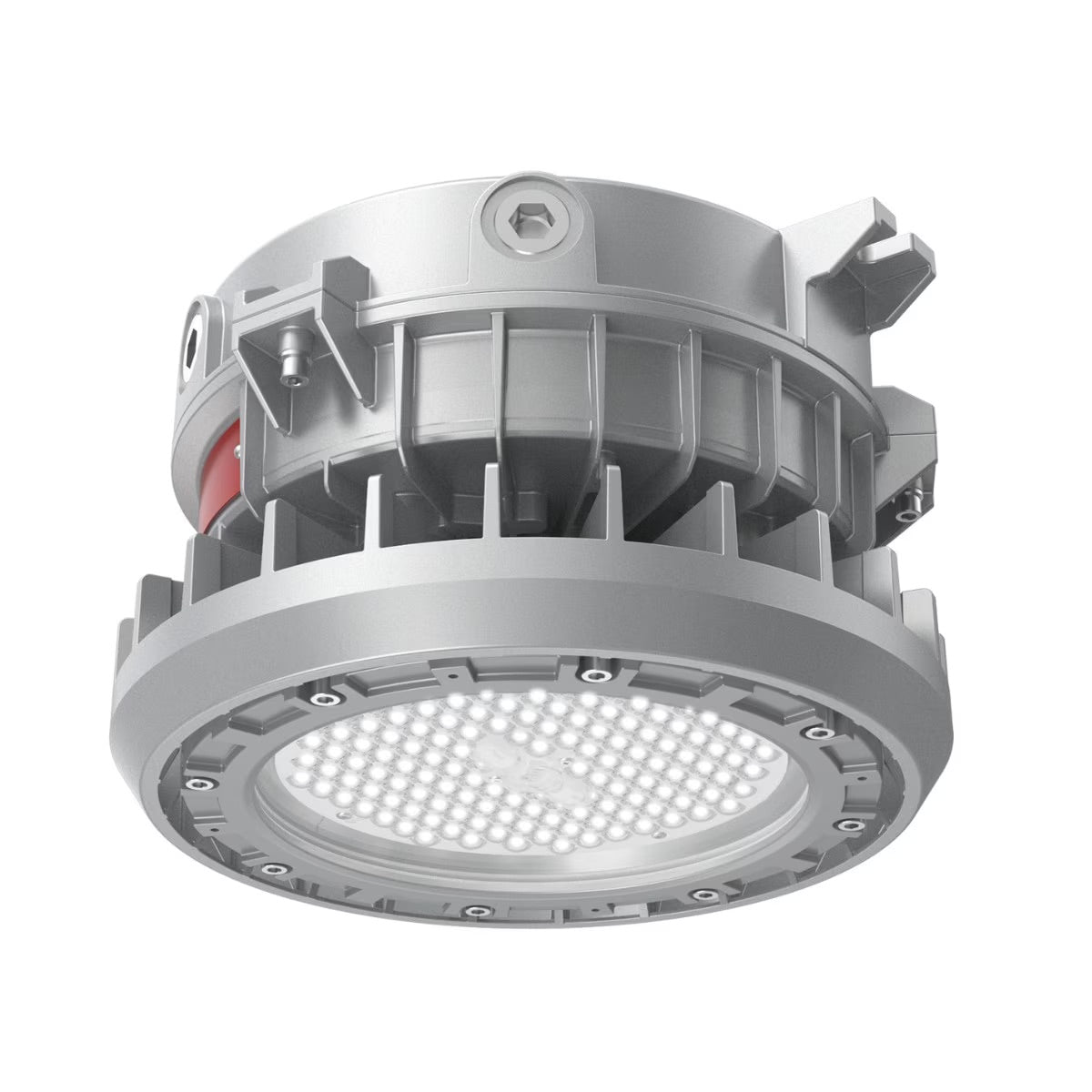

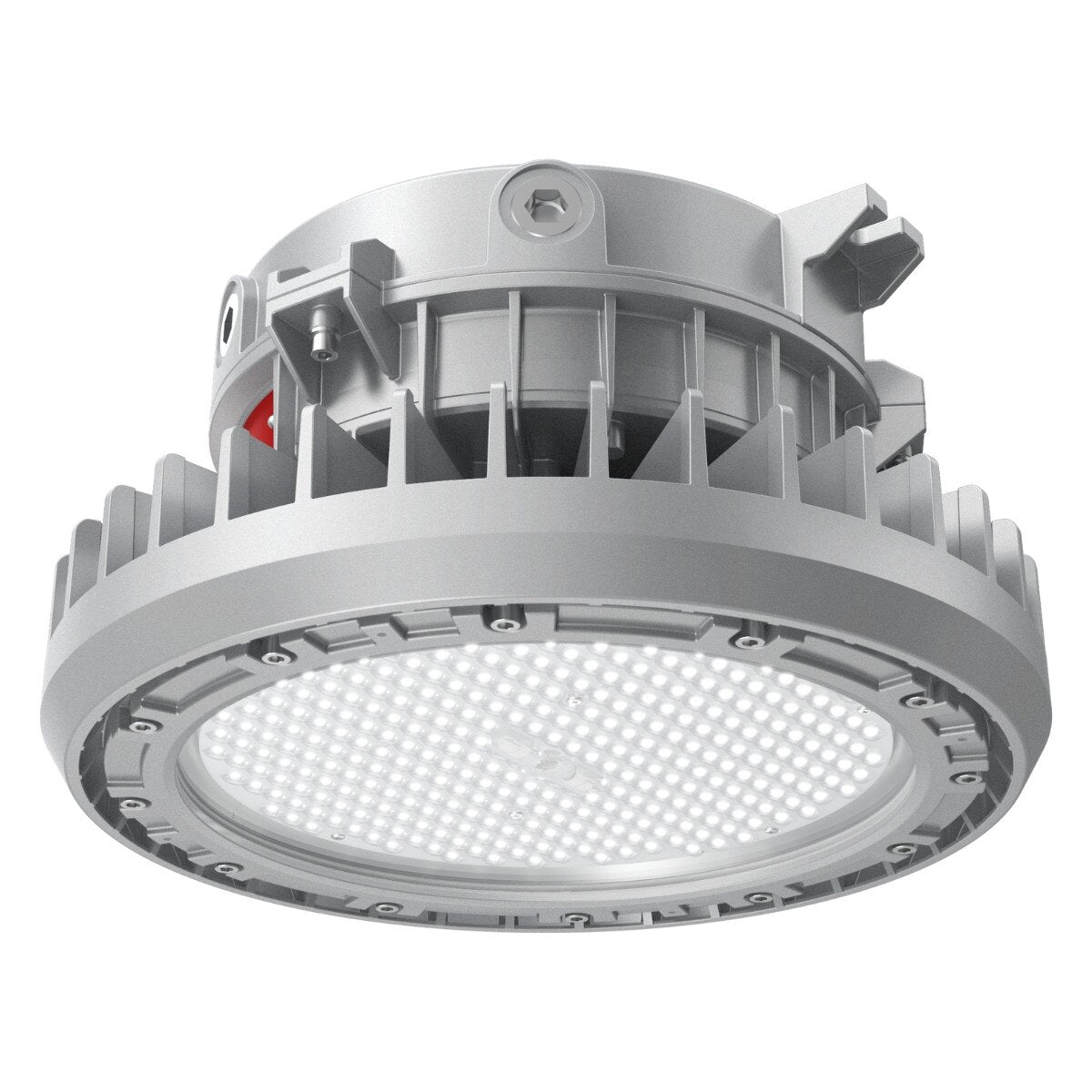

LEDone HA05 LED Explosion-proof Highbay Light Fixture 5000K Dimmable
LEDone HA05 LED Explosion-proof Highbay Light Fixture 5000K Dimmable
Specifications
Specifications
| Part Number# | HA05 |
|---|---|
| Type of Area: | Hazardous Location, Industrial & Warehouse, Manufacturing Plants, Factory / Industrial, Hazardous & Demanding |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 13,500 - 32,400 |
| Wattage: | 100W - 240W |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, IP65 / IP66 / IP67, CSA |
| CRI: | 70 |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 21 lbs |
| Manufacturer: | LEDone |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The LEDone HA05 is an explosion-proof LED high bay light designed for hazardous environments. Rated Class I, Division 2, Groups A, B, C, D with T5 classification, it features a low-copper aluminum alloy housing and polycarbonate optical lens. Equipped with LED 3030 chips and a 120° beam angle, it supports 100–277V input and 1-10V dimming. IP66 and IK08 rated for protection, with long LED life up to 153,225 hours (L70).
Features:
• Class I, Division 2, Groups A, B, C, D
• T-Code: T5
• IP66 & IK08 double protection
• No UV or IR in the beam
• Flexible installation
• Easy installation and maintenance
• No ingress of dust; complete protection against contact
• Lifetime of LED @Ta=25°C(77°F):
o 96,395hrs-L80
o 153,225hrs-L70
Applications:
• Warehouses
• Factory
• Workshops
• Petroleum and petrochemical areas
• Gas Station
• Railways
• Ship port
• Public Security
• Fire Protection
