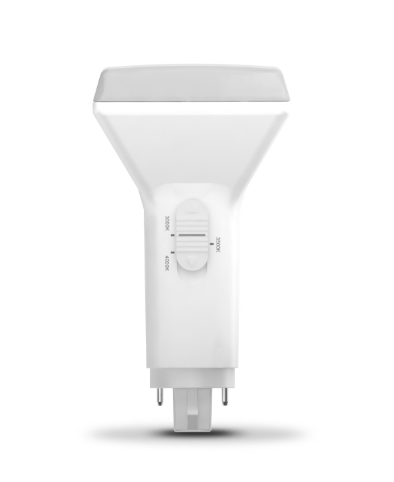

Type A LED PL Lamps

LED PL Type A G24q (4-pin) plug and play replacement lamps directly replace traditional G24q & GX24q (4-pin) 13W, 18W, 26W and 42W CFL lamps without having to change a ballast.

Key Features

• Lamp-for-Lamp Replacement – Hassle-free install with a lamp-for-lamp replacement.
• Fewer SKUs to Manage – One lamp can work on multiple sockets, allowing you to reduce your inventory while providing more flexibility to your customers (see Socket Compatibility section).
• Three Color Temperatures in One – FieldCCeT models (one SKU providing 3000K, 3500K, 4000K CCT) allows you to reduce your inventory while providing more flexibility to your customers (available on 9.5W G24q base models).
• Rotatable Base – Horizontal installation models feature a rotatable base of up to 270° to provide precision aiming.
• Instantaneous full light output upon power-up
• Omni directional lamps provide 360° of light distribution
• Polycarbonate lens reduces the risk of injury or breakage

Certifications

• UL Certified for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• Damp Location Rated
• DesignLights Consortium® Qualified – meets DLC requirements for efficacy and lumen maintenance (select 9.5W, 14.5, 17W models only)

Performance

• High efficacy: up to 134 lm/W
• Available in fixed wattage models: 6W, 7W, 9.5W, 14.5W or 17W
• Available in single CCT models: 2700K, 3000K, 3500K or 4000K CCT or FieldCCeT models: field-selectable CCT 30/35/4000K
• CRI >80
• Estimated Lifetime: L70 > 50,000 hours

Electrical

• Input voltage: Type A – Voltage dependent on ballast
• Power Factor: >0.9
• THD: <20%

Thermal

• -4°F to 113°F (-20°C to 45°C) operating temperature*

Construction

• Aluminum heatsink
• Polybutylene Terephthalate base
• Shatter-resistant lamp housing

Ballast Compatibility

• For a list of compatible ballasts, please download the compatibility guide.

Warranty

• 5-Year limited warranty. Contact your EiKO sales rep for additional details.

*Not recommended for air-tight fixtures
