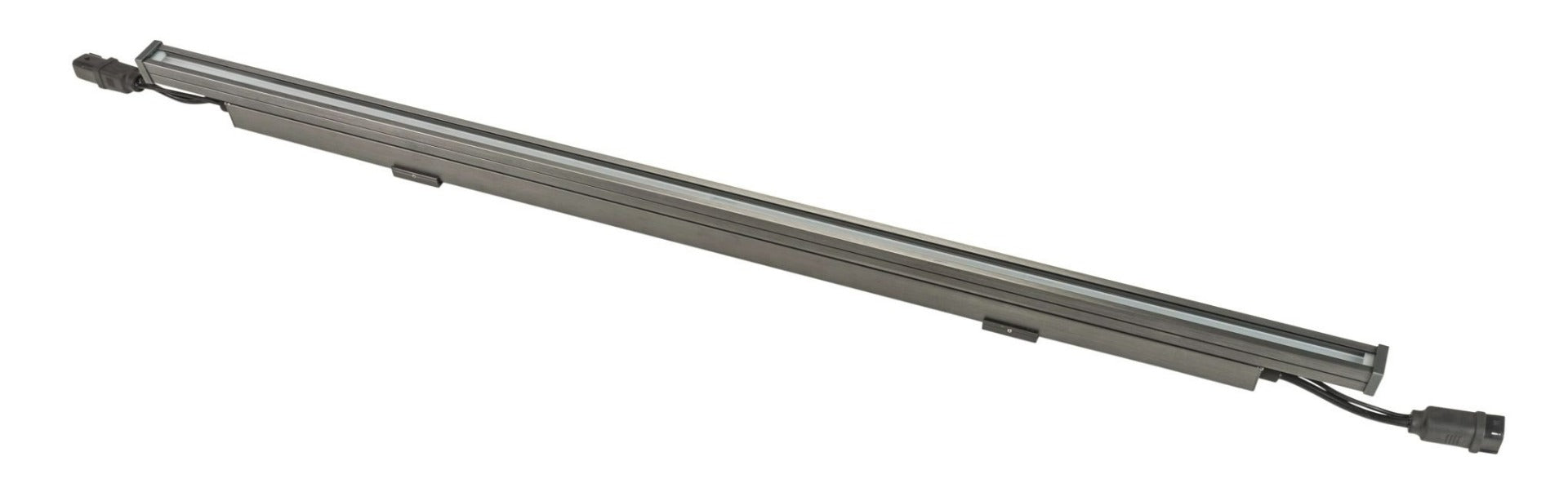

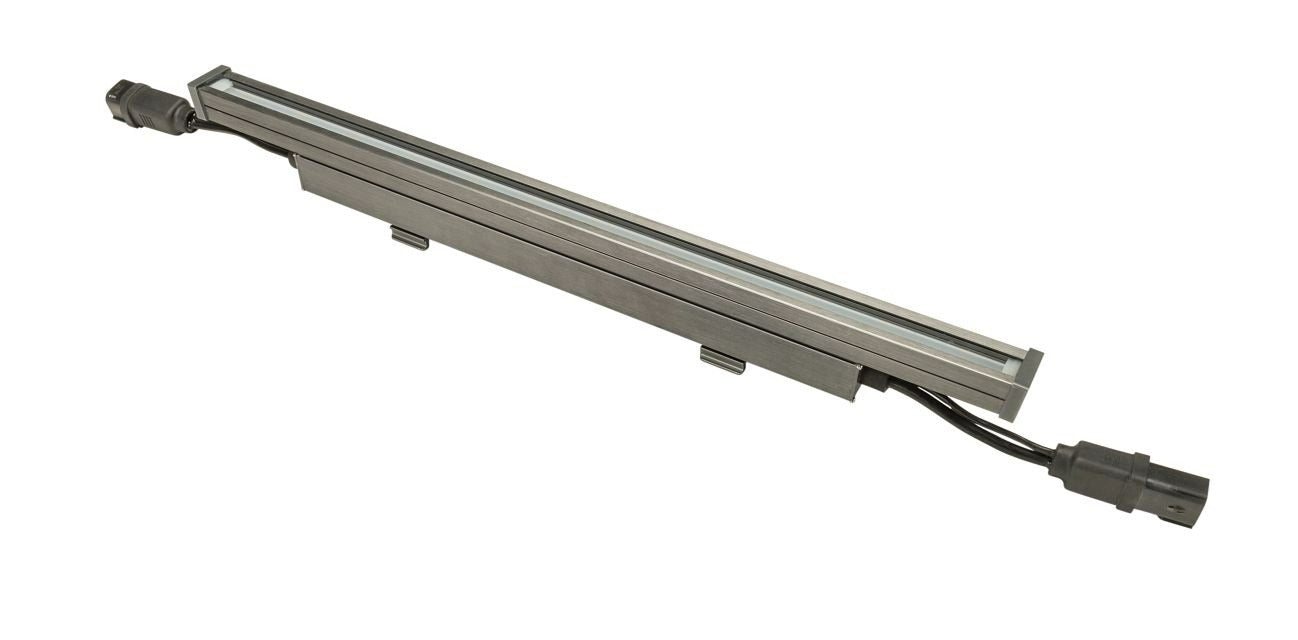

Keystone Technologies KT-WWLED DMX Outdoor LED RGBW Ultra Slim Linear Wall Washer
Keystone Technologies KT-WWLED DMX Outdoor LED RGBW Ultra Slim Linear Wall Washer
Specifications
Specifications
| Part Number# | KT-WWLED |
|---|---|
| Type of Area: | Home & Architectural, Landscape & Flood, Sign & Billboards |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 560 - 1,110 |
| Wattage: | 24 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, IP65 / IP66 / IP67, UL Listed |
| CRI: | >80 |
| Length: | 24.02" - 47.24" |
| Height: | 2.74” |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Keystone's LED Linear Wall Washer offers a sleek, ultra-slim design in extruded aluminum, perfect for wall and ground mount applications. Ideal for sign lighting, wall washing, and accent lighting, it features RGBW color control and is compatible with Keystone's Smart Loop Wireless DMX Controller. The fixture supports daisy chaining up to 35 units, is IP66 and Wet Location Rated, and operates in extreme temperatures from -40°F to 122°F. Osram LEDs and an easy-to-install hinged bracket deliver efficient and versatile lighting for architectural and landscape designs.
Features:
• Ultra Slim Linear Wall Wash product made from extruded aluminum for wall and ground mount applications easily blends into existing landscape or building architectural design
• Ideal for Sign Lighting, Wall Washing or grazing, or simple accent lighting to landscape or design elements
• Full RGBW design
• Compatible with Keystone Smart loop Wireless DMX Controller, offering RGBW color control, sequencing, and scheduling that is easy to commission and edit in seconds.
• Fully DMX 512 and RDM Compliant design allows for Compatibility with all industry-proven full-scale DMX512-based control solutions
• Uses 4 DMX channels per fixture
• Suitable for easy daisy chaining of fixtures end to end, either with or without optional linking cable accessories. Up to 35 fixtures linked end to end (circuit loading dependent)
• Multiple mounting accessories available
• Impact and heat-resistant tempered glass
• IP66 rated
• Wet Location Rated
• Ideal for single or two-story accent illumination needs
• Ambient operating temperature: -40°C/-40°F - 50°C/122°F
• UL Listed
• Osram LEDs
• Includes DMX512 Signal Termination Cap.
• 120-277V Input, no external power supply needed
• Hinged mounting bracket included
