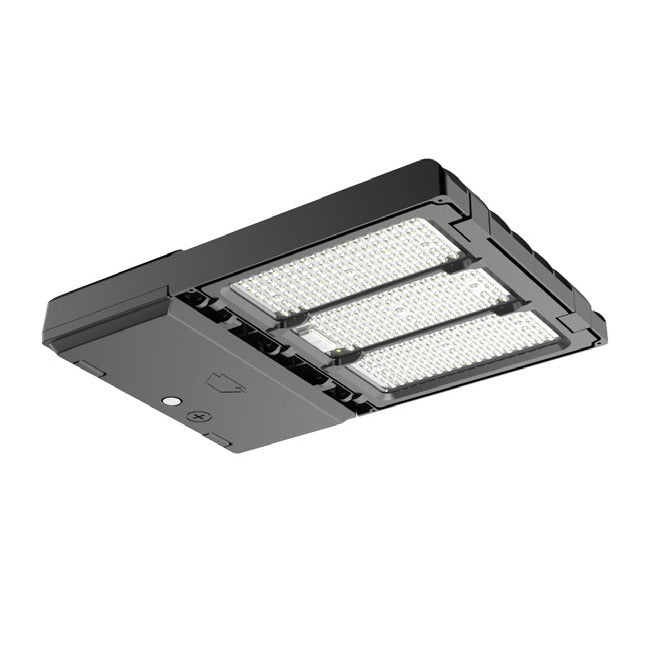

Keystone Technologies KT-ALED140PS-M2-OSA-NM-8CSB-VDIM-B/G2 Power and Color Select LED Area Light Fixture with Optic Swap
Keystone Technologies KT-ALED140PS-M2-OSA-NM-8CSB-VDIM-B/G2 Power and Color Select LED Area Light Fixture with Optic Swap
Specifications
Specifications
| Part Number# | KT-ALED140PS-M2-OSA-NM-8CSB-VDIM-B/G2 |
|---|---|
| Type of Area: | Pole / Street / Parking Lot, Road & Street |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 9,310 - 20,780 |
| Wattage: | 140 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, 400W HID Equivalent, ANSI, Dimmable, DLC Premium, FCC Compliant, IP65 / IP66 / IP67, NEMA, ROHS, UL Listed |
| CRI: | > 80 |
| Dimensions: | 15.70" x 11.18" x 3.30" |
| Width: | 11.18" |
| Length: | 15.70" |
| Height: | 3.30" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Keystone KT-ALED140PS-M2-OSA-NM-8CSB-VDIM-B/G2 LED Area Light is designed for flexible outdoor lighting. It uses Power Select and Color Select technology to adjust wattage and color temperature (3000K, 4000K, 5000K). The Optic Swap design makes it easy to change lenses without tools, with Type III and Type V lenses included. Built tough with die-cast aluminum, IP65 rating, surge protection, and a 100,000-hour LED life, this fixture is reliable and energy efficient.
Features:
• Keystone Power Select technology
• Keystone Color Select technology (3000/4000/5000K)
• Innovative optic swap capability under door frame and latch design for quick, tool-free lens change
• Two lenses in the box: Type III installed, Type V included
• Type II and Type IV lenses sold separately. See below for details
• Heavy-duty, die-cast aluminum housing with ample heat sinking
• Low-profile design delivers high-performance illumination and improves application site aesthetics
• True U0 design for dark sky friendly performance that eliminates undesirable sky glow
• Integrated NEMA/ANSI C126.10 3-pin twist-lock receptacle with shorting cap. Compatible with KT-TLP-UV-3PN, 120-277V photocell
• Two easy to use mounting options available (sold separately): slip fitter mount and adjustable pole mount for square and round poles.
• Keystone 0-10V dimming driver with 6kV surge protection
• Ambient operating temperature: −40°C/−40°F to 50°C/122˚F
• UL Certified; IP65 rated
• Power factor: > 0.95
• THD: < 20%
• LED chip lifetime: L70 > 100,000 hrs @ 25C°/77°F ambient fixture temperature
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
