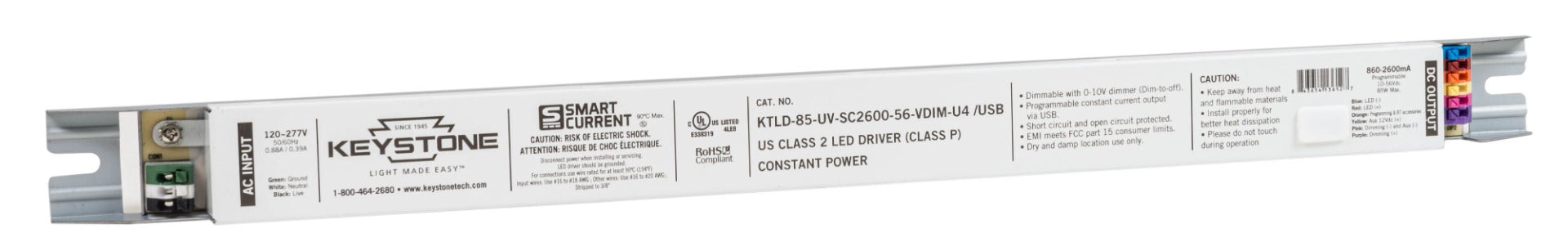

Keystone KTLD-85-UV-SC2600-56-VDIM-U4/USB 85-Watt Constant Current Programmable Output LED Driver
Keystone KTLD-85-UV-SC2600-56-VDIM-U4/USB 85-Watt Constant Current Programmable Output LED Driver
Specifications
Specifications
| Part Number# | KTLD-85-UV-SC2600-56-VDIM-U4 /USB |
|---|---|
| Wattage: | 85 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, FCC Compliant, ROHS, UL Listed |
| Dimensions: | 16.89" x 1.18" x 1" |
| Width: | 1.18" |
| Length: | 16.89" |
| Height: | 1" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | Emergency Driver |
Details
Details
ShineRetrofits Input:
Keystone's 85-watt constant current LED driver is equipped with advanced features for optimal performance. It includes a built-in USB-C port for easy programming and meets FCC Part 15 Class B consumer limits, ensuring compliance and safety. The driver offers short circuit overload and open load protection, along with dimming capabilities down to 1% with a 0-10V dimmer. Operating within a temperature range of -20°C/-4°F to 50°C/122°F, it also provides auxiliary power of 12Vdc and supports programmable output current via USB-C cable and an Android device.
Features:
• Built-in USB-C Port for easy programming
• Meets FCC Part 15 (Class B) consumer limits
• Short circuit overload and open load protection
• Dimmable with 0 –10V dimmer (down to 1% at max. output current)
• Auxiliary Power: 12Vdc; 200mA Max.
• THD: < 20%
• –20°C/–4°F to 50°C/122°F Operating Temperature
• 90°C/194°F maximum case temperature
• Input frequency: 50/60 Hz
• Programmable output current via USB-C cable and an Android device (plus Keystone app)
• Class A Sound Rating
