Keystone KTLD-60-UV-12V Constant Voltage LED Driver 60W Max 12V Output
Keystone KTLD-60-UV-12V Constant Voltage LED Driver 60W Max 12V Output
Specifications
Specifications
| Part Number# | KTLD-60-UV-12V |
|---|---|
| Wattage: | 60 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, UL Listed |

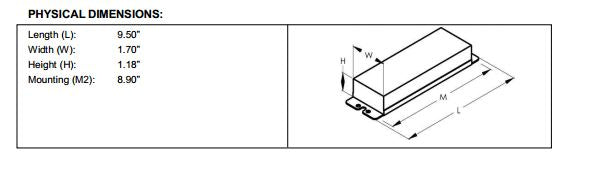

| Dimensions: | 9.50" x 1.70" x 1.18" |
| Width: | 1.70" |
| Length: | 9.50" |
| Height: | 1.18" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | 12V |
| Weight Each: | 2.31 lbs |
| Manufacturer: | Keystone Technologies |
| Technology: | Emergency Driver |
Details
Details
ShineRetrofits Input:
Keystone KTLD-60-UV-12V Constant Voltage LED Driver is a dependable power source for LED applications, delivering a maximum power output of 60W with an output voltage of 12Vdc. This driver includes overcurrent and short circuit protection, making it suitable for both dry and damp locations as a Type 1 outdoor component. It operates within an input voltage range of 120-277Vac ± 10% and a frequency of 50/60 Hz. The KTLD-60-UV-12V is listed in the Sign Component Manual (SAM) and comes with a 5-year warranty, ensuring long-term reliability and performance.
Product Features:
• Meets FCC Part 15 Class B (Consumer Limit) at 120V Input and Class A (Non-Consumer Limit) at 277V Input
• Over Current and Short Circuit Protection
• Type 1 Outdoor, Suitable for Dry and Damp Locations
• UL 879, UL 8750 Recognized Component LED Power Unit and Signage Application
• Class 2 Output
• 90ºC/194ºF Maximum Case Temperature
• Input Frequency: 50/60 Hz
• Listed in the Sign Component Manual (SAM)

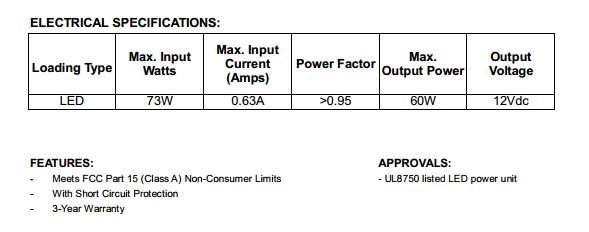

Product Specifications:
• DRIVER TYPE: Constant Voltage LED Driver
• MAX. POWER: 60W
• INPUT VOLTAGE: 120-277Vac ±10%
• OUTPUT VOLTAGE: 12Vdc
• DIMMING: Fixed Output
• WARRANTY: 5 Years
