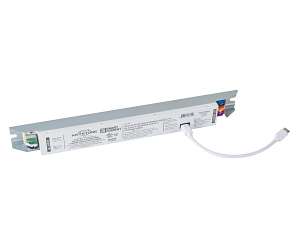

Keystone KTLD-50-UV-SC1400-56-VDIM-U7/USB 50-Watt Constant Current Programmable Output LED Driver
Keystone KTLD-50-UV-SC1400-56-VDIM-U7/USB 50-Watt Constant Current Programmable Output LED Driver
Specifications
Specifications
| Part Number# | KTLD-50-UV-SC1400-56-VDIM-U7-USB |
|---|---|
| Wattage: | 50 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, FCC Compliant, ROHS, UL Listed |
| Dimensions: | 11.02" x 1.2" x 1" |
| Width: | 1.2" |
| Length: | 11.02" |
| Height: | 1" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | Emergency Driver |
Details
Details
ShineRetrofits Input:
Keystone's 50-watt constant current LED driver is a versatile solution featuring programmable output and a built-in USB-C port for effortless configuration. It complies with FCC Part 15 Class B consumer limits and includes protections for short circuit, overload, and open load conditions. Compatible with 0-10V dimmers, it offers smooth dimming down to 1% at maximum output current. Its programmable output current, configurable via a USB-C cable and an Android device, adds exceptional flexibility and efficiency to your lighting projects.
Features:
• Built-in USB-C Port for easy programming
• Meets FCC Part 15 (Class B) consumer limits
• Short circuit overload and open load protection
• Dimmable with 0 –10V dimmer (down to 1% at max. output current)
• Auxiliary Power: 12Vdc; 200mA Max.
• THD: < 20%
• –20°C/–4°F to 50°C/122°F Operating Temperature
• 90°C/194°F maximum case temperature
• Input frequency: 50/60 Hz
• Programmable output current via USB-C cable and an Android device (plus Keystone app)
• Class A Sound Rating
