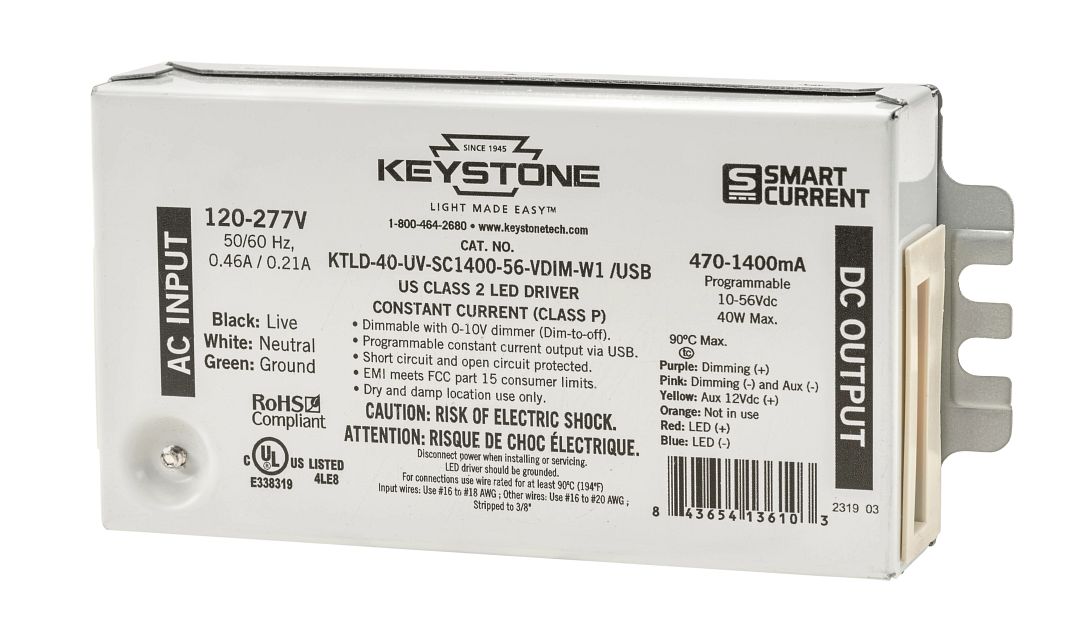

Keystone KTLD-40-UV-SC1400-56-VDIM-W1/USB 40-Watt Constant Current Programmable Output LED Driver
Keystone KTLD-40-UV-SC1400-56-VDIM-W1/USB 40-Watt Constant Current Programmable Output LED Driver
Specifications
Specifications
| Part Number# | KTLD-40-UV-SC1400-56-VDIM-W1-USB |
|---|---|
| Wattage: | 40 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, FCC Compliant, ROHS, UL Listed |
| Dimensions: | 5" x 2.38" x 1" |
| Width: | 2.38" |
| Length: | 5" |
| Height: | 1" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | Emergency Driver |
Details
Details
ShineRetrofits Input:
Keystone KTLD Series features a built-in USB-C port, making programming simple and convenient using an Android device with the Keystone app. It complies with FCC Part 15 (Class B) consumer limits and includes protection against short circuits, overloads, and open loads. Additionally, it is dimmable with a 0-10V dimmer, allowing for precise adjustments down to 1% of maximum output current, while maintaining a total harmonic distortion (THD) of less than 20%. Designed for durability, it operates in temperatures ranging from –40°C/–40°F to 60°C/140°F, with a maximum case temperature of 90°C/194°F and operates on a 60 Hz input frequency.
Features:
• Built in USB-C Port for easy programing
• Meets FCC Part 15 (Class B) consumer limits
• Short circuit overload and open load protection
• Dimmable with 0 –10V dimmer (down to 1% at max. output current)
• Auxiliary Power: 12Vdc; 200mA Max.
• THD: < 20%
• –20°C/–4°F to 50°C/122°F Operating Temperature
• 90°C/194°F maximum case temperature
• Input frequency: 50/60 Hz
• Programmable output current via USB-C cable and an Android device (plus Keystone app)
• Class A Sound Rating
