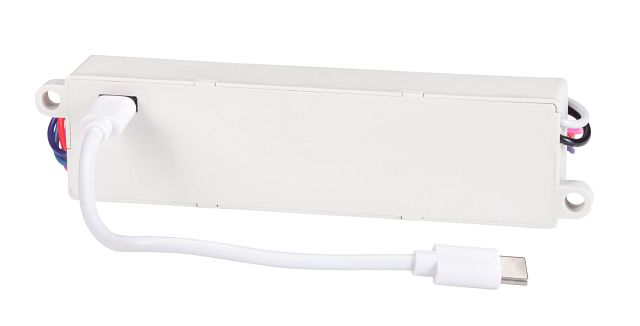

Keystone KTLD-20-UV-SC730-56-VDIM-AF4 /USB 20-Watt Constant Current Programmable Output LED Driver
Keystone KTLD-20-UV-SC730-56-VDIM-AF4 /USB 20-Watt Constant Current Programmable Output LED Driver
Specifications
Specifications
| Part Number# | KTLD-20-UV-SC730-56-VDIM-AF4-USB |
|---|---|
| Wattage: | 20 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, FCC Compliant, ROHS, UL Listed |
| Dimensions: | 5.53" x 1.3" x 0.83" |
| Width: | 1.3" |
| Length: | 5.53" |
| Height: | 0.83" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | Emergency Driver |
Details
Details
ShineRetrofits Input:
Keystone's 20-watt constant current programmable output LED driver with advanced features for enhanced performance and ease of use. Its built-in USB-C port allows seamless programming through an Android device using the Keystone app, providing a highly customizable experience. Designed for reliability, it offers short circuit, overload, and open load protection, operates efficiently across a wide temperature range of –40°C to 60°C, and meets FCC Part 15 Class B consumer limits. With 0–10V dimming capability down to 1% and a Class A sound rating, this driver ensures smooth, quiet, and precise lighting control.
Features:
• Built-in USB-C Port for easy programming
• Meets FCC Part 15 (Class B) consumer limits
• Short circuit overload and open load protection
• Dimmable with 0 –10V dimmer (down to 1% at max. output current)
• THD: < 20%
• –40°C/–40°F to 60°C/140°F operating temperature
• 90°C/194°F maximum case temperature
• Input frequency: 60 Hz
• Programmable output current via USB-C cable and an Android device (plus Keystone app)
• Class A Sound Rating
