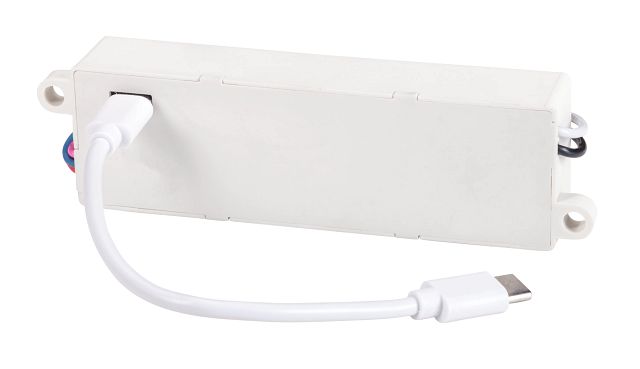

Keystone KTLD-12-UV-SC500-56-VDIM-AF1/USB 12-Watt Constant Current Programmable Output LED Driver
Keystone KTLD-12-UV-SC500-56-VDIM-AF1/USB 12-Watt Constant Current Programmable Output LED Driver
Specifications
Specifications
| Part Number# | KTLD-12-UV-SC500-56-VDIM-AF1-USB |
|---|---|
| Wattage: | 12 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, FCC Compliant, ROHS, UL Listed |
| Dimensions: | 4.89" x 1.3" x 0.79" |
| Width: | 1.3" |
| Length: | 4.89" |
| Height: | 0.79" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | Emergency Driver |
Details
Details
ShineRetrofits Input:
Keystone's 12-watt constant current LED driver features a built-in USB-C port for easy programming and dimmable capabilities down to 1% with a 0-10V dimmer. It meets FCC Part 15 Class B consumer limits and provides short circuit overload and open load protection, ensuring safe and reliable operation. The driver operates within a temperature range of -40°C/-40°F to 60°C/140°F and supports programmable output current via USB-C cable and an Android device, making it a versatile and efficient choice for various lighting applications.
Features:
• Built-in USB-C Port for easy programming
• Meets FCC Part 15 (Class B) consumer limits
• Short circuit overload and open load protection
• Dimmable with 0 –10V dimmer (down to 1% at max. output current)
• THD: < 20%
• –40°C/–40°F to 60°C/140°F operating temperature
• 90°C/194°F maximum case temperature
• Input frequency: 60 Hz
• Programmable output current via USB-C cable and an Android device (plus Keystone app)
• Class A Sound Rating
